Page 2

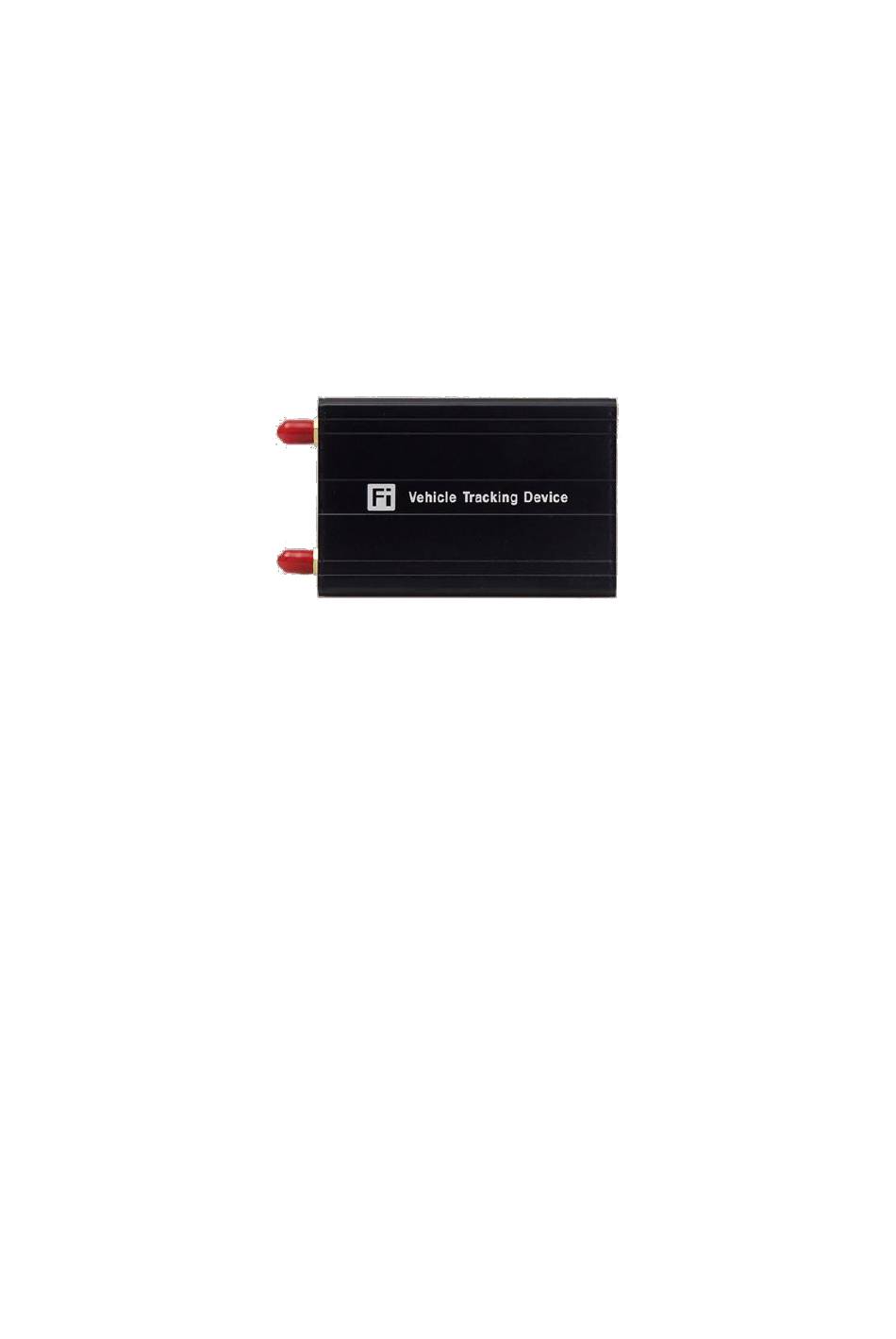

A500G USER GUIDE Copyright and Disclaimer All copyrights belong to Shenzhen fifotrack Solution Co., Ltd. You are not allowed to revise, copy or spread this file in any form without consent of fifotrack. is trademark of fifotrack, protected by law.
Page 5
A500G to have powerful functions such as photographing, driver identification and management, impulse detection and temperature monitoring. Besides the advanced functions, A500G has full functions to cover the normal demands of vehicle tracking. Not only fuel monitoring, harsh acceleration/braking alarm, driving behavior analysis, but also has custom digital input, jamming detection, two-way calling and OTA function.
Page 10
8 First Use 8.1 Charging First time use A500G, please connect positive wire(+ Red) and ground wire(-black) to 12V or 24V external power supply, charging device for at least 2 hours, 3 hours is suggested. Before installation, ensure all of the parameters setting and test are finished.
Page 14
Refer to <USB CABLE DRIVER INSTALLATION GUIDE> if need. Connect A500 to PC with USB cable. Run “fifotrack Parameter Tool” software which will identify port automatically and read all of the current parameters.
Page 17
A500G USER GUIDE 9.3 Positive/Negative Digital Input (IN1/IN2/IN3/IN4) 9.4 Analog Input (AD) A500G supports 3 AD input, whose voltage range: AD1: 0~6V AD2: 0~12V AD3: 0~12V Calculation formula: AD1 Voltage=(AD1)*3300*2/4096 AD2 Voltage=(AD2)*3300*62/(4096*15) AD3 Voltage=(AD3)*3300*62/(4096*15) Note:Original AD value is in hexadecimal. Convert it to decimal first, and then use the formula.
