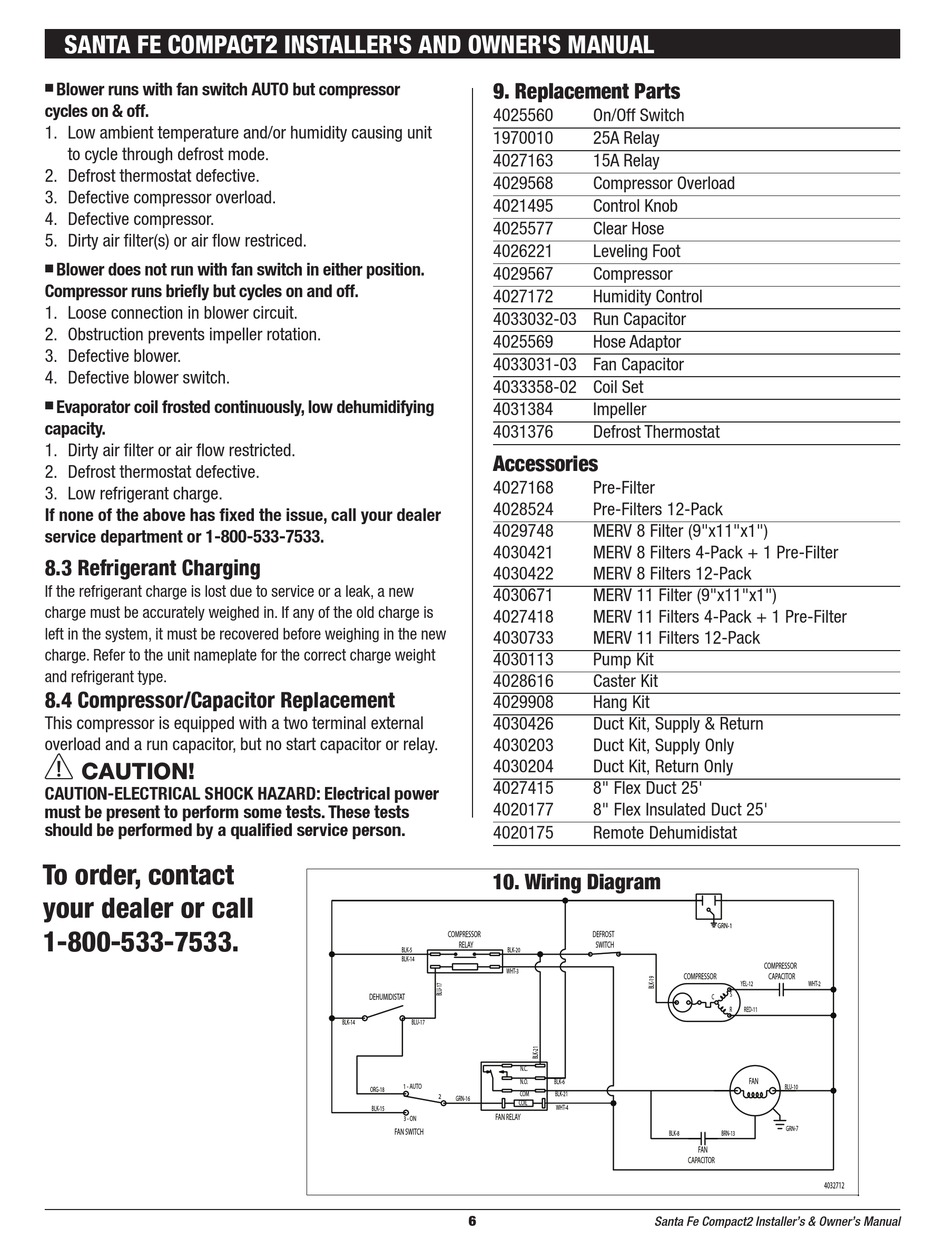

SANTA FE COMPACT2 INSTALLER'S AND OWNER'S MANUAL
Blower runs with fan switch AUTO but compressor
n
cycles on & off.
1. Low ambient temperature and/or humidity causing unit
to cycle through defrost mode.
2. Defrost thermostat defective.
3. Defective compressor overload.
4. Defective compressor.
5. Dirty air filter(s) or air flow restriced.
Blower does not run with fan switch in either position.
n
Compressor runs briefly but cycles on and off.
1. Loose connection in blower circuit.
2. Obstruction prevents impeller rotation.
3. Defective blower.
4. Defective blower switch.
Evaporator coil frosted continuously, low dehumidifying
n
capacity.
1. Dirty air filter or air flow restricted.
2. Defrost thermostat defective.
3. Low refrigerant charge.
If none of the above has fixed the issue, call your dealer
service department or 1-800-533-7533.

8.3 Refrigerant Charging

If the refrigerant charge is lost due to service or a leak, a new
charge must be accurately weighed in. If any of the old charge is
left in the system, it must be recovered before weighing in the new
charge. Refer to the unit nameplate for the correct charge weight
and refrigerant type.

8.4 Compressor/Capacitor Replacement

This compressor is equipped with a two terminal external
overload and a run capacitor, but no start capacitor or relay.
CAUTION!
CAUTION-ELECTRICAL SHOCK HAZARD: Electrical power
must be present to perform some tests. These tests
should be performed by a qualified service person.
To order, contact
your dealer or call
1-800-533-7533.
9. Replacement Parts
4025560
1970010
4027163
4029568
4021495
4025577
4026221
4029567
4027172
4033032-03 Run Capacitor
4025569
4033031-03 Fan Capacitor
4033358-02 Coil Set
4031384
4031376
Accessories
4027168
4028524
4029748
4030421
4030422
4030671
4027418
4030733
4030113
4028616
4029908
4030426
4030203
4030204
4027415
4020177
4020175

10. Wiring Diagram

COMPRESSOR
RELAY
BLK-5 BLK-20
BLK-14
WHT-3
DEHUMIDISTAT
BLU-17
BLK-14
N.C.
N.O.
1 - AUTO
ORG-18
COM
2
GRN-16
COIL
BLK-15
FAN RELAY
3 - ON
FAN SWITCH
6
On/Off Switch
25A Relay
15A Relay
Compressor Overload
Control Knob
Clear Hose
Leveling Foot
Compressor
Humidity Control
Hose Adaptor
Impeller
Defrost Thermostat
Pre-Filter
Pre-Filters 12-Pack
MERV 8 Filter (9"x11"x1")
MERV 8 Filters 4-Pack + 1 Pre-Filter
MERV 8 Filters 12-Pack
MERV 11 Filter (9"x11"x1")
MERV 11 Filters 4-Pack + 1 Pre-Filter
MERV 11 Filters 12-Pack
Pump Kit
Caster Kit
Hang Kit
Duct Kit, Supply & Return
Duct Kit, Supply Only
Duct Kit, Return Only
8" Flex Duct 25'
8" Flex Insulated Duct 25'
Remote Dehumidistat
GRN-1
DEFROST
SWITCH
COMPRESSOR
S
C
R
BLK-6
BLK-21
WHT-4
BLK-8 BRN-13
FAN
CAPACITOR
Santa Fe Compact2 Installer's & Owner's Manual
COMPRESSOR
CAPACITOR
YEL-12 WHT-2
RED-11
FAN
BLU-10
GRN-7
4032712
