ADVANCE SERIES | ADVANCE90
Installation & Operation Instructions

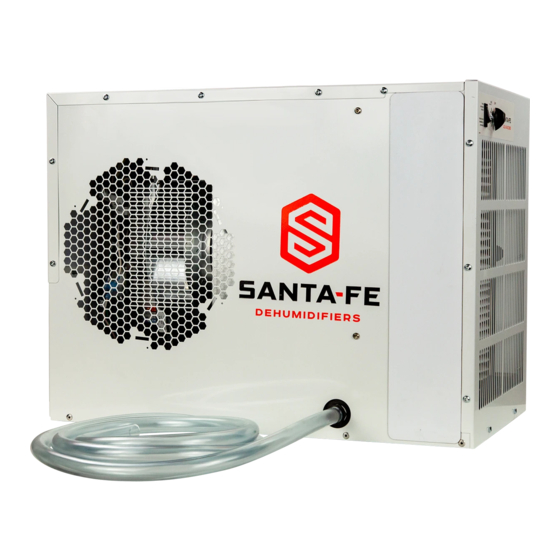

The Santa Fe Advanc90 has a horizontal
configuration and unique dual airflow
outlets that make it an ideal solution for
basements and crawl spaces. Installation
flexibility makes the unit ideal for almost any
application. No conventional dehumidifier
can perform as efficiently and effectively
in basements and crawl spaces as the
Santa Fe Advance90.
Santa-Fe-Products.com | 800.533.7533
Part Number
4034180
Serial Number
Install Date
Sold By
Patent Pending
Dual-Air Distribution
TS-1088 6/18 Rev A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Santa Fe Advance 90
Summary of Contents for Santa Fe Advance 90
- Page 1 ADVANCE SERIES | ADVANCE90 Installation & Operation Instructions Patent Pending Dual-Air Distribution The Santa Fe Advanc90 has a horizontal Part Number 4034180 configuration and unique dual airflow Serial Number outlets that make it an ideal solution for Install Date basements and crawl spaces. Installation...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ..................3 Intended Applications ................3 Registrations ....................3 Specifications ..................4 Dehumidifier Set Up .................5 Items Included In Box.................5 Important Precautions ................5 Location Considerations ................5 Installing Leveling Feet ................5 Ducting to Finished Areas (Optional) ............6 Attaching Duct Collars ................6 Recommended Installations ..............7 Drain Installation ..................8 Operation ....................9... -
Page 3: Safety Instructions
• No user serviceable components. Contact installer or call 1-800-533-7533 for all repair or warranty needs. Intended Application(s) The Santa Fe Advance90 is intended for use in crawl spaces or basements: however, the unit can be placed in almost any residential setting where dehumidification is desired. Use in non-residential applications and pool areas may void warranty. -
Page 4: Specifications
4036695 Hang Kit 4033039 Duct Kit, Supply Only 4035646 Duct Kit, Return Only 4026969 10" Flex Duct 25' 4022126 10" Flex Insulated Duct 25' 4020175 Remote Dehumidistat FRONT FRONT BACK Santa Fe Advance90 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533... -
Page 5: Dehumidifier Set Up
Important Precautions • Do not install the Santa Fe Advance90 with the intake or exhaust of the unit within 1' of a wall or other obstruction. Avoid directing the discharge air at people. The dehumidifier should be used in the upright position. -
Page 6: Ducting To Finished Areas (Optional)
Two 10" diameter duct collars attach to the outlets on each side of the unit. They can be attached to one exhaust outlet or both exhaust outlets. Use the included duct plate to block off one of the outlets if needed. Front View Output of Dehumidified Air Input of Humid Air Santa Fe Advance90 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533... -
Page 7: Recommended Installations
Dehumidistat (mounts on Duct Work opposite wall in finished area) • Place the Santa Fe Advance90 in the unfinished area of the basement, near a drain access (condensate • Place the Santa Fe Advance90 in the unfinished area will drain via gravity or with an optional pump kit). -
Page 8: Drain Installation
The pitch/slope of the drain pipe should be no less than 1 inch per 10 feet of drain pipe. An optional condensate pump kit is available for use with the Santa Fe Advance90 and may be installed if lift is required to dispose of condensate. -
Page 9: Operation

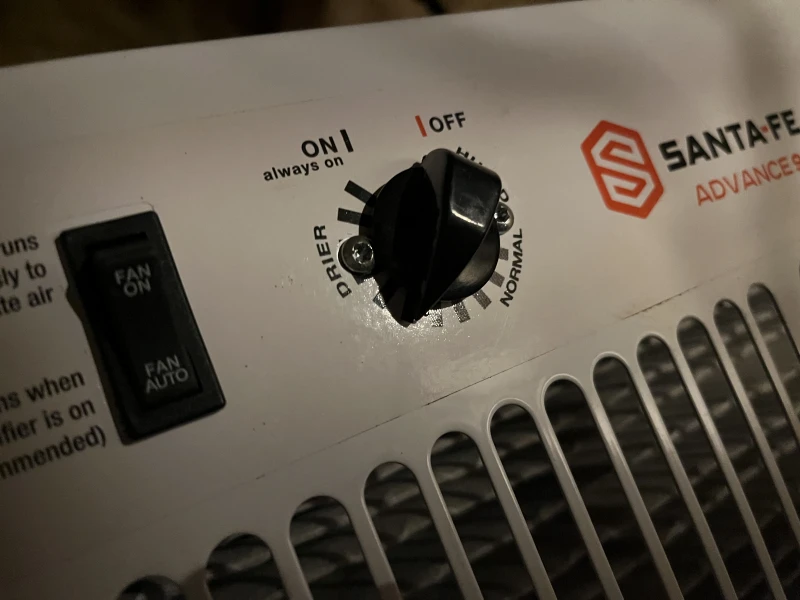

This function is desirable if the unit is used for air circulation or filtration. Turning the fan switch to “FAN AUTO” will cause the unit’s internal blower to run only while the unit is dehumidifying. 800.533.7533 | Santa-Fe-Products.com Santa Fe Advance90 Installation & Operation Instructions... -
Page 10: Air Filtration
Air Filtration The Santa Fe Advance90 is equipped with MERV-13 air filter. An optional MERV-8 or MERV-11 filter is available at www.ThermastorFilters.com. The filters should be checked and replaced every three to six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency. -
Page 11: Merv Rating Chart
Washable - Aluminum Mesh. <20% 70-75% Dust Mites Residential Sanding Dust <20% 65-70% Spray Paint Dust Electrostatic - Self charging Textile Fibers Window A/C Units woven panel filter. <20% <65% Carpet Fibers http://www.mechreps.com/PDF/Merv_Rating_Chart.pdf 800.533.7533 | Santa-Fe-Products.com Santa Fe Advance90 Installation & Operation Instructions... -
Page 12: Electrical Requirements
The unit should not be used in areas prone to flooding. Consult local electrical codes for any further information. An optional remote dehumidistat is available for use with the Santa Fe Advance90 and is to be located remotely from the dehumidifier. -
Page 13: Service
Service WARNING! SERVICING THE SANTA FE ADVANCE90, WITH ITS HIGH PRESSURE REFRIGERANT SYSTEM AND HIGH VOLTAGE CIRCUITRY PRESENTS A HEALTH HAZARD WHICH COULD RESULT IN DEATH, SERIOUS BODILY INJURY, AND/OR PROPERTY DAMAGE. ONLY QUALIFIED SERVICE PEOPLE SHOULD SERVICE THIS UNIT. - Page 14 7. Collecting the water removed in a 24 hour period will give a measurement of performance. Santa Fe Advance90 Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533...
-
Page 15: Warranty
Warranty Limited Warranty. Therma-Stor, LLC (“Therma-Stor”) warrants as follows: (i) the Santa Fe Advance90 dehumidifier (“Product”) will be free of material defects in workmanship or materials for a period of 2 years (“Two-Year Warranty”) following the date of initial purchase of such Product by an original customer purchasing from Therma-Stor or an authorized reseller (“Customer”);... - Page 16 D E H U M I D I F I E R S Santa-Fe-Products.com 800.533.7533...
