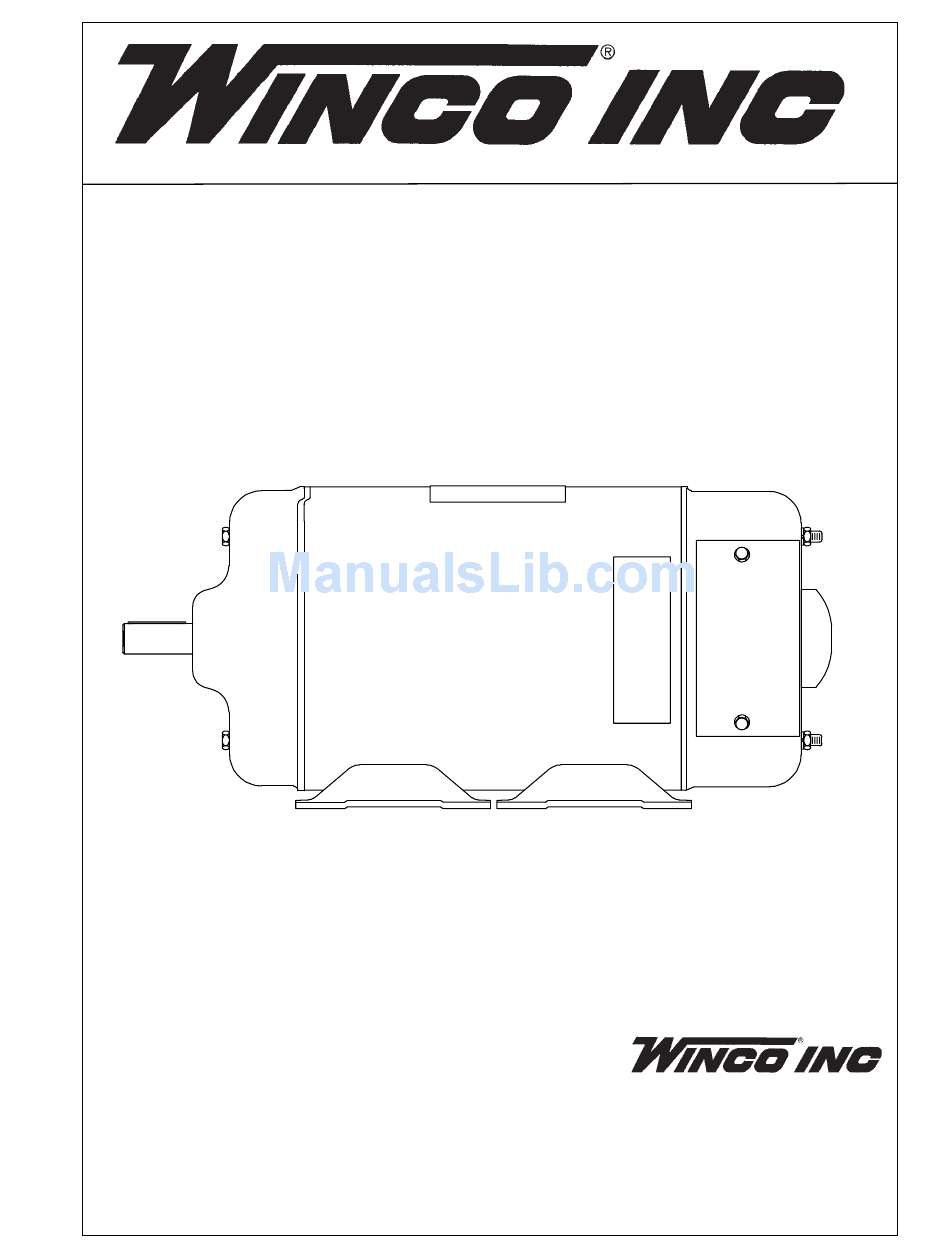

  • Page 1 2FS Generators INSTALLATION AND OPERATORS MANUAL 2000 Watt Belt Drive 225 S. CORDOVA AVE LE CENTER MN 56057 507-357-682 SERVICE DEPARTMENT 507-357-683 www.wincogen.com 2095-0 60706-230...
  • Page 2 The warranty listed in the manual describes should ever need to contact us on this unit it will help what you can expect from WINCO should you need us to respond to your needs faster. service assistance in the future.

  • Page 3: Safety Information

    SAFETY INFORMATION 2. FIRE HAZARD Gasoline and other fuels pres- ent a hazard of possible explosion and/or fire. This engine generator set has been designed and a. Do not refuel when the engine is running or manufactured to allow safe, reliable performance. hot. Poor maintenance, improper or careless use can b.

  • Page 4: Unit Capabilities

    TESTING POLICY AMPS STARTING AMPS RUNNING Before any generator is shipped from the factory, it is fully checked for performance. The generator is 16 to 22 6 to 13 5 to 8 loaded to its full capacity, and the voltage, current 22 to 32 9 to 18 7 to 12...

  • Page 5: Preparing The Unit

    PREPARING THE UNIT produces more power at higher speeds, less when slowed. The prime mover must be run fast enough to reach the desired horsepower for good generator UNPACKING operation. CAUTION: EQUIPMENT DAMAGE The drive belt system must be of adequate size and must be tight enough to power the generator without When you unpack your new generator be sure to slippage.
  • Page 6 CAUTION: EQUIPMENT DAMAGE The normal slight variations in speed also directly affect the frequency of the output current. This Always allow the generator and prime mover to cool frequency variation has no appreciable effect in the before covering with a flammable weather covering. operation of most loads (such as motors, lights and most small appliances).
  • Page 7 ELECTRICAL TESTING MAINTENANCE TESTING COILS FOR OPENS AND GROUNDS GENERAL 1. Disconnect field leads from rectifier. The main components of the generator are: field 2. Set multi-meter to read resistance, and connect frame, field coils, armature, brushes. brush holder the meter leads to the field leads. If field is open, assembly, brackets, armature, and generator cooling meter will read infinite resistance (very high ohms), fan. repair or replace field if it is open. Typical resistance for these fields varies from 12.8 to 14.1 ohms. BRUSHES 3. Leaving one meter lead connected to the field, Under ordinary circumstances brushes will operate connect the other meter lead to the field shell. If for thousands of hours without requiring replace- meter indicates continuity (any reading - should be...
  • Page 8 TESTING ARMATURE FOR OPENS AND TESTING RECTIFIERS GROUNDS The field excitation is supplied through full wave . Remove all brushes. bridge rectifier. This type of rectifier has four termi- 2. Ground fault test. Set milti-meter to read high nals: two AC and a DC positive (+) and DC negative resistance (mega-ohms). Holding one meter lead (-).

  • Page 9: Troubleshooting Chart

    TROUBLESHOOTING CHART SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION No output or low voltage. . Open or shorted armature. . Replace armature. 2. Open or grounded field coil(s). 2. Replace field coil(s). 3. Generator operating below 3. Generator must be operated at correct RPM speed. 3600 RPM +/- 90 RPM for proper 4.

  • Page 10: Illustrated Parts List

    ILLUSTRATED PARTS LIST REF # PART NUMBER DESCRIPTION 20556-002 # 0-32 Thru Bolt 8929-000 End Bracket 7924-000 Baffle 6689-000 Field Shell & Base Assy. 6394-008 Hot Surface Decal 53644-000 Screw 6427-000 Output Shaft End Bracket 6372-000 Hex Nut 23607-000 AC Brush 59690-000 AC Brush Holder 60928-000...
  • Page 11 WIRING DIAGRAM 2FS WITH “Q” WINDING WIRING DIAGRAM 2FS WITHOUT “Q” WINDING 2095-0 60706-230...

  • Page 12: Month Limited Warranty
