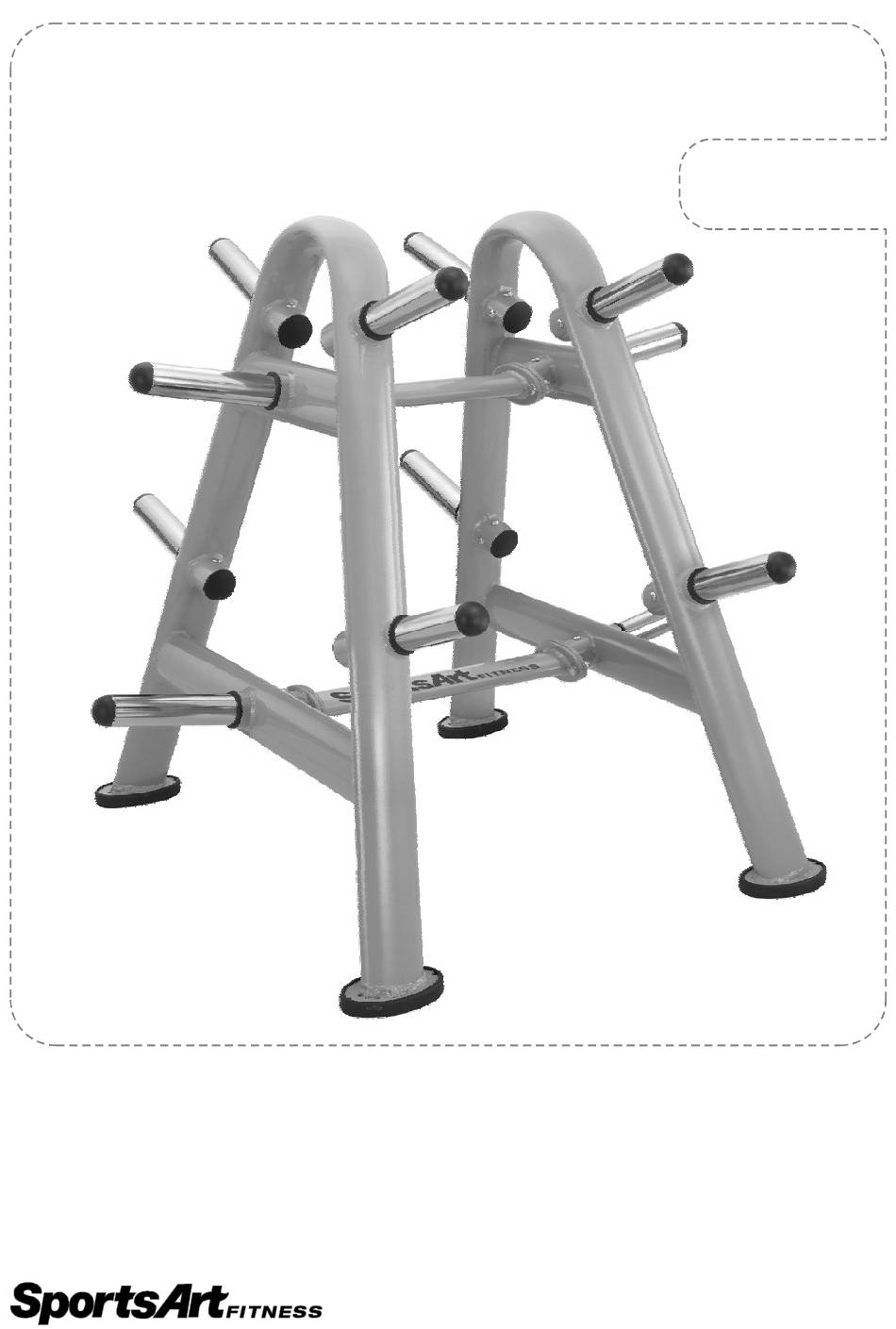

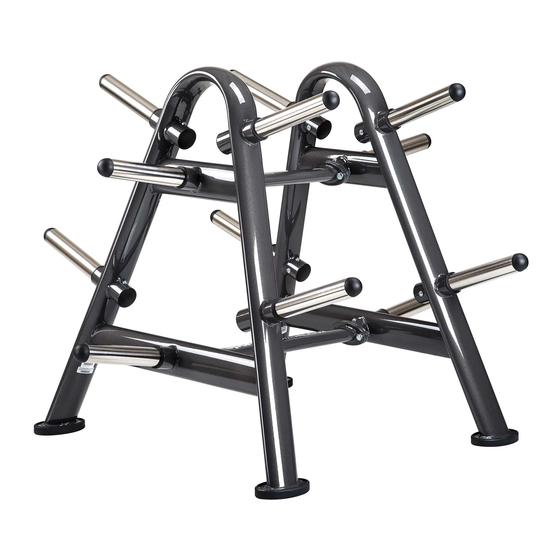

  • Page 1 A902 OWNER'S MANUAL ASSEMBLY INSTRUCTIONS LYMPIC LATE...
  • Page 2: Safety Instructions

    A. SAFETY INSTRUCTIONS ˙ Read all cautions/warnings and obtain proper instruction on use of the machines prior to using. Use appropriate positioning and controlled movements. ˙ Assemble and operate the machine on a solid, level surface. DO NOT use outdoors or near water. ˙...
  • Page 3 B. INTRODUCTION Weight plate rod Plastic stopper Upper connector End cap Main frame Lower connector Foot pad...
  • Page 4: List Of Parts

    C. LIST OF PARTS 1. One L Shaped, M5 hex wrench 2. One L Shaped, M6 hex wrench 3. One double-end open wrench, 8mm and 17mm 4. Two main frames 5. One upper connector 6. One lower connector 7. Twelve weight plate rods...
  • Page 5: Assembly Instruction

    D. ASSEMBLY INSTRUCTION Weight plate rod installation (4 rods as shown) Step 1: Insert weight plate rod into the main frame. Step 2: Secure with screws provided. Step 3: Repeat step1-2 for installation of the other 3 weight plate rods. Notes: If end caps come loose during assembly, press them back in again.
  • Page 6 Connector installation: Step 1: Assemble the upper connector onto two leg frames by loosely securing the hardware. Step 2: Assemble the lower connector onto two leg frames by loosely securing the hardware. Step 3: Secure all hardware provided. Fig.2 Fig.3...
  • Page 7 Weight plate rod installation (the other 8 rods) Step 1: Insert weight plate rod into the main frame. Step 2: Secure with screws provided. Step 3: Repeat step1-2 for installation of 7 weight plate rods left. Notes: If end caps come loose during assembly, press them back in again. Fig.4...
