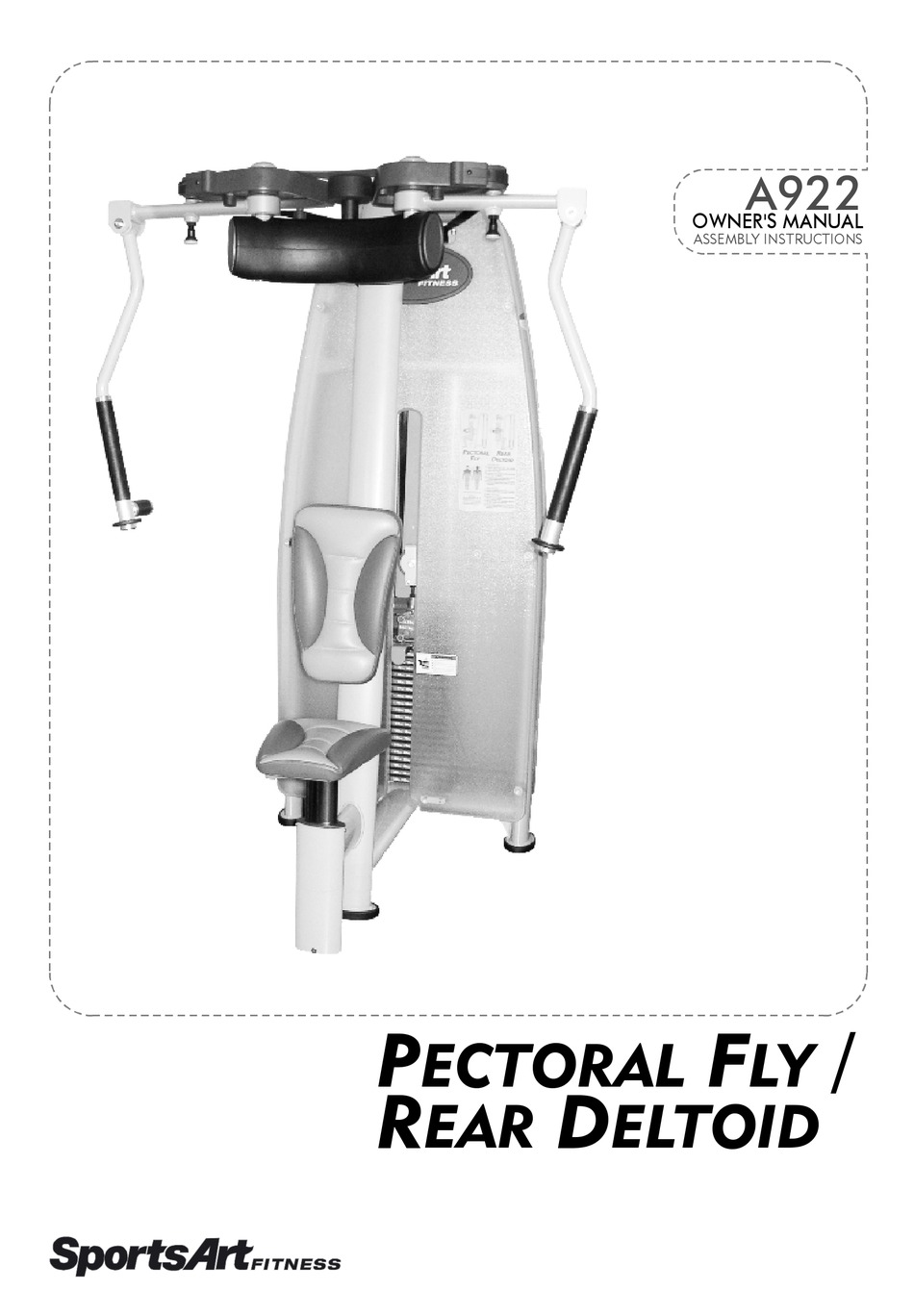

- Page 1 A922 OWNER'S MANUAL ASSEMBLY INSTRUCTIONS ECTORAL LY ELTOID...
-
Page 2: Safety Instructions
A. SAFETY INSTRUCTIONS ˙ Read all cautions/warnings and obtain proper instruction on use of the machines prior to using. Use appropriate positioning and controlled movements. Assemble and operate the strength on a solid, level surface. Do not use outdoors ˙ or near water. - Page 3 B. Introduction Rear cover Right CAM Badge Left CAM Swing arm Belt Frame Uaage sticker Front cover Selection pin (3.5 lbs /1.5 kgs) Selection pin (6.5 lbs / 3 kgs) Cord Back cushion Stack fork Weight stacks (11 lbs / 5 kgs) Seat pad adjustment handle Seat cushion...
- Page 4 C. List of Parts 1. One seat pad 2. Four hexagon socket raised head bolts M8 x L20 for seat cushion 3. Four spring washers M8 for seat cushion 4. One double-end open wrench 17mm x 23mm 5. One double-end open wrench 8mm x 17mm 6.
- Page 5 D. STEP BY STEP INSTRUCTION: 1. Fasten seat plate with screws provided. Fasten seat cushion in place with screws provided (item 2 & 3 as listed in parts list). (See Fig. 1 or 1-1) Fig.1 Fig.1-1 2. If the belt is too tight or too loose, loosen the nut A as shown in the diagram first, then adjust the nut B, if the belt length is too long, adjust downward;...
- Page 6 HOW TO USE THE MINOR WEIGHT STACK 1. To have a minor weight stack selection, insert the upper pin to add 3.5Lbs/1.5kgs or the lower pin to add 6.5Lbs/3kgs. 2. Pull the pin to release the minor weight stack. (See Fig. 3) (3.5Lbs/1.5kgs) (6.5Lbs/3kgs) Fig.3...
- Page 7 F. STORAGE TRAY ASSEMBLY: Place the storage tray (A) and bracket (B) onto the tubing as figure shown. Insert the screws and washers into the holes and tighten with nuts plus washers. (See Fig. 4) Fig.4...
- Page 8 Usage Instruction:...
