Summary of Contents for SportsArt Fitness A918

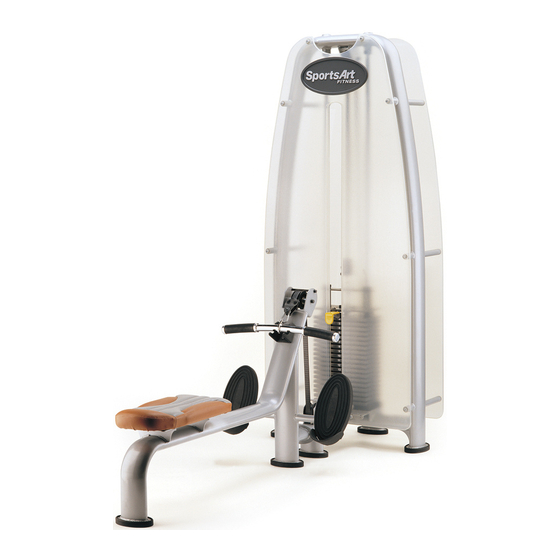

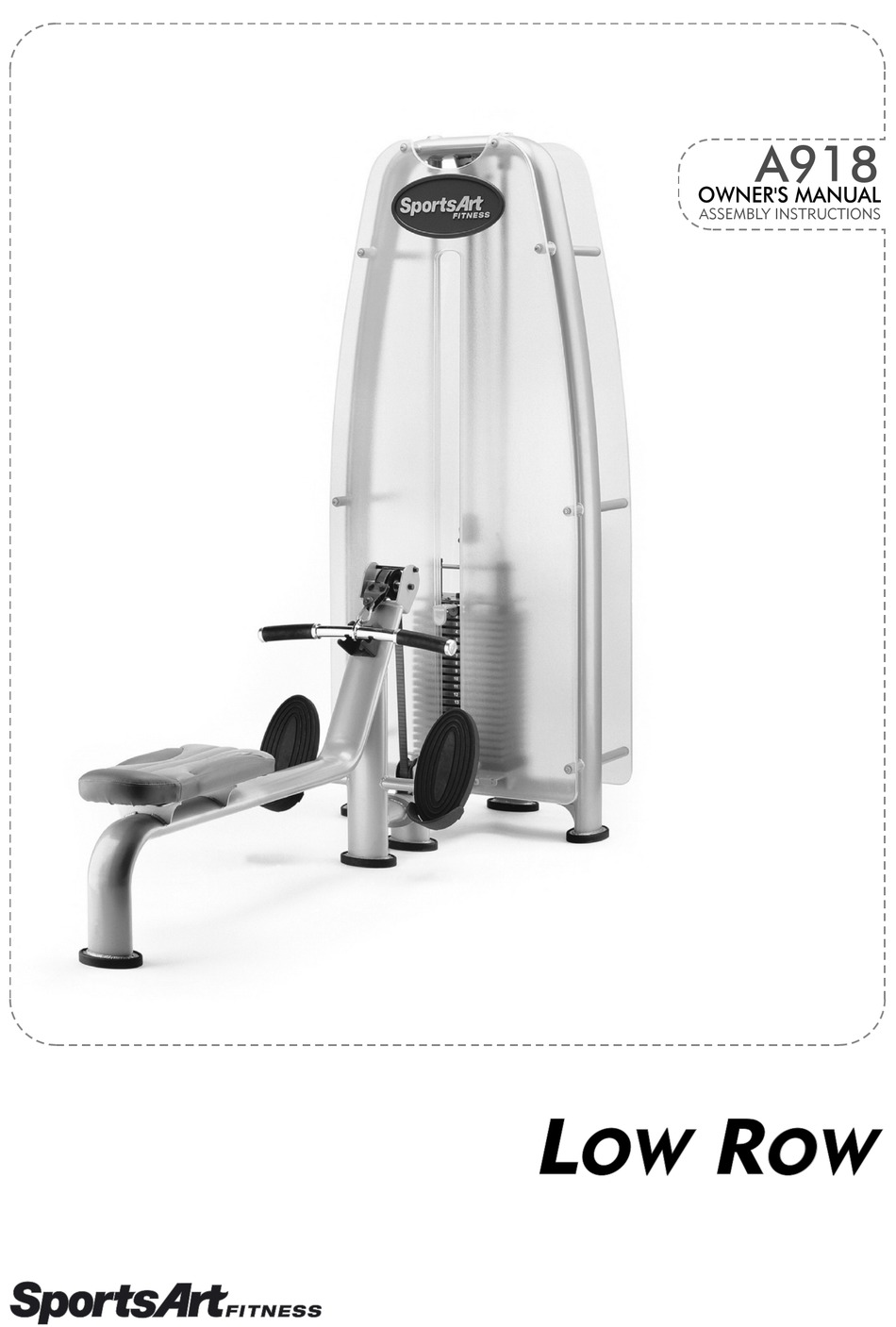

- Page 1 A918 OWNER'S MANUAL ASSEMBLY INSTRUCTIONS...
- Page 2 A. SAFETY INSTRUCTIONS Read all cautions/warnings and obtain proper instruction on use of the machines prior to using. Use appropriate positioning and controlled movements. Assemble and operate the strength on a solid, level surface. Do not use outdoors or near water. Never allow children on or near the strength.
- Page 3 B. Introduction Logo display board Back cover Side frame Front cover Cord Stack fork Grip Weight stack (11Lbs / 5kgs) Foot rest Belt Frame Foot pad Seat cushion...
- Page 4 C. List of Parts 1. One side frame 2. One seat cushion 3. One frame 4. One grip 5. Two hexagon head bolts M10 x P1.5 X L30 for the side frame and frame 6. Two spring washers M10 for the side frame and frame 7.
- Page 5 D. STEP BY STEP INSTRUCTION: 1. Tighten the seat cushion with the screws provided. (See Fig. 1) Fig.1 2. Assemble the frame with screws as shown in Fig 2. Fig.2...
- Page 6 3. Loosen the screws and take off the axle as shown in diagram A. Then place the belt as shown and secure the axle with screws as shown in diagram B. (See Fig.3) diagram diagram Fig.3 4. Assemble the grip with the hook as shown in the diagram. (See Fig.4) Fig.4...
- Page 7 E. BELT ADJUSTMENT: 1. If the belt is too tight or too loose, first loosen nut A as shown then adjust nut B. If the belt length is too long, adjust downward; if the belt length is too short, adjust upward.
- Page 8 Usage Instruction:...
