Egr (Exhaust Gas Recirculation) System (If Equipped) - Kubota L3540 Workshop Manual

L3540, L4240, L5040, L5240, L5740, WSM
2. EGR (EXHAUST GAS RECIRCULATION) SYSTEM (IF
EQUIPPED)
The EGR (Exhaust Gas Recirculation) system is used to lower the combustion temperature and efficiently cool
EGR gas, with the aim of reducing the Nox that is in the exhaust gas of diesel engine.
1-M2
ENGINE
(1) Boost Compensator
(2) Thermo Valve
(3) Exhaust Manifold
(4) Crankcase
(5) EGR Cooler
(6) EGR Valve
(7) Water Flange
(8) Inlet Manifold

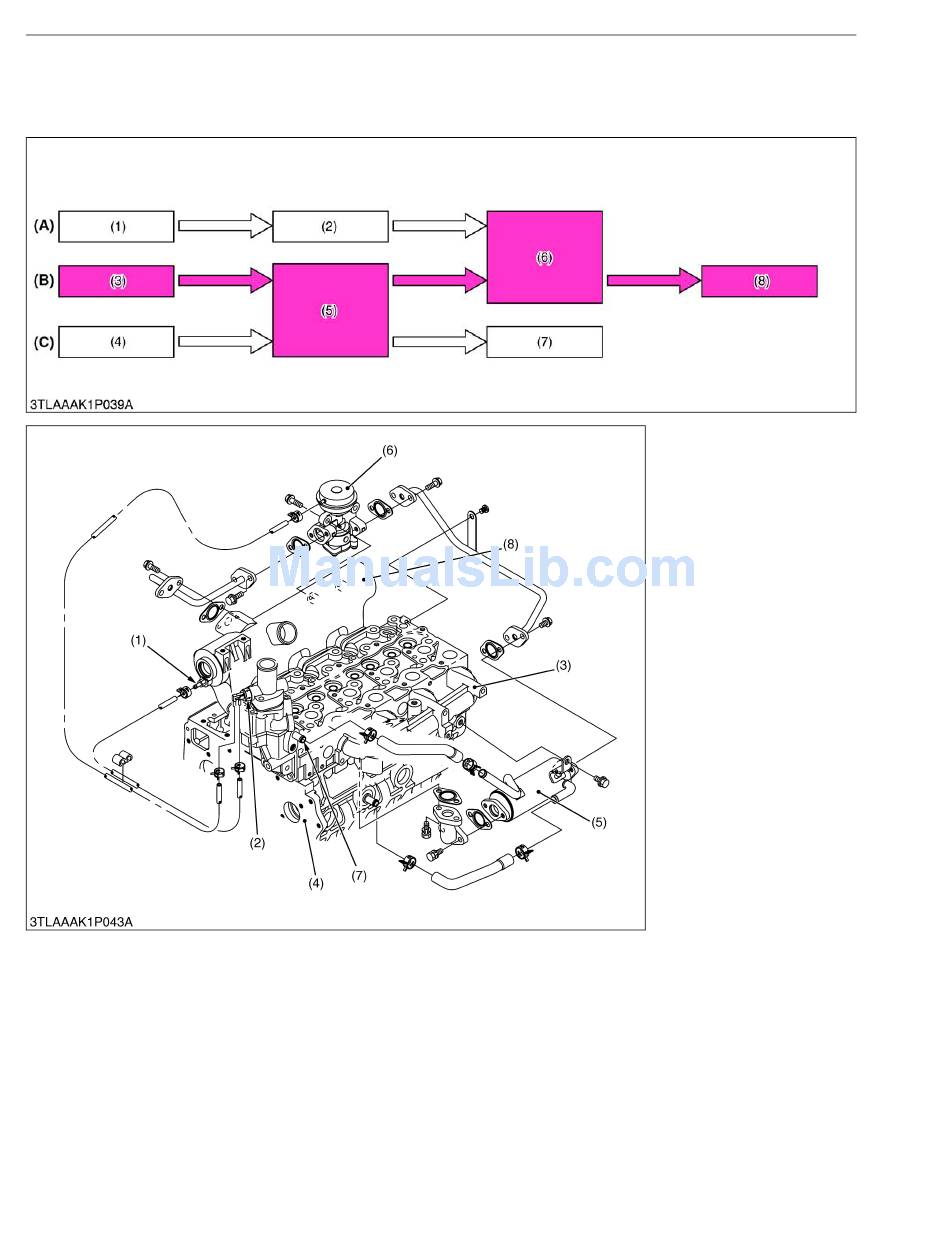

(A) Boost Pressure
(B) EGR Gas
(C) Coolant
W1014642
