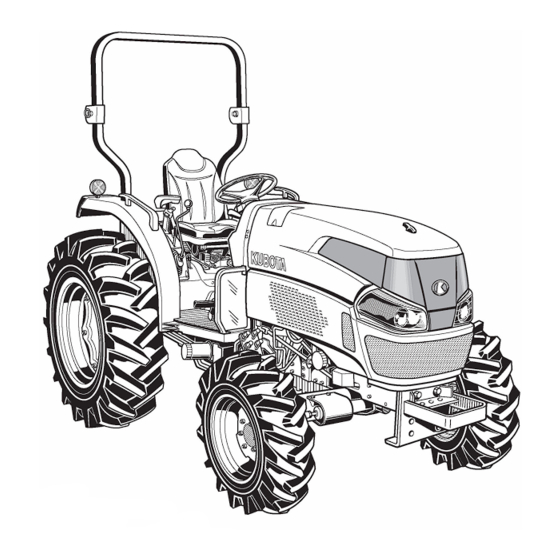

- Page 1 OPERATOR'S MANUAL MODELS L3240·L3540 L4240·L5240·L5740 with ROPS L4240·L5240·L5740 with CAB · · · · English (Australia) Code No. TD277-1974-1 READ AND SAVE THIS MANUAL PRINTED IN JAPAN © KUBOTA Corporation 2011...
- Page 2 Two Wheel Drive KUBOTA Corporation is ··· Four Wheel Drive American Petroleum Institute Since its inception in 1890, KUBOTA Corporation has grown to ASABE American Society of Agricultural and Biological Engineers, USA rank as one of the major firms in Japan.
- Page 3 For other information and instructions, refer to the separately issued operator's manual for the sister models. (L3240-3 to L5740-3) Please read both manuals carefully, to operate the machine properly and safety.
-
Page 4: Table Of Contents
CONTENTS SPECIFICATIONS....................... 1 SPECIFICATION TABLE [HST Type] ..............1 SPECIFICATION TABLE [Manual Transmission Type] ........... 3 TRAVELING SPEEDS ..................... 5 HST Type.......................... 5 Manual Transmission Type....................5 OPERATING THE TRACTOR ..................6 STARTING ....................... 6 Turn Signal / Hazard Light Switch ..................6 Horn Button........................ -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS SPECIFICATION TABLE [HST Type] [ROPS and CAB models] L3240 L3540 L4240 L5240 L5740 Model D1703-M-E2- D1803-M-E2- V2203-M-E2- V2403-M- V2403-M- Model HST1 HST1 HST1 TE2-HST1 TE2-HST2 Type Indirect injection vertical, water-cooled, 4-cycle diesel Number of cylinders Total displacement 1.647 1.826... - Page 6 17.7 (180) (kgf/cm ) SAE 1-3/8, 6 splines PTO/ Rear PTO Engine 540/2685 540/2640 540/2590 speed USA No.5 (KUBOTA 10-tooth) involute spline MID-PTO PTO/ (if equipped) Engine 2000/2715 2000/2670 2000/2615 speed NOTE : *Manufacturer's estimate The company reserve the right to change the specifications without notice.
-
Page 7: Specification Table [Manual Transmission Type]
SPECIFICATIONS SPECIFICATION TABLE [Manual Transmission Type] [ROPS model] L3240 Model Model D1703-M-E2-GST1 Type Indirect injection vertical, water-cooled, 4-cycle diesel Number of cylinders Total displacement 1.647 Bore and stroke 87 x 92.4 Engine Net power* kW (HP) 23.9 (32.0) PTO power* kW (HP)/ 19.8 (26.5)/2700... - Page 8 17.7 (kgf/cm ) SAE 1-3/8, 6 splines PTO/ Rear PTO Engine 540/2550 speed USA No.5 (KUBOTA 10-tooth) involute spline MID-PTO PTO/ (if equipped) Engine 2000/2580 speed NOTE : *Manufacturer's estimate The company reserve the right to change the specifications without notice.
-
Page 9: Traveling Speeds
SPECIFICATIONS TRAVELING SPEEDS BHST Type (At rated engine rpm) Model L3240, L3540 L4240 L5240 L5740 Tire size (Rear) 12.4-24 14.9-24 13.6-28 Speed H-DS Range gear km/h control pedal lever shift lever Forward 15.0 15.5 14.9 15.5 11.8 12.3 11.8 12.2 25.0... -
Page 10: Operating The Tractor
OPERATING THE TRACTOR OPERATING THE TRACTOR STARTING BHorn Button BTurn Signal / Hazard Light Switch The horn will sound when the key switch is in the "ON" C Turn Signal Light Switch position and the horn button pressed. To indicate a right turn, turn the turn signal light switch clockwise. -
Page 11: Tractor Lights
OPERATING THE TRACTOR BTractor Lights (1) Head light (2) Side turn signal / Hazard light (3) Side marker light (4) Tail light (5) Rear turn signal / Hazard light (6) Brake stop light... -
Page 12: Hydraulic Unit
HYDRAULIC UNIT HYDRAULIC UNIT REMOTE HYDRAULIC CONTROL SYSTEM The hydraulic auxiliary control valves can be installed up to triple segments. BRemote Control Valve There are two types of remote valves available for these models. A Double acting valve: A Double acting valve with float position: This valve may be placed in the float mode with the control lever all the way forward. -
Page 13: Tires, Wheels And Ballast
If necessary to work A Do not use tires other than those approved by under tractor or any machine elements for KUBOTA. servicing or adjustment, securely support them A When you intend to mount different size of tires from with stands or suitable blocking beforehand. -
Page 14: Front Wheels (With 4 Wheel Drive)
200 m (200 yards) and 10 times of shuttle movement by 5 m (5 yards), and thereafter according to service interval. (See "MAINTENANCE" section.) (1) [L3240, L3540, L4240] 137 N-m (14 kgf-m) [L5240, L5740] 185 N-m (19 kgf-m) Models... -
Page 15: Rear Wheels
Rear tread width can be adjusted as shown with the standard equipped tires. To change the tread width Models L3240, L3540 1200 mm 1300 mm 1385 mm 1480 mm 12.4-24 Farm... -
Page 16: Periodic Service
Refer C Protected circuit "TROUBLESHOOTING" section of this manual or your ROPS local KUBOTA Dealer for specific information dealing Fuse Capacity Protected circuit with electrical problems. Alternator Head lights Hazard... -
Page 17: Replacing Light Bulb
PERIODIC SERVICE BReplacing Light Bulb Capacity Light ROPS Head light 35W / 35W Tail light Hazard and Turn signal light (rear) Hazard and Turn signal light (front) Room light Work light Instrument panel light 1.1W Brake stop light...
