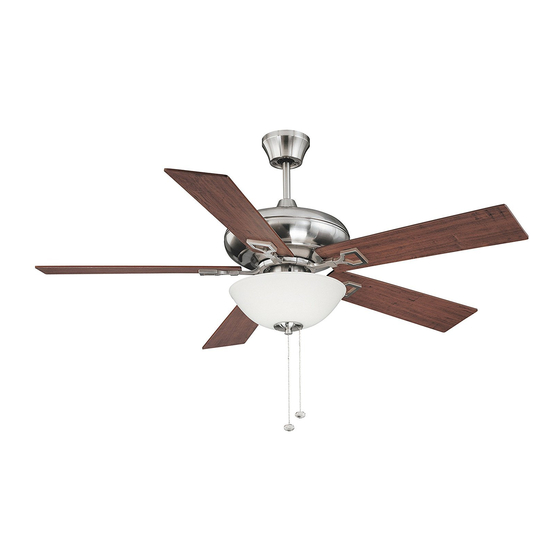

Litex PZ52ABZ5C Installation Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Installation Guide

For Models:

PZ52ABZ5C

PZ52BNK5C

E192641

net weight of fan: 26.46 lb. (12 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the PZ52ABZ5C and is the answer not in the manual?

Questions and answers

Summary of Contents for Litex PZ52ABZ5C

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For Models: PZ52ABZ5C Table of Contents: PZ52BNK5C Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. Read all instructions and safety information carefully before installing your fan and save these instructions.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, inches ensure that the hanging location allows the 7 feet (76cm) (2.13m) blades a clearance of 7ft. (2.13m) from the floor and 30in. (76cm) from any wall or 12ft. - 20ft. obstruction.
Page 5: Fan Assembly. Pgs
5. Fan Assembly. set screw hole If you wish to extend the hanging length of set screw your fan, you must remove the hanging ball stop pin from the 6in. downrod provided to use with an extended downrod (sold separately). [If you wish to use the 6in.
Page 6: Wiring
5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.
Page 7: Canopy Assembly
7. Canopy Assembly. hanging If necessary, partially loosen the 2 screws on bracket the bottom of the hanging bracket. Raise canopy to hanging bracket, aligning rounded screw part of holes in canopy with loosened screws screw in hanging bracket, and push up. Twist canopy to lock.
Page 8: Light Kit Assembly (Optional). Pgs
9. Light Kit Assembly (Optional). motor housing If you wish to use fan WITH the light kit, remove 3 screws from switch housing cap (at top of light switch kit fitter). housing reverse Locate BLUE and WHITE wires in the switch switch housing labeled FOR LIGHT.
Page 9: Testing Your Fan
9. Light Kit Assembly (Optional). (cont). hex nut lock washer switch If you wish to use fan WITHOUT the light housing kit, remove hex nut and lock washer from threaded rod at top of light kit fitter. Remove switch housing cap. Locate small plastic cap light kit fitter in hardware pack and insert firmly into hole in middle of switch housing cap.
Page 10: Troubleshooting
Service at 1-800-527-1292 to arrange for return of fan. 1. Check wall switch to fan. Return fan, shipping prepaid, to Litex Industries, Ltd. We will 2. Verify that reverse switch is set completely in repair or ship you a replacement fan, and we will pay the either direction.

This manual is also suitable for:

Pz52bnk5c
