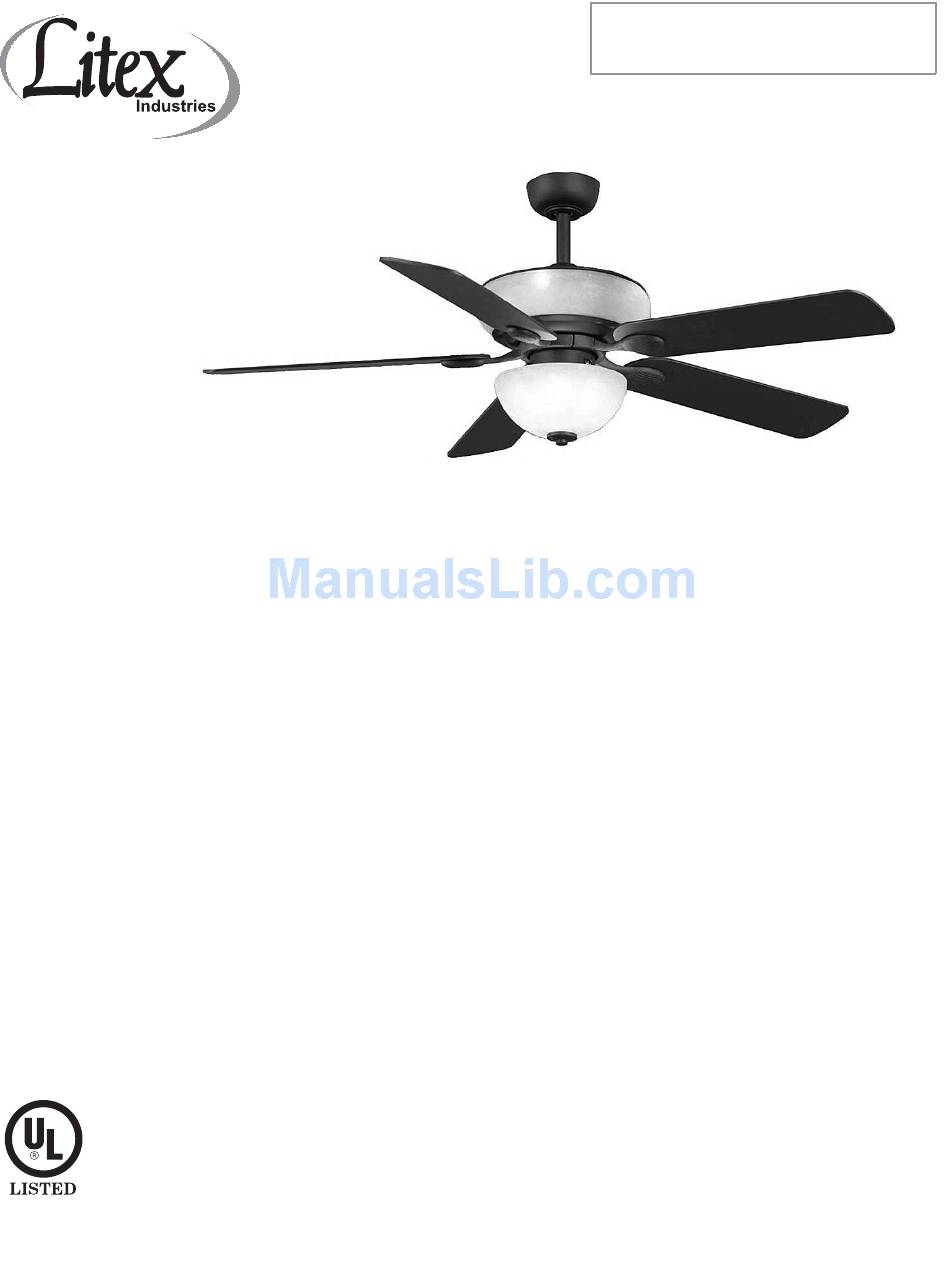

Installation Guide
For Model:
ABH52BNK5C
E192641
net weight of fan: 22.49 lb. (10,2 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 5
Warranty. pg. 11
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABH52BNK5C and is the answer not in the manual?

Questions and answers

Related Manuals for Litex ABH52BNK5C

Summary of Contents for Litex ABH52BNK5C

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For Model: ABH52BNK5C Table of Contents: Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly. pgs. 4 - 5 Wiring.

  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. Read all instructions and safety information carefully before installing your fan and save these instructions.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge inches 7 feet To prevent personal injury and damage, ensure (2.13m) (76cm) that the hanging location allows the blades a clearance of 7ft. (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. 12ft.

  • Page 5: Fan Assembly. Pgs

    5. Fan Assembly. If you wish to extend the hanging length of your set screw hole set screw fan, you must remove the hanging ball from the stop pin 6in. downrod provided to use with an extended downrod (sold separately). [If you wish to use the 6in.

  • Page 6: Wiring

    5. Fan Assembly (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on hanging bracket.

  • Page 7: Canopy Assembly

    7. Canopy Assembly. canopy screw hanging Temporarily lift canopy to hanging bracket to bracket determine which 2 screws in hanging bracket align with slotted holes in canopy and partially loosen these 2 screws. Remove the other 2 screws. Now, lift canopy to hanging bracket, aligning slotted holes in canopy with loosened screws in hanging bracket.

  • Page 8: Blade Assembly

    9. Blade Assembly. Time Saver: Washers for blade screws can motor housing be set on each blade screw prior to installing blades. Locate 15 blade attachment screws and 15 washers in one of the hardware packs. Hold blade arm up to blade and align holes. Insert 3 blade attachment screws (along with washers) with fingers first and then blade...

  • Page 9: Light Kit Assembly. (Optional). Pgs

    10. Light Kit Assembly (Optional). Remove 1 screw from fitter plate (on underside of motor) and loosen the other 2 screws. Align slotted holes in switch housing plate with loosened screws in motor housing fitter plate, allowing male plug from motor housing to come through hole in middle of switch housing plate.

  • Page 10: Testing Your Fan

    10. Light Kit Assembly (Optional). (cont). If you wish to use the fan WITHOUT the light kit, locate wires in switch housing labeled FOR WHITE BLACK LIGHT KIT CONNECTION. Gently pull molex connections apart in order to disconnect these hex nut wires.

  • Page 11: Bulb Replacement--Upper Light

    12. Bulb Replacement-- Upper Light. Important: Allow motor housing and light bulbs to cool before touching. When bulbs in lighted housing need replacement, access plates on top of motor housing can be removed to allow access to light bulbs. Using a Phillips screwdriver, remove the 2 screws at either end of the access plate containing the burned-out bulb.

  • Page 12: Troubleshooting

    Service at 1-800-527-1292 to arrange for return of fan. 2. Verify that reverse switch is set completely in Return fan, shipping prepaid, to Litex Industries, Ltd. We will repair or ship you a replacement fan, and we will pay the either direction.
