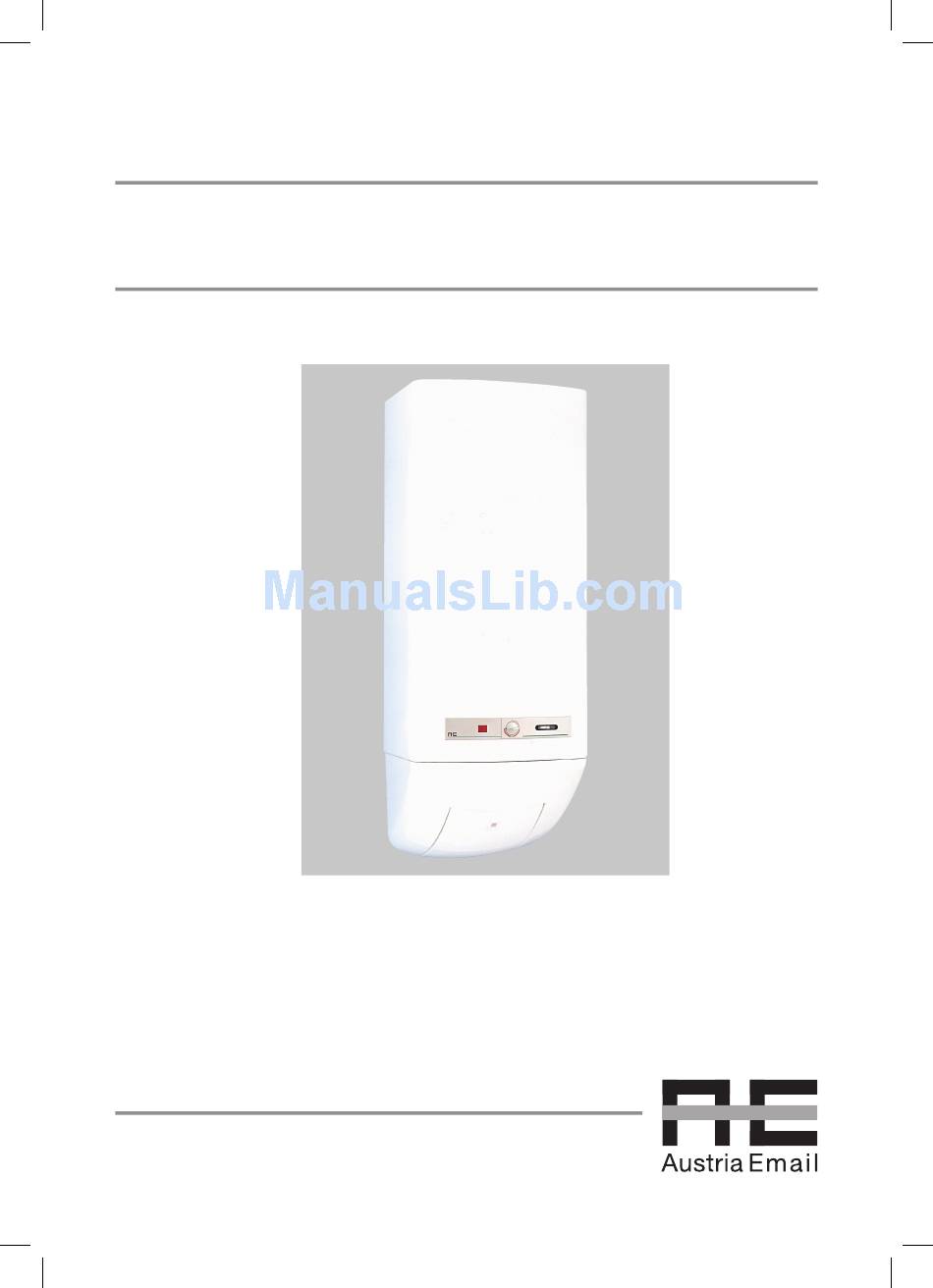

Page 1: Operating And Installation Instructions
Operating and Installation Instructions District heating tank FSN and FSN-E Please forward this on to the user! Id.Nr.: 229224-9... - Page 2 The environmentally friendly CFC-free insulating foam ensures an extraordinarily low standby energy consumption. For the sake of the environment, Austria Email AG's ARA (Junk Recy- cling Austria AG) licence enables you to have the packaging of your device professionally disposed of.
-
Page 3: Table Of Contents
District heating tank FSN and FSN-E Table of Contents Page 1. Description 2. Hot Water Requirements 3. Save Energy 4. Standby Energy Consumption 5. Operating 6. Temperature Setting FSN-E 7. Summer- Winter Switch 8. Thermometer 9. Adjustment Range Limitation FSN-E 10. -
Page 4: Description B F
(patent pending). This is why an electrical power supply at 1N ~ 230 V is necessary for the connection of a storage tank from the FSN or FSN-E type series. • Elegant base to cover the connections, which is fitted with a service flap for better accessibility. - Page 5 District heating tank FSN and FSN-E The warming-up period and the maximum input power for district heating supplies can be taken from the following diagrams: Warming-up Period FSN and FSN-E* Flow temperature in °C Max. input power FSN and FSN-E* Flow temperature in °C...
-
Page 6: Hot Water Requirements
District heating tank FSN and FSN-E 2. Hot Water Hot water consumption in the household is dependent upon the number of people, the sanitary fittings in the flat or house, the insulation, the plumbing and the individual habits of the user. -
Page 7: Operating B F
District heating tank FSN and FSN-E 5. Operating All operating equipment required for the operation of the FSN and FSN-E district heating storage tanks (temperature adjustment knob) and monitoring elements (operating light and thermometer) is gathered together on an control panel at the front of the device. -
Page 8: Summer- Winter Switch B F
District heating tank FSN and FSN-E 7. Summer- Winter Switch Once the service flap has been opened the switch is freely accessible. Here is where one can choose, whether the the storage tank should be powered by electricity (sum- mertime operation) or by the district heating grid (wintertime operation). -
Page 9: Adjustment Range Limitation Fsn-E F
District heating tank FSN and FSN-E 9. Adjustment Range Limitation FSN-E To avoid accidental scalding by water that is too hot, the adjustment range of the temperature regulator can be limited to a max. of 65 °C. The device must be electrically isolated from the grid at all poles. -
Page 10: Installation And Safety Information F
District heating tank FSN and FSN-E 11. Installation and Safety Information a) Important Installation Information! Do not bend the safety component sus- pension hooks due to the possibility of breakage. A failure to take notice of this warning could result in personal injury due to a falling device! -
Page 11: Dimensions Sketch F
District heating tank FSN and FSN-E 12. Dimensions Sketch Id.Nr.: 229224-9 •... -
Page 12: Special Suspensions B F
District heating tank FSN and FSN-E 13. Special Suspension Thin wall suspension Ceiling suspension • Id.Nr.: 229224-9... -
Page 13: Connection Requirements B F
District heating tank FSN and FSN-E 14. Connection Requirements Thermostat for electric heating Thermostat for district heating Hot Water Storage Tank Heat Exchanger Back-flow Valve Zone Valve Safety Valve Return Flow Inhibitor Dirt Trap Drainage Valve Electric Heating 10 Bleeding... -
Page 14: District Heating System Connection
District heating tank FSN and FSN-E • Maximum operating pressure on the heater side: 6 bar • Maximum flow temperature on the heater side: 95 °C • Maximum operating pressure on the domestic water side: 6 bar • Average domestic water temperature: 60 °C... -
Page 15: Accessories And Plastic Base Installation F
District heating tank FSN and FSN-E 16. Accessories and Plastic Base Installation Id.Nr.: 229224-9 •... -
Page 16: Domestic Hot Water Side Connection (Pressure Resistant)
District heating tank FSN and FSN-E 17. Domestic Hot Water Side Connection (pressure resistant) In cases in which unsuitable or non-functional storage tank connection fittings are used as well as in cases in which the stated operating pressure is exceeded, we shall refuse to guarantee the water heater in any way whatsoever. - Page 17 District heating tank FSN and FSN-E via the funnel or outlet pipe. b) In the case where safety valves are installed before water heaters, a check should be made as to whether the safety valve reacts when the water heater is heated up. This can be verified by way of water egress out of the outlet pipe.
-
Page 18: Electrical Connection Fsn-E
District heating tank FSN and FSN-E 18. Electrical Connection FSN-E 18.1 General Instructions a) As a matter of principle, the electrical connectivity is to be carried out as per the circuit diagram pasted in to the connection space of the storage tank. -
Page 19: Initial Commissioning B F
District heating tank FSN and FSN-E 19. Initial Commissioning Before switching on the electrical power the storage tank must be filled with water. During the heating up process the expansion water generated in the inner boiler must drip out of the safety valve in the case of a pressure resistant connection and out of the mixer unit in the case of a non-pressure connection. -
Page 20: Inspection, Servicing, Maintenance B F
District heating tank FSN and FSN-E 21. Inspection, Servicing, Maintenance a) During heating-up the excess water must be seen to drip out of the safety valve out- let (in the case of non-pressure connections the excess water will drip out of the mixer unit valve). -
Page 21: Guarantee And Warranty B F
The warranty is granted in accordance with the statutory provisions of the Republic of Austria, as well as of the EU. 1. Prerequisite for the provision of warranty services by Austria Email AG (hereinafter referred to as AE AG) shall be the presen-... - Page 22 10. Claims over and above the warranty, if legally permissible, in particular claims with respect to compensation of damages and consequential damages, shall be excluded. Prorated labour time for repairs as well as the costs of restoring the original condition of the unit must be paid in full by the buyer. In accordance with this warranty declaration, the warranty shall apply only to repair or replacement of the unit.
- Page 24 Head office and factory: Austria Email AG A-8720 Knittelfeld, Austriastraße 6 Telefon: (03512) 700-0 Fax: (03512) 700-239 Internet: www.austria-email.at E-Mail: office@austria-email.at Werkskundendienst Telefon: (03512) 700-297 E-Mail: kundendienst@austria-email.at Sales offices: Wien, Niederösterreich, Burgenland A-1230 Wien, Zetschegasse 17 Telefon: (01) 615 07 27 Fax: (01) 615 07 27-260 E-Mail: tvondal@austria-email.at...
