Inst all Instr uctions For:

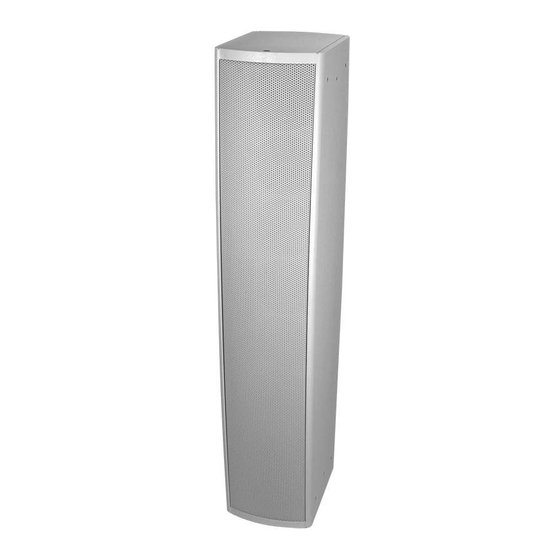

LA808i (Low-Frequency Driver) speaker
Connector Plate (Back)
B ox contents
1 Speaker
1 10' Safety Cable
3 Black Zip Ties
1 AC-LA8-BACK Back Plate
2 AC-LA8-LINK Side Plates
15 Mounting Bolts
1 Euroblock Connector
1 Jumper Cable
Optional mounting accessories
• Allen Products MM-024
Pan and Tilt wall mount
• Allen Products PoleStar pole mount
• Allen Products MM-020X
MultiMount ceiling mount
• Allen Products SAS-1WA-20
One-Way-Array
• Allen Products TCK-010-S
Fly cable kit
• AC-LA8-LINK stacking adapter plate
• AC-LA8-FLY hanging adapter plate
• AC-LA8-BACK bent back plate
LA808i
Warning
So undTube s peakers must be installed by a profes s ional audio ins taller/co ntracto r. For safety and for
optimum audio performa nce, installer mus t follow all direction s is sued by S oundTube E ntertainment.
|
1.435.64 7.9555
© 2012 SoundTube Entertainment, Inc. All rights reserved. PN INS-LA808i Rev 08.15.12
Warning
Do not spec or install speaker near support beam, ventilation duct or
other structu re that may interfere with speaker function or dispersion.
Mounting Bolts
AC-LA8-BACK Back Plate
Euroblock connector
AC-LA8-LINK Side Plates
|
800.64 7.TUBE
www.soundtube.com
