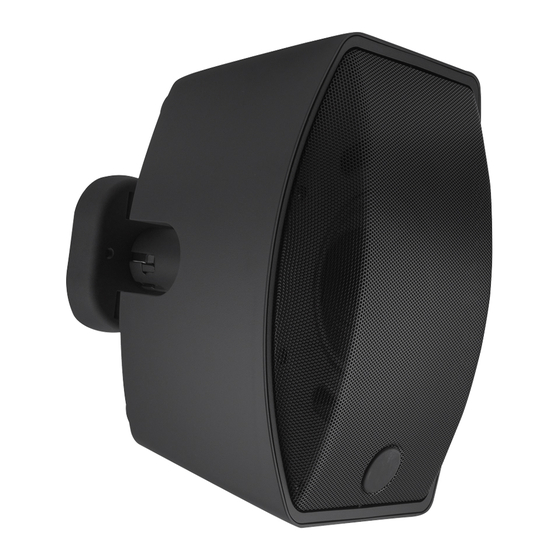

SoundTube SM590i Install Instructions

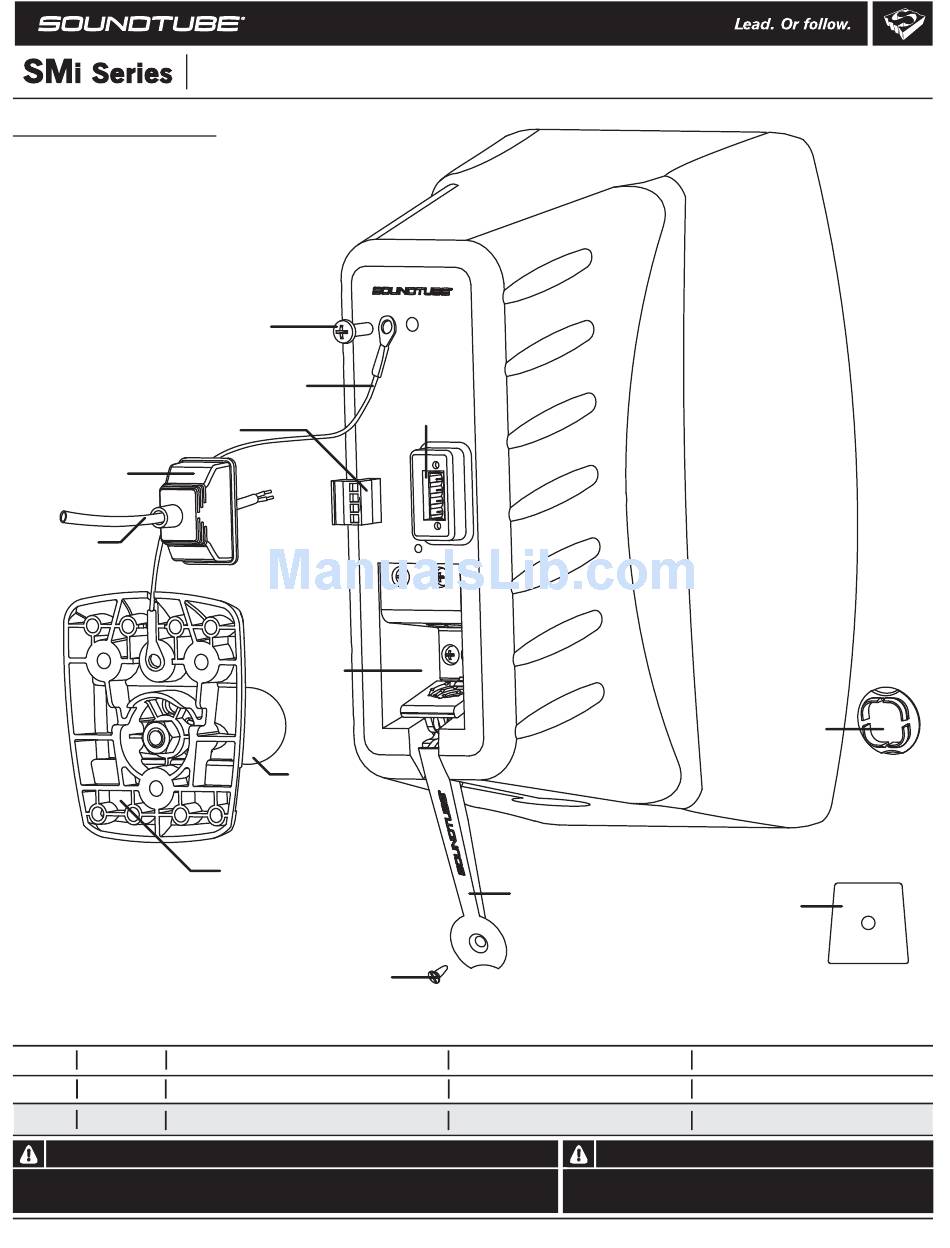

Box contents

1 Speaker
1 Terminal weather boot
1 Mounting bracket with ball joint
1 Safety cable
2 Safety cable anchor screws
1 Euroblock connector
1 Grille-mounted tap switch cover
1 Theft-resistant screw
1 Extra - Ball joint anchor pad
Safety cable anchor screw
Euroblock connector
Terminal
weather boot
Signal wire

Transformer Taps Settings

Voice Coil
70.7 Volt Transformer Taps (dB)
SM500i
8 Ohm=108 dB
33W=103.5, 17W=101, 9W=98, 6W=96.5, 3W=93.5
SM590i 8 Ohm=110 dB
33W=105.5, 17W=103, 9W=100, 6W=98.5, 3W=95.5
Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Install Instructions For:
SM590i and SM500i speaker
Safety cable
Clamping cavity
Ball joint
Mounting bracket
Theft-resistant screw
Euroblock jack
Speed Lever™
© 2005 SoundTube Entertainment, Inc. All rights reserved. PN INS-SMI Rev 07.15.05
100 Volt Transformer Taps (dB)
33W=103.5, 17W=101, 9W=98, 6W=96.5
33W=105.5, 17W=103, 9W=100, 6W=98.5
|
1.435.647.9555 800.647.TUBE
Grille-mounted
tap switch cover
Ball joint anchor pad
25 Volt Transformer Taps (dB)
5W=95.5, 2.5W=92.5, 1.3W=89.5, .63W=86.5
5W=97.5, 2.5W=94.5, 1.3W=91.5, .63W=88.5
Warning
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
|
www.soundtube.com
