Install Instructions For:
XT Series
XT550, XT550-UL, XT850, and XT850-UL

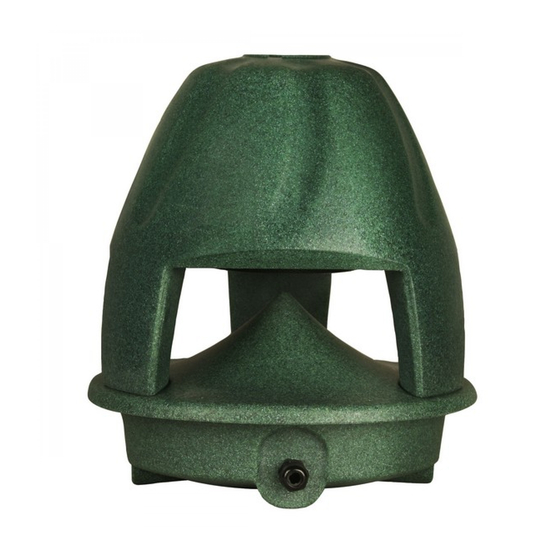

Speaker enclosure
#8 Stainless-steel
square-drive screw (x6)
In-ground/security bracket
Transformer Taps Settings
Voice Coil
XT550
4 Ohm=107 dB
XT850
4 Ohm=110 dB
XT550-UL and XT850-UL UL listed 1480
Speaker base
70.7 Volt Transformer Taps (dB)
32W=103, 16W=100, 8W=97, 4W=94
64W=108, 32W=105, 16W=102, 8W=99
1.435.647.9555

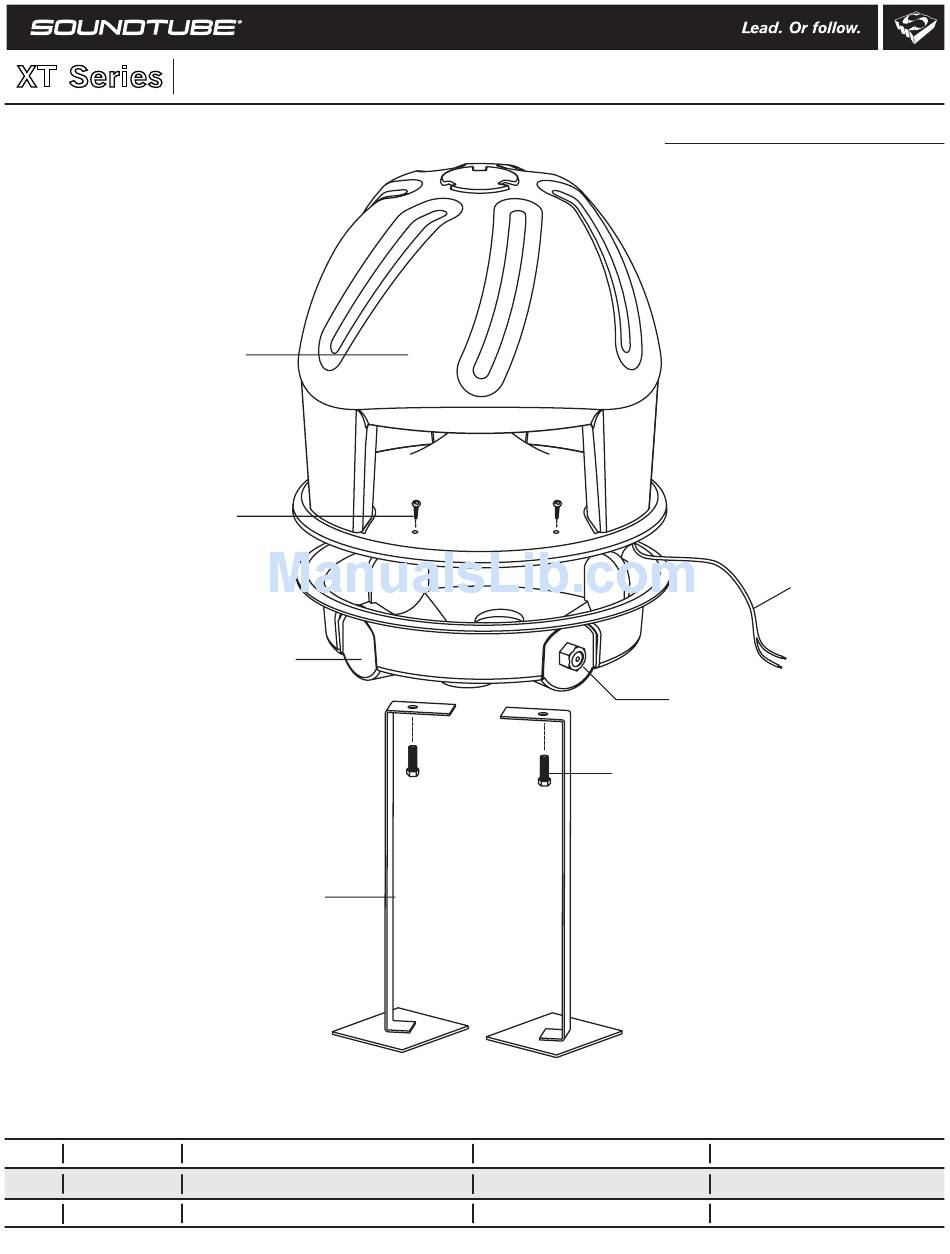

Box contents
.75" 1/4-20 Stainless-steel bolt
© 2005 SoundTube Entertainment, Inc. All rights reserved. PN INS-XT Rev 05.26.05
100 Volt Transformer Taps (dB)
32W=103, 16W=100, 8W=97
64W=108, 32W=105, 16W=102
|
|
800.647.TUBE
www.soundtube.com
1 In-ground speaker
1 Anti-theft device (2 pieces)
1 Liquid-tight compression fitting
1 Square drive bit
2 Wire nuts
6 #8 stainless-steel square-drive screws
2 .75" 1/4-20 Stainless-steel bolts
Wire leads
Liquid-tight strain relief
25 Volt Transformer Taps (dB)
4W=94, 2W=91, 1W=88, .5W=85
