Inst all Instr uctions For:

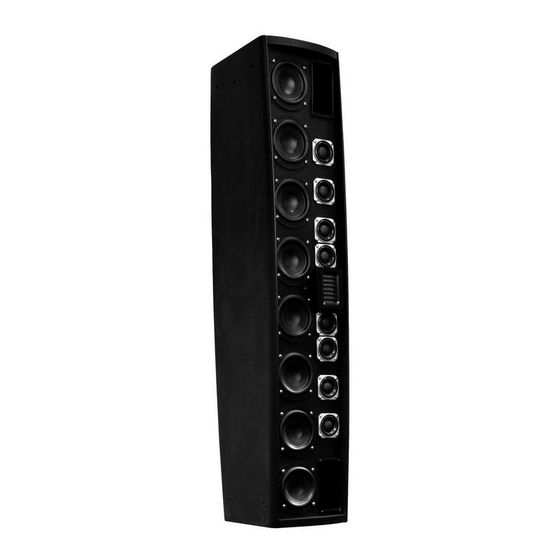

LA880i speaker

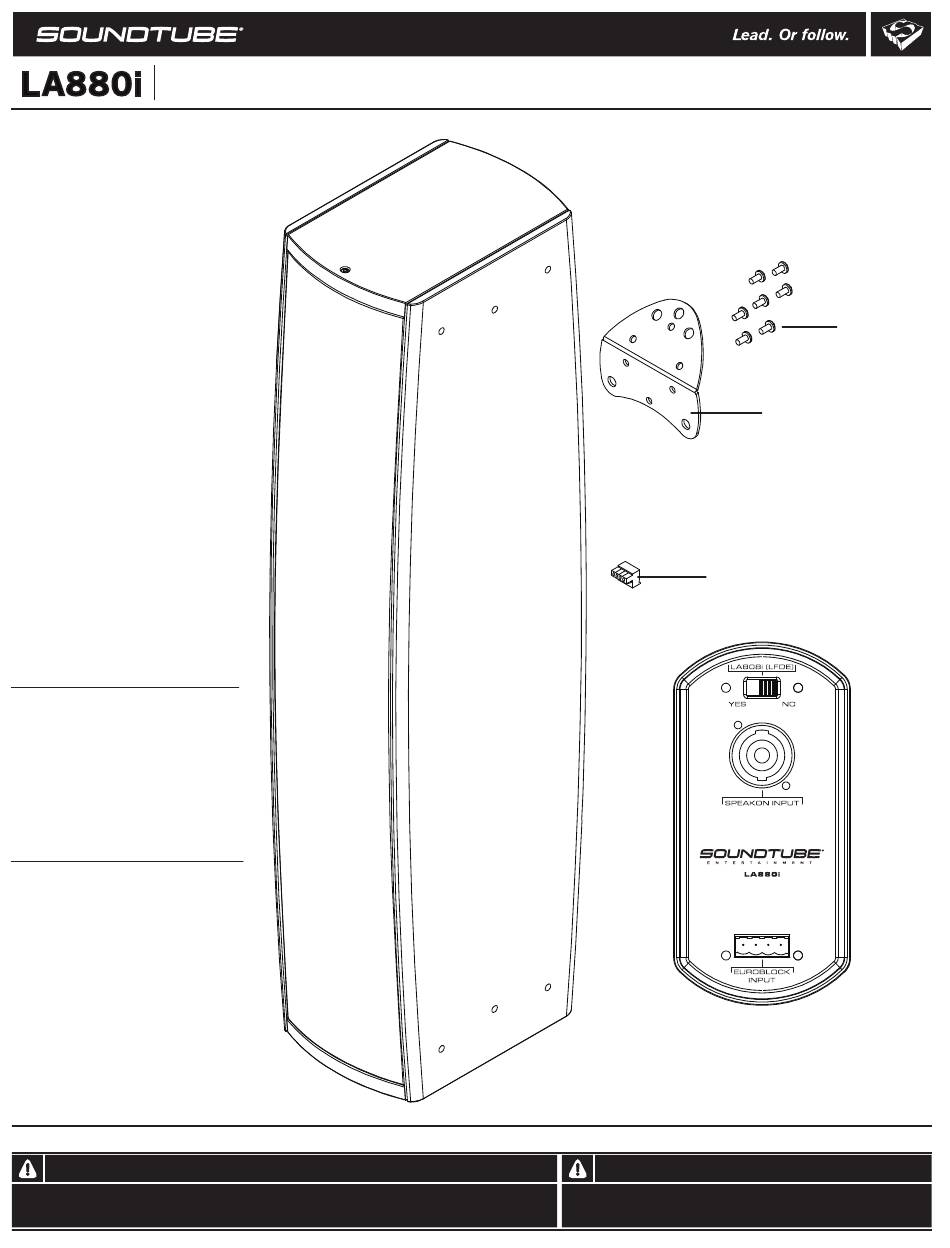

B ox contents
1 Speaker
1 10' Safety cable
3 Black zip ties
1 AC-LA8-BACK Back plate
7 Mounting bolts (1/4-20 x 0.5")
1 Euroblock connector
Optional mounting accessories
• Allen Products MM-024
Pan and Tilt wall mount
• Allen Products PoleStar pole mount
• Allen Products MM-020X
MultiMount ceiling mount
• Allen Products SAS-1WA-20
One-Way-Array
• Allen Products TCK-010-S
Fly cable kit
• AC-LA8-LINK stacking adapter plate
• AC-LA8-FLY hanging adapter plate
• AC-LA8-BACK bent back plate
LA880i
Warning
So undTube s peakers must be installed by a profes s ional audio ins taller/co ntracto r. For safety and for
optimum audio performa nce, installer mus t follow all direction s is sued by S oundTube E ntertainment.
|
1.435.64 7.9555
© 2012 SoundTube Entertainment, Inc. All rights reserved. PN INS-LA880i Rev 08.15.12
Warning
Do not spec or install speaker near support beam, ventilation duct or
other structu re that may interfere with speaker function or dispersion.
Mounting Bolts
AC-LA8-BACK Back plate
Euroblock connector
Connector Plate (Back)
|
800.64 7.TUBE
www.soundtube.com
