SoundTube FP6030 Install Instructions

Install Instructions For:
FP Series FP Series
FP6030 and FP6020 speakers
Cable hanging bracket
Right pair - Red Black
Left pair - White Green
Signal wire/hanging cable (4.5m /15 ft)
FP dome
Warning
S o u n d Tu b e s p e a k e r s m u s t b e i n s t a l l e d b y a p r o f e s s i o n a l a u d i o
installer/contractor. For safety and for optimum audio performance,
installer must follow all directions issued by SoundTube Entertainment.
Mounting bushing
CAT V cable
Dome clamp
FP speaker pod
Mono Operation: Series - 16 Ohm
1.435.647.9555
High pass filter switch (on position)
Right pair - Red
Parallel - 4 Ohm
Right pair - Red
© 2005 SoundTube Entertainment, Inc. All rights reserved. PN INS-FP6 REV 03.01.05
Warning
Do not spec or install speaker near support beam, ventilation
duct or other structure that may interfere with speaker function
or dispersion.
| |
800.647.TUBE www.soundtube.com

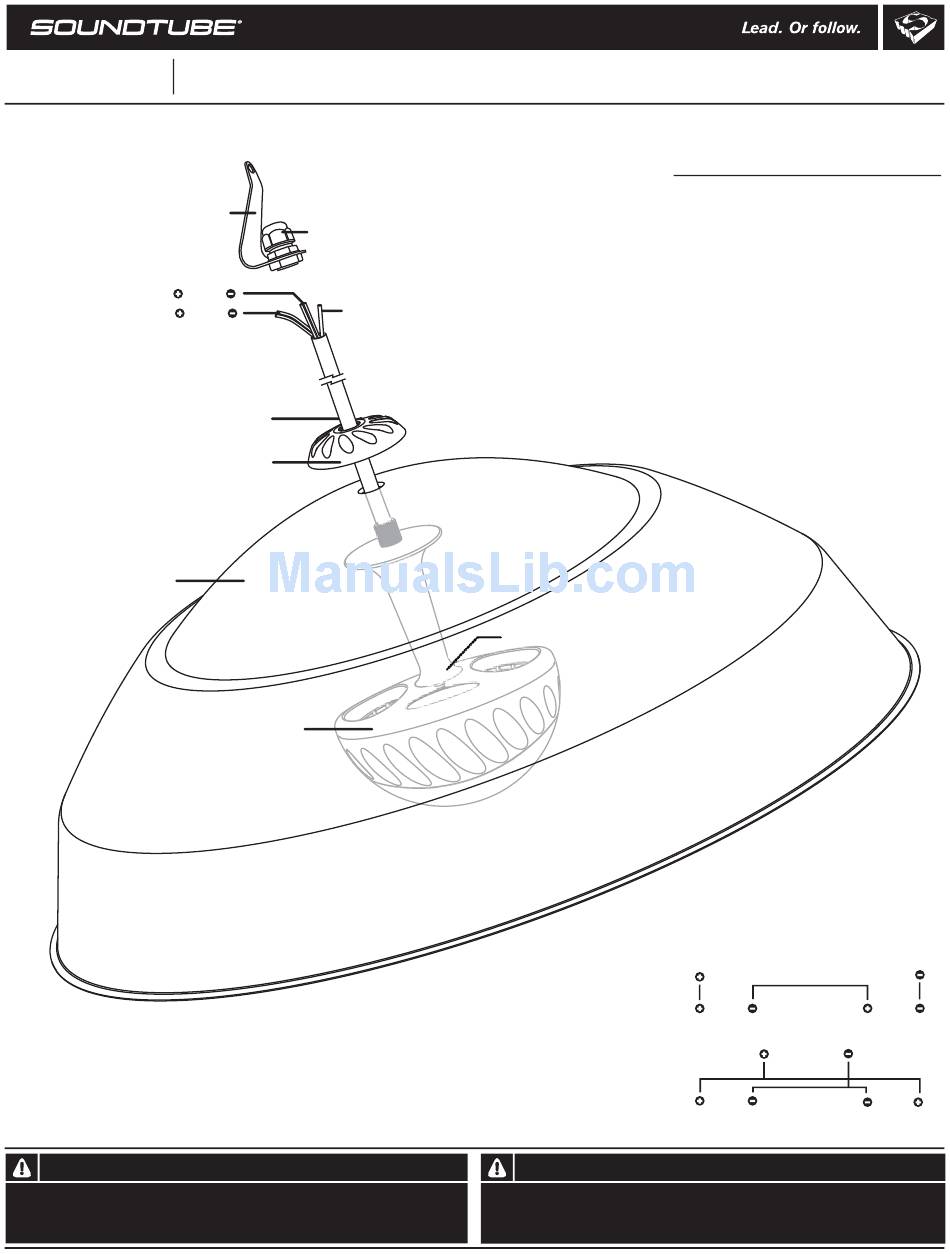

Box contents
1 FP pod w/ signal wire / hanging cable
1 FP Dome clamp
1 Cable hanging bracket
1 Mounting bushing
1 FP dome (in separate box)
Source
Black Left pair - White
Source
Black
Left pair - Green
Source
Green
White
