4.1 Screen 1: GPS MAP (...Cont)

4.1.4 Dynamic Elevation

General.
This features allows you to view mapping
and a live elevation profile on the same screen,
allowing detailed visability of the profile of the route
head, or the completed route behind. After pressing
the Data Box button following the 4 data box
selection, the GPS MAP / ELEV screen will apprear.
The elevtion profile works in 3 modes:
mode, GoTo mode and No Route mode.
Active Route mode.
With a pre-planned route
loaded onto your Active 12 and "Activated" the
elevation graph will show you the profile of the route
ahead. A red spot will indicate your location on the
profile. The "ahead" direction will be indicated by the
graph to the right of the spot. In general use the red
spot will lie 1/3 the way along the graph, showing a
portion of the route already travelled.
Please Note: moving the joystick will put the screen
into PLANNING mode and the Elevation profile will
GPS MAP
disappear, until you return to
the bottom left hand button.
GoTo mode.
The dynamic elelvation feature also
works in conjunction with the GoTo
see later chapter for activation of the GoTo feature).
In this instance (and assuming that height data is
available from the map dataset), an elevation profile
between your location and the GoTo
shown. Please note: This is assuming a straightline
route to the GoTo point.
Route mode.
Without an Active Route, the elevation
profile will display the route completed thus far, since
the TRIP LOG was started.
Profile Resolution.
The level of detail shown on the
profile graph can be adjusted with horizontal sliders
driven either by the joystick or by the
Out buttons - on the slider that is "in focus" indicated
by the orange fill. This settings feature is accessed
by pressing the TRAIL UP button twice when in
MAP mode.
Software v3.0.9915
Active Route

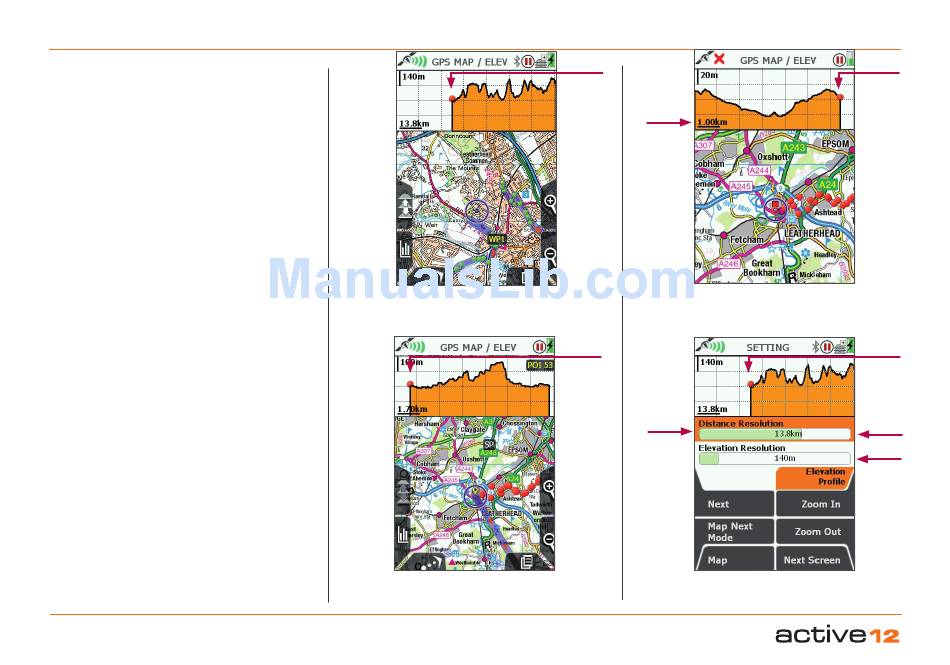

Elevation: "Active Route" mode
screen, using
point (please
point will be
Zoom In / Zoom
Elevation: "GoTo" mode
GPS
You
Are
Here
Grid
Scale
You
Are
Here
Orange
Fill =
Setting
Focus
15
You
Here
Elevation: "No Route" mode
Here
Adjust
Distance
Adjust
Height
Setting the profile resolution
