4.

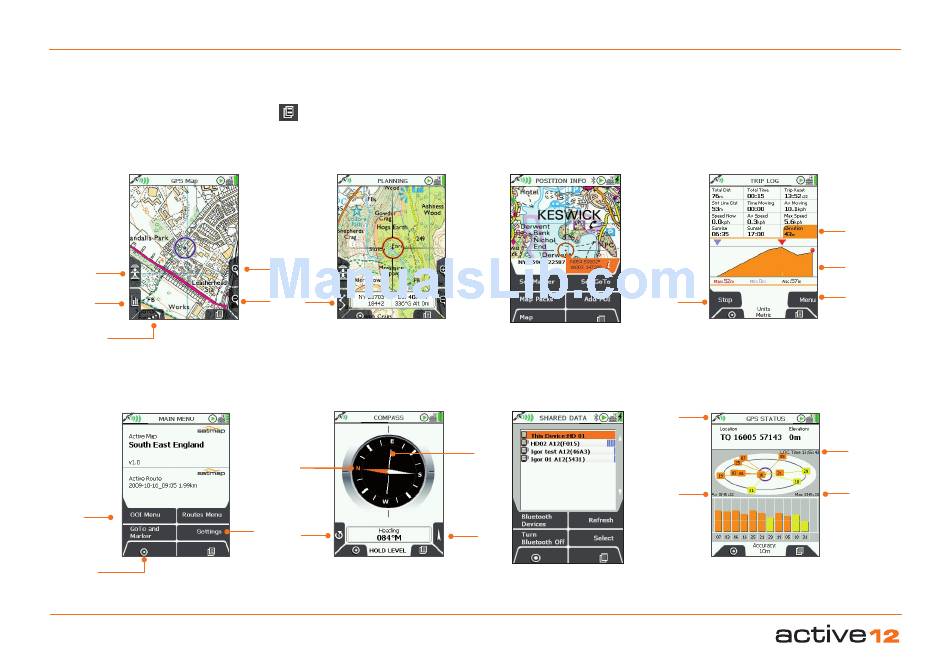

Eight Primary Screens

Eight Primary Screens
(GPS MAP/PLANNING → POSITION INFO → TRIP LOG → MAIN MENU → COMPASS → DATA SHARE → GPS STATUS)
(
Use the lower right button Primary Screens
You can also move the joystick left/right to scroll through these options.
1. GPS MAP
Toggle maps
Data boxes
North Up/
Trail Up
Your position on the map
5. MAIN MENU
Add/View
OOIs
GPS Map
(your position
on the map)
Access to main
functions
Software v3.0.9915
) to scroll through the primary screens which give you access to the main GPS features.
2. PLANNING
Zoom In
ROUTES
Zoom Out MENU
Pan and zoom across the map.
(Nudge the joystick on the GPS
MAP screen to get to PLANNING
mode).
6. COMPASS
Orange
tipped north
indicator
Add/View
Calibrate
Routes
Compass
Built-in electronic compass
with direction indicator
3. POSITION INFO
Extra functions
7. SHARED DATA
Bearing
indication
given here
Pointer
Nearby Active 12 units that
may have shareable data,
showing name & unique ID.
11
4. TRIP LOG
Log data
Data and trail
logging
8. GPS STATUS
Signal
indicator
Satellites'
atomic
clock time
Average
Maximum
Signal
Signal to
to Noise
Noise Ratio
Ratio
(SNR)
Satellite acquisition
screen
© Satmap Systems Ltd 2015
Elevation
data
Elevation
profile
Menu for
trail
conversion
options
