4.1.5 Map orientation

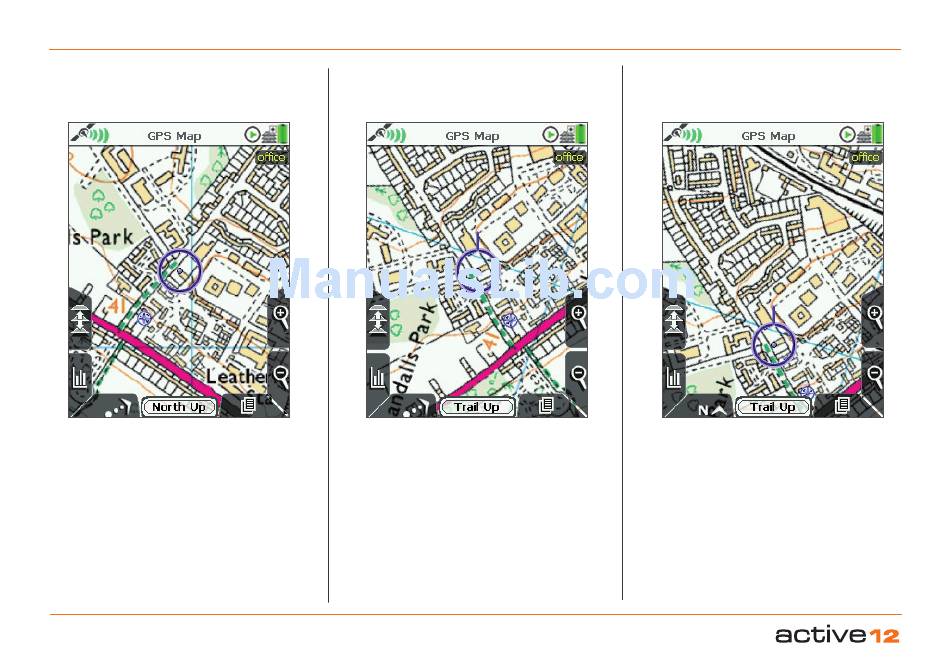

There are 3 map orientation options for enhanced visibility:
North Up
North Up is currently on the screen. Trail Up can be
selected by pressing the Trail Up icon (front left button).
The blue location icon is shown in the centre of the
screen with North facing up on the map. Use this
mode to conserve battery power.
From the PLANNING screen if you wish to switch
GPS Map
the map to North Up, return to the
and press the North Up/Trail Up button.
Software v3.0.9915
North Up / Trail Up (Centre) /
Trail Up (Centre)
Trail Up (Centre)
is currently on the screen.
(Low) can be selected by pressing the Trail Up icon
(front left button).
The blue location icon is shown in the centre of the
screen. The map orientates to match the direction
of travel (similar to turning a paper map to find your
bearings).
screen
If you switch to PLANNING
in Trail Up mode.
Note: Trail Up is not available in advanced power
saving mode. (The screen refreshes more frequently in
Trail Up, drawing more power).
Trail Up (Low)
Trail Up
Trail Up (Low) is currently on the screen. North Up
can be selected by pressing the North Up icon (front
left button).
The map orientates to match the direction of travel.
However the blue location icon is positioned low on
the screen so you can see more mapping ahead
of you. Useful for when you are traveling at higher
speeds, such as on a bike.
mode, the map will stay
Note: The 4 data box option is not available in the Trail
Up (Low) mode as it would obscure the locator circle.
