5.1.

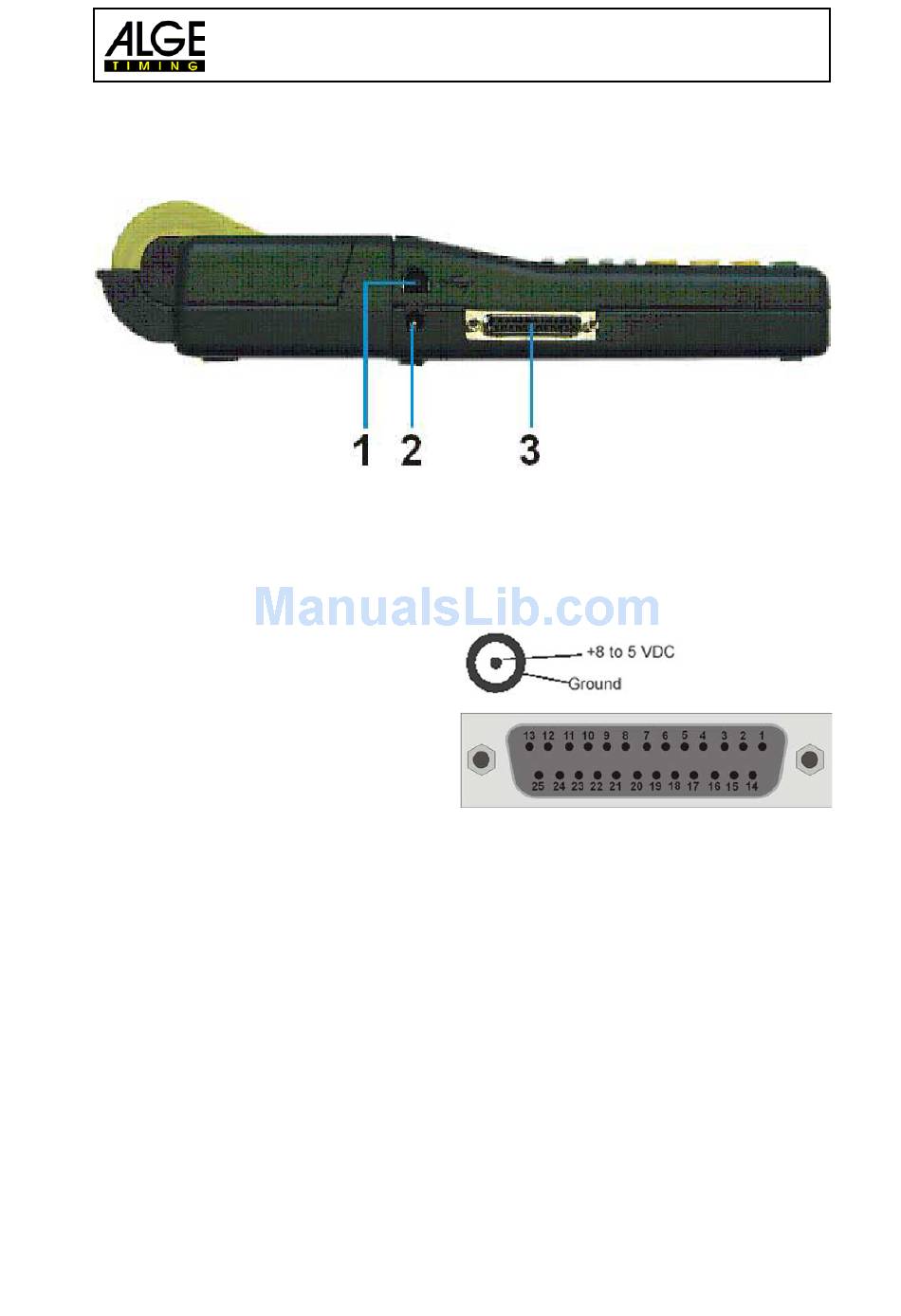

Connection System:

USB-Interface (1):
The USB-interface is a interface for data handling between Timy and PC.
All data you can call through this interface, or you can remote control the Timy from the PC
through this interface.
Since there is no software driver for the PC-side available it will not be possible to use the USB
interface at the moment.
Power Supply Connection (2):
ALGE-MultiPort (3):
This connector includes the following:
Pinout:
1 ...... Code for Terminals
2 ...... c0
3 ...... c2
4 ...... c3
5 ...... c7
6 ...... Data output for GAZ
7 ...... RS485B
8 ...... RS485A
9 ...... CLK Clock for Terminals
10 .... RS232 TX
11 .... RS232 RX
12 .... Common Ground (GND)
13 .... Output stab. Voltage (+5V)
Version: E-2001-12-20
Timy Timy
Timy Timy Timy
Start Channel
Timing Channel 2
Timing Channel 3
Timing Channel 7
14 .... c1 Finish Channel
15 .... c5 Timing Channel 5
16 .... c8 Timing Channel 8
17 .... c6 Timing Channel 6
18 .... c4 Timing Channel 4
19 .... RS232 RTS
20 .... Data output for Printer
21 .... Speaker 8 Ω
22 .... RS232 CTS
23 .... Output Voltage +7,5 to 14.5 VDC
24 .... Common Ground (GND)
25 .... Input Voltage +8-15VDC
Page 21
