Summary of Contents for ALGE-Timing Timy

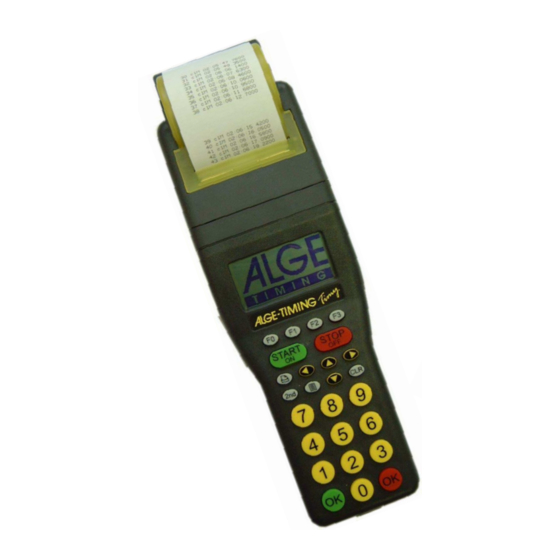

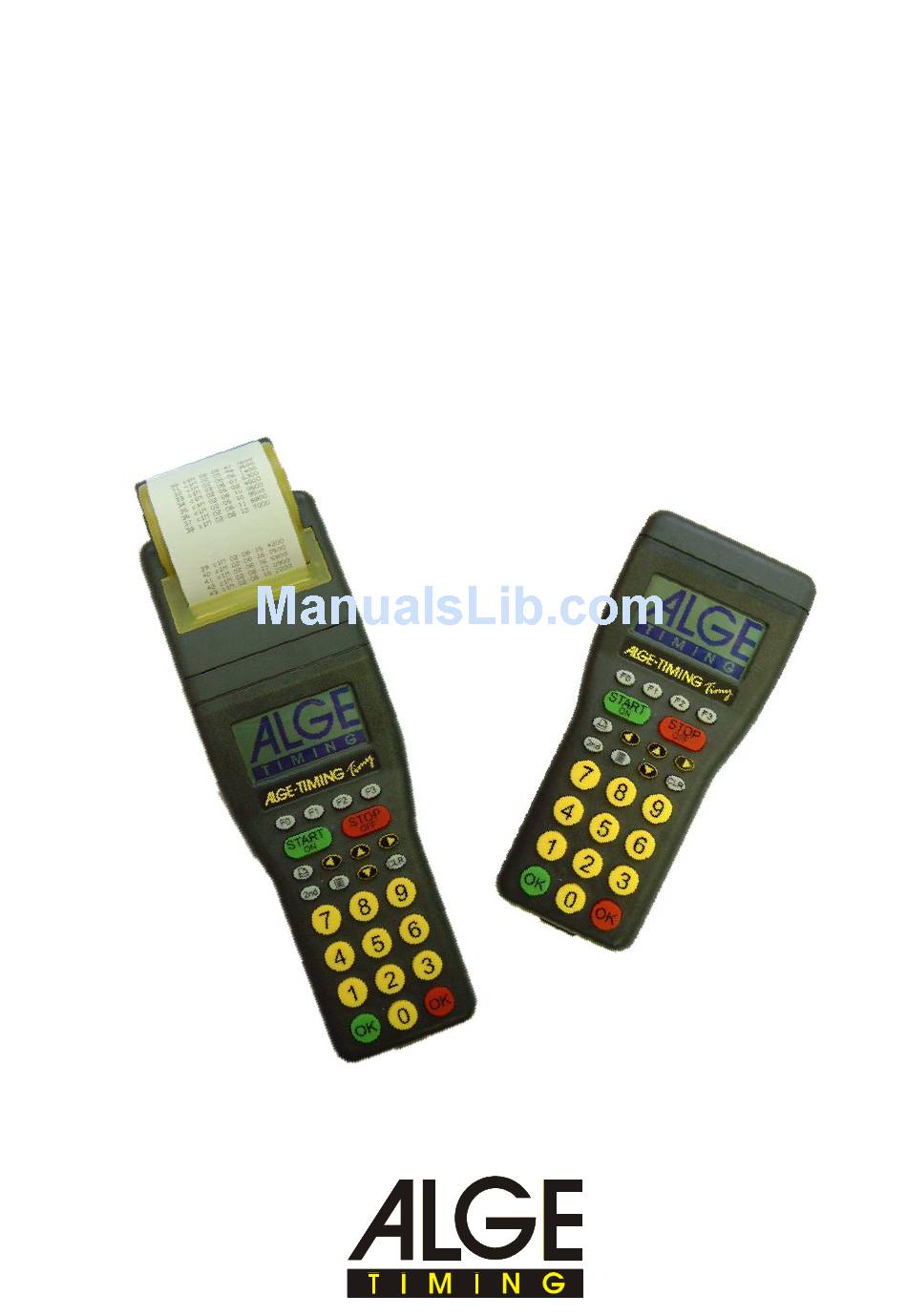

  • Page 1 Timy Timy Timy Timy Timy Timy Timy Timy Timy Timy English...
  • Page 2 Timy Timy Timy Timy Timy Control Elements 1 ..USB Interface 2 ..Charger Socket 3 ..ALGE MultiPort 4 ..Connection for Display Board 5 ..Connection for Start Impulse Device (c0) 6 ..Connection for Finish Impulse Device (c1) 7 ..
  • Page 3 Timy Timy Timy Timy Timy Version: E-2001-12-20 Page 3...

  • Page 4: Table Of Contents

    RS 485 Interface: ....................24 5.2.3. Interface for Display Board: .................. 24 5.2.4. USB-Interface: ...................... 24 Technical modifications remain reserved in sense of improvement! ALGE Timy manual copyright by: ALGE-Timing GmbH & Co Rotkreuzstraße 39 A-6890 Lustenau www.alge-timing.com Version: E-2001-12-20...
  • Page 5 Timy Timy Timy Timy Timy Version: E-2001-12-20 Page 5...

  • Page 6: Device Discribtion

    485 interface to make a network of timing devices, and finally as world novelty a future proof USB interface. The memory of the Timy is also gigantic. It can store up to 13.000 times. All memory times can be scrolled on the display, or transmitted to a PC by RS 232 or USB interface.
  • Page 7 Timy Timy Software It is possible to use different software for the Timy. Every licensed software you can update from the internet. In order to activate software it is necessary to buy it. When you buy the software you will get a user code. This user code you can get at your local ALGE -dealer.

  • Page 8: Operating

    2.1.1. External Supply: A external supply of the Timy from +8 to 15 VDC is possible. The ALGE NG13A is the ideal external power supply, since it keeps the DIN-socket for the photocell free. Also the ALGE NG13 works with the Timy.

  • Page 9: Internal Supply

    We recommend the 1000 mAh type. For use at less than 5°C (41F) and if you use a Timy with build in printer no other battery than the NiCd are recommended. NiMH- Rechargeable Batteries: This rechargeable battery we recommend at temperatures below 5°C (41F).
  • Page 10 LG6AA (this charger you can get at your ALGE-dealer. With this charger you have to take the batteries out of the Timy. It makes it possible to use a set of batteries and charge at the same time another set.

  • Page 11: Printer

    Timy 2.2. Printer: The Timy printer is a thermo printer. It needs special thermo paper. The best printing quality you will have with the original ALGE-paper. This paper you can recognize at the ALGE-Logo on the backside. The printer is very user friendly. The printing head does not move and the printer roll is attached to the printer hood.

  • Page 12: Connection With External Devices

    Timy Timy Timy Timy Timy 2.3. Connection with External Devices: Power Supply NG13A or NG13: Push Button 023-02 or 023-10: Startgate STSc: Version: E-2001-12-20 Page 12...
  • Page 13 Timy Timy Timy Timy Timy Photocell RLS1n: Photocell at the Start with Photocell at the Start with 2-wire Banana Cable: Cable 002-10: Photocell at the Finish with Photocell at the Finish with 2-wire Banana Cable: Cable 001-10: Display Board GAZ4:...

  • Page 14: Timig Channels

    Timy Timy 2.4. Timig Channels: The Timy has 9 independent timing channels. Through the RS 485 interface we can extend the channels up to 99. 2.4.1. Delay Times and Block Times: the variable delay- and block times make sure that you have a trouble free race, this means that you have no double impulses and do not miss impulses.

  • Page 15: Timy-Update

    Timy 2.5. Timy-Update: It is possible to update the Timy software without any costs from the internet www.alge- timing.com. In case of no internet connection please contact your ALGE representative. It is only possible to update licensed software. To not licensed software (software that you did not buy) you will have no access.

  • Page 16: Software Registration

    2.8. Memory: The memory of the Timy can hold about 12.000 times. When switching the Timy on it is possible to clear the memory. The display will always inform you about the amount of used and empty memory space. 2.9.

  • Page 17: 2.11. Menu-Adjustments

    Timy Timy Timy Timy Timy 2.11. Menu-Adjustments: This function is not available yet! 2.12. Precision: The precision you can select depending on the program between 1s and 1/10.000 s. Independent from the selected precision the time of day is always taken with the highest precision. This is necessary to calculate the net times correct.

  • Page 18: Programs

    Soon we will offer you the following Software: Stopwatch L: simple timing program (net time) Stopwatch: universal timing program (net time/total time) MultiTimer: universal timing network for two or more Timy Test: for tests with up to 7 intermediate times Training: automatic ski training software...

  • Page 19: Accessory

    6 NiMH rechargeable batteries with 1,5 Ah each Power Supply NG13A: to supply the Timy form the mains or to charge the internal rechargeable batteries Thermo Paper RTP: roll of paper for the internal printer or printer P5-25...

  • Page 20: Technical Data

    14 hours Printer: graphic thermo printer, max. 5 lines per sec. Temperature Range: Timy S and P: -5 to 60°C (23 to 140 F) Timy XE and PXE: -20 to 60°C (-4 to 140 F) Measurements:...

  • Page 21: Connection System

    USB-Interface (1): The USB-interface is a interface for data handling between Timy and PC. All data you can call through this interface, or you can remote control the Timy from the PC through this interface. Since there is no software driver for the PC-side available it will not be possible to use the USB interface at the moment.
  • Page 22 Timy Timy Timy Timy Timy Banana-Socket for Display Board GAZ (4): Banana-Socket for Start Channel (5): Banana-Socket for Stop Channel (6): Photocell Socket (7): Pin Out: 1 c0 . Start-Channel 2 c1 . Stop-Channel 3 GND Common Ground 4 +Ua Power supply input (8-15VDC) 5 +5V stab.

  • Page 23: Interfaces

    Timy Timy Timy Timy Timy 5.2. Interfaces: 5.2.1. RS 232 Interface: Transfer Format: 1 start bit, 8 data bit, no parity bit, 1 stop bit Transfer Speed: 9600 Baud factory adjustment adjustable: 2400, 4800, 19200, 28800, 38400 Transfer Protocol: ASCII yNNNNxCCCxHH:MM:SS.zhtq(CR)

  • Page 24: Rs 485 Interface

    Timy Timy Timy Timy Timy 5.2.2. RS 485 Interface: This function is not available yet! 5.2.3. Interface for Display Board: Transfer Format: 1 start bit, 8 data bit, no parity bit, 1 stop bit 2,400 Baud factory adjustment (standard baud rate for ALGE-GAZ4)
