Summary of Contents for ALGE-Timing Timy

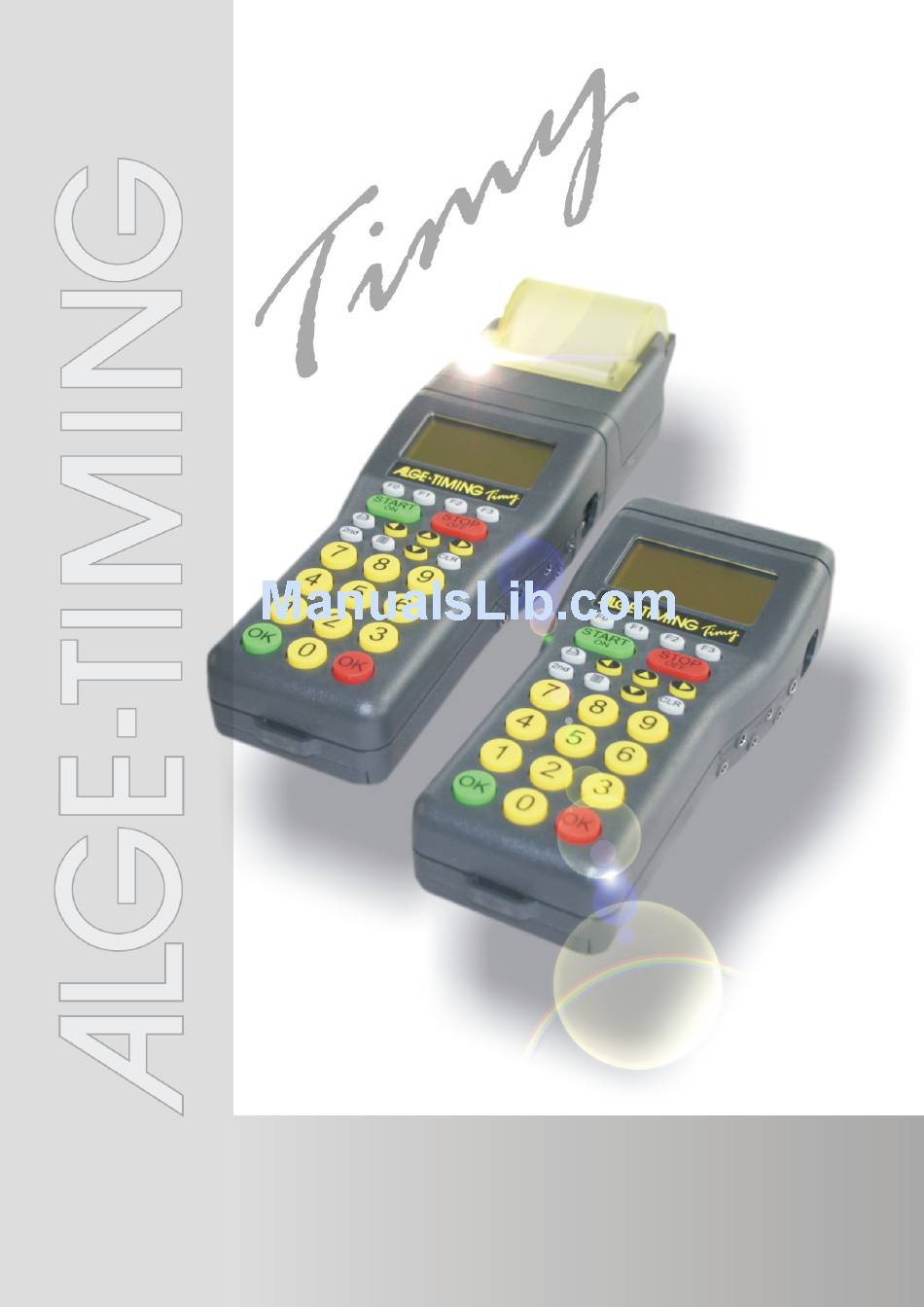

- Page 1 Version-E101007 Cyclestart...
- Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
-
Page 3: Table Of Contents
Timy Cyclestart Table of Content Description ........................4 Mounting ...........................4 Mobile version......................4 Permanent version.....................4 2.2.1 Sketch of the mobile version................5 2.2.2 Sketch of the permanent version ................6 Program-specific adjustments...................7 Countdown time ......................7 Warning signal (audio warning) .................7 Quantity of Laps......................7 Interfaces and channels ....................7 C0 and C3: Startmachine, C0 also synchronous start ..........7... -
Page 4: Description
The start will be normally after a 50 seconds lasting countdown with a warning signal at 30 seconds and an acoustic 5-seconds-countdown. After the countdown ends, the Timy automatically switches to the function Lap Counter and Back-up. -
Page 5: Sketch Of The Mobile Version
Timy Cyclestart 2.2.1 Sketch of the mobile version Page 5... -
Page 6: Sketch Of The Permanent Version
Timy Cyclestart 2.2.2 Sketch of the permanent version Page 6... -
Page 7: Program-Specific Adjustments
GAZ-address L ( L … all addressed displayboards). If you indicate for the countdown time 0:00h, the programs Lapcounter and Back-up will im- mediately start. The Timy waits for a start impulse at channel 0. Before receipt, you can add a new start number if necessary. -
Page 8: Operation
400Hz-tone for 1 second. Further this tone will appear at 5, 4, 3, 2 and 1 seconds (for 0,3 seconds). After the countdown has finished it resounds a 800 Hz-tone for 0.15 seconds and Timy will start the programs Lapcounter and Back-up: 0001 0:01.37...
