ALGE-Timing Timy Manual page 2
Hide thumbs
Also See for Timy:
- Instructions manual (28 pages) ,
- Manual (8 pages) ,
- Quick start manual (4 pages)
Table of Contents
Advertisement
Version: E-2001-12-20
Timy
Timy
Timy
Timy
Timy

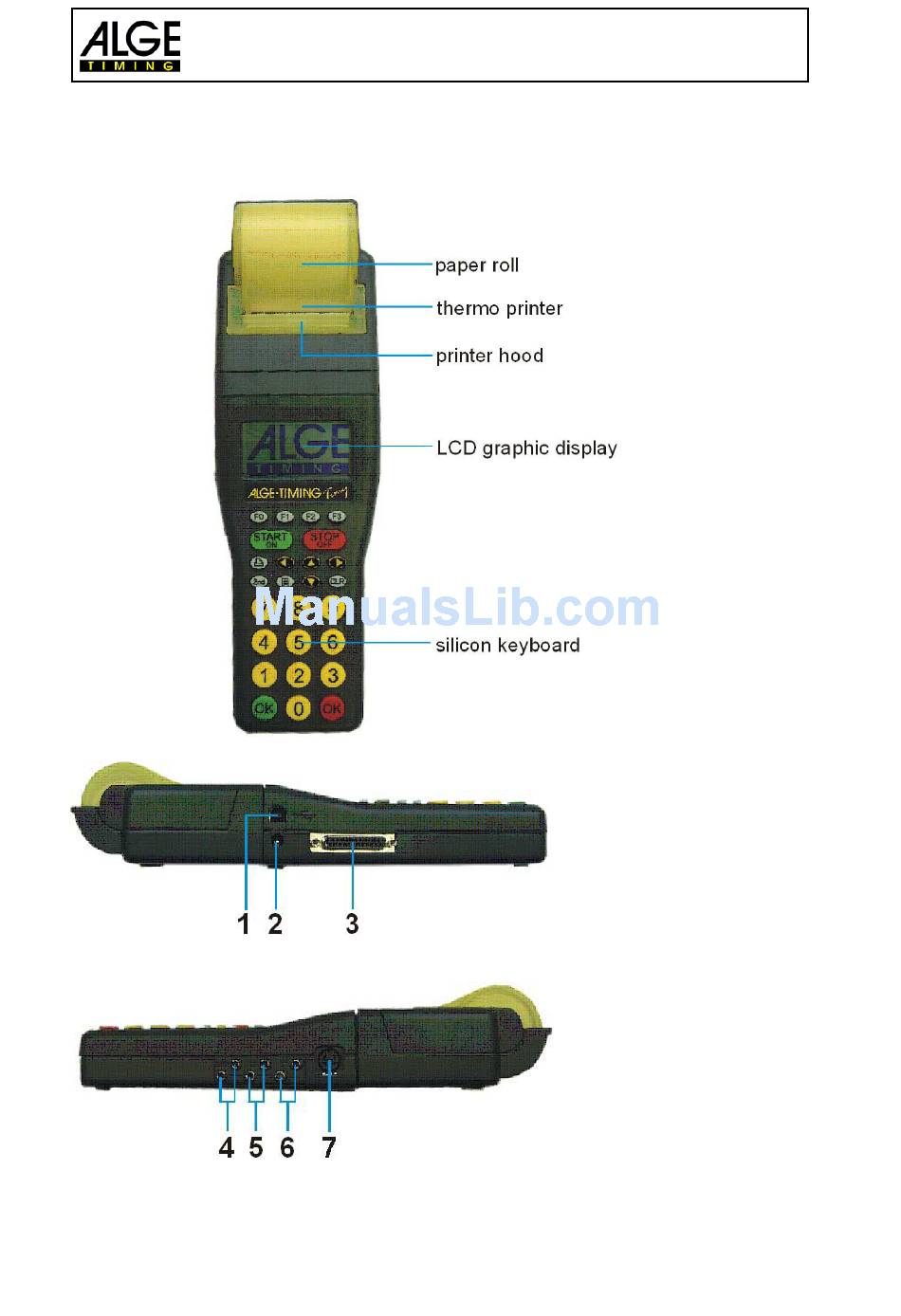

Control Elements
1 ..... USB Interface
2 ..... Charger Socket
3 ..... ALGE MultiPort
4 ..... Connection for Display Board
5 ..... Connection for Start Impulse Device (c0)
6 ..... Connection for Finish Impulse Device (c1)
7 ..... Standard ALGE-Lichtschrankenbuchse
Page 2
