Removing and replacing the battery

Before you remove the battery, ensure that the tablet is plugged in, turned off, or in
Hibernate (page 38) or Sleep mode (page 38). If you are hot-swapping the battery
(page 36), you can do so while the tablet is on and running on battery power.

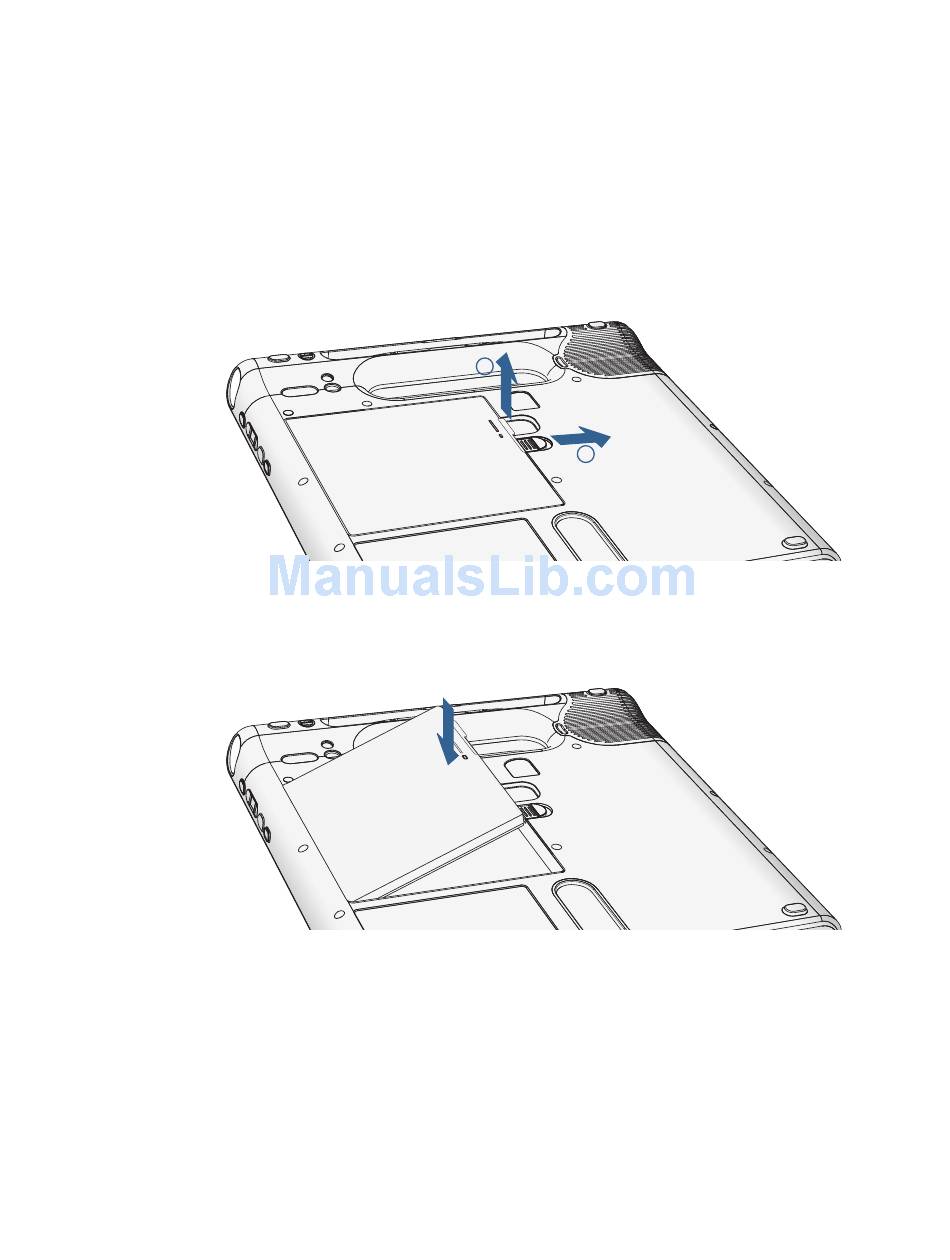

To remove the battery
1. With the back of the unit facing you, slide and hold the battery latch.
2. Insert your finger under the finger grip and remove the battery from the battery
compartment.
2
1
To replace the battery
1. Place the tabbed end of the battery into the battery compartment.
2. Press the battery down until it locks in to place.
Chapter 3 Using the System 35
