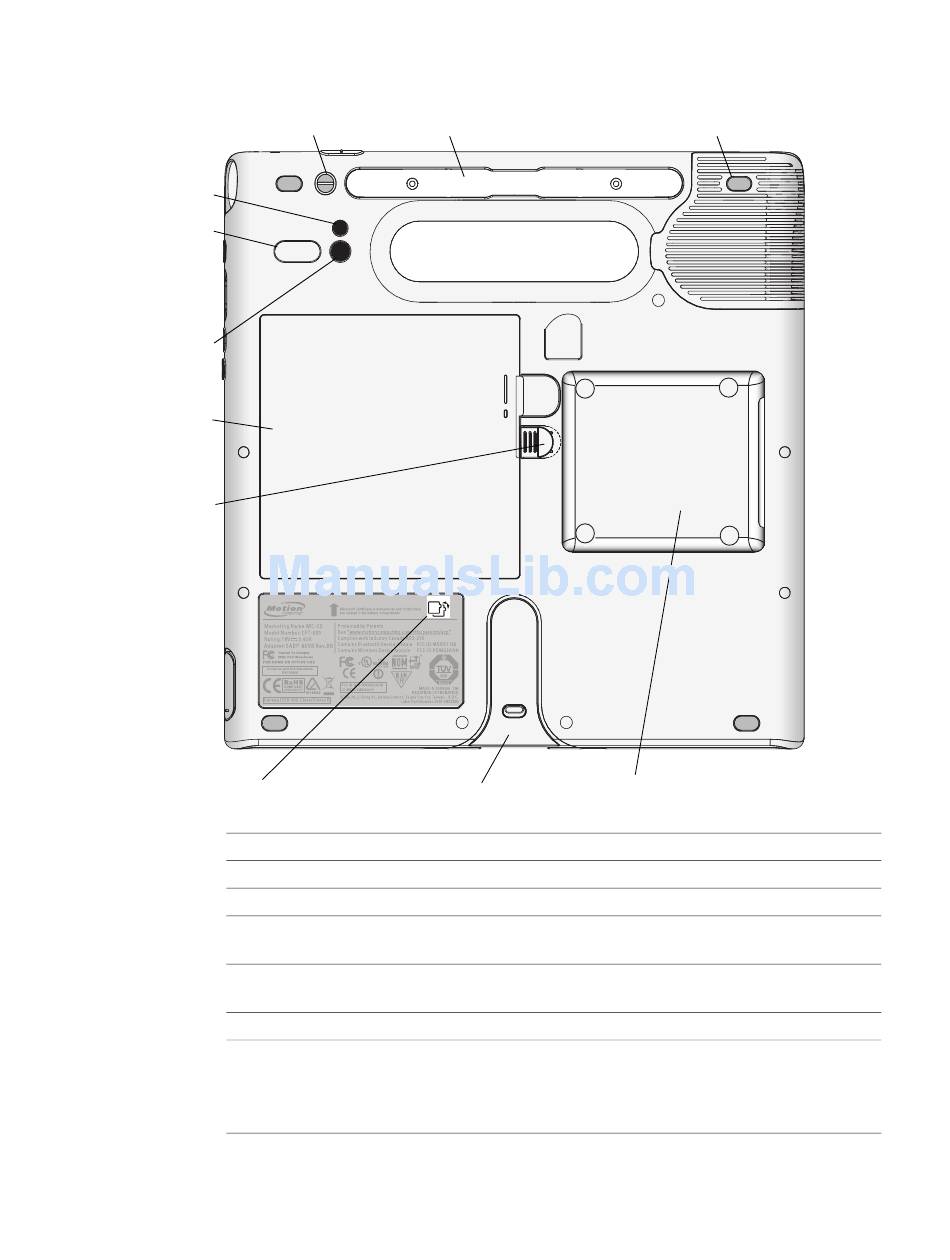

Back side

Pen tether
Camera light
Speaker
Camera lens
Battery
Battery latch
Hot-swap logo
Pen tether
Pen holder
Fan cover
Camera (optional)
lens
Camera (optional)
light
Speaker
Battery
Chapter 1 Getting Started
Pen holder
0560 0560
Docking guide
Attach the pen tether.
Store the pen when not in use (page 10).
Protects the fan assembly.
Capture images to the hard disk drive from the
documentation camera (page 15).
Provides light for the documentation camera (page 15).
Listen to audio (page 18).
Powers the system when it is not plugged in or docked
(page 20).
Note: The Microsoft
under the battery.
Fan cover
Smart card reader
® ®
Windows Certificate of Authenticity is
5
