MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 9 on page
8 for replacement instructions.
HOW TO LEVEL THE EXERCISE CYCLE
After the exer-
cise cycle has
been moved to
the location
where it will be
used, make sure
that both ends of
Levelling
front stabiliser
Foot
are touching the
floor. If the exer-
cise cycle rocks
slightly during use, turn one or both of the Levelling
feet under the front stabiliser until the rocking motion
is eliminated.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 30 seconds.
• For optimal performance of the handgrip pulse sen-
sor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth; never use alcohol,
abrasives, or chemicals.
HOW TO MOVE THE EXERCISE CYCLE
To move the exercise cycle, stand in front of the exer-
cise cycle, hold the handlebars, and place one foot on
the front stabiliser. Pull the handlebars until the exer-
cise cycle can be moved on the wheels. Carefully
move the exercise cycle to the desired location and
then lower it.
Handlebars
Place
Foot
Here
Wheel
20

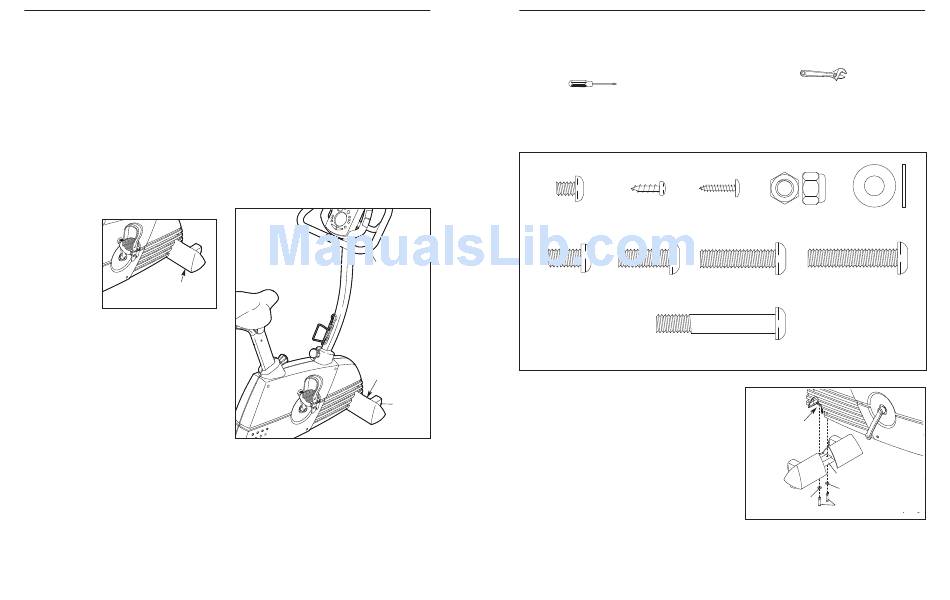

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable spanner
screwdriver .
Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on page 22. The number after the parentheses
is the quantity needed for assembly. Note: Some small parts may have been preattached for shipping. If a
part is not in the parts bag, check to see if it has been preattached.
M6 x 8mm Zinc M4 x 12mm M4 x 16mm
Button Screw (71)–1 Screw (41)–2 Screw (57)–6
M8 x 22mm Button
M8 x 14mm Button
Screw (75)–1 Screw (59)–4
M8 x 52mm Button
Screw (54)–2
1. Orient the Front Stabiliser (15) as shown. While another
person lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with two M8 x 52mm Button
Screws (54) and two M8 Washers (81).
and Phillips
M8 Nylon M8 Washer
Locknut (49)–2
(81)–2
M8 x 33mm Button M8 x 39mm Button
Screw (40)–4 Bolt (52)–2
1
1
15
81
81
54
