CanyCom CG431 Operator's Manual page 18

4
Implement Height Lever
5116M-0403-010E
5116M-0403-020E
Implement Direction Switch
Implement Aux. Transmission
Direction Switch
HI
Normal
LO
Reverse
5116M-0403-030E
Operation
Implement Lift Switch
Parking Brake Main Switch
Imp
Tra
Drive
Cen
Start
1. Parking Brake
2. Imprement Switch
STOP
3. Safety Switch "ON"
4. Start Engine

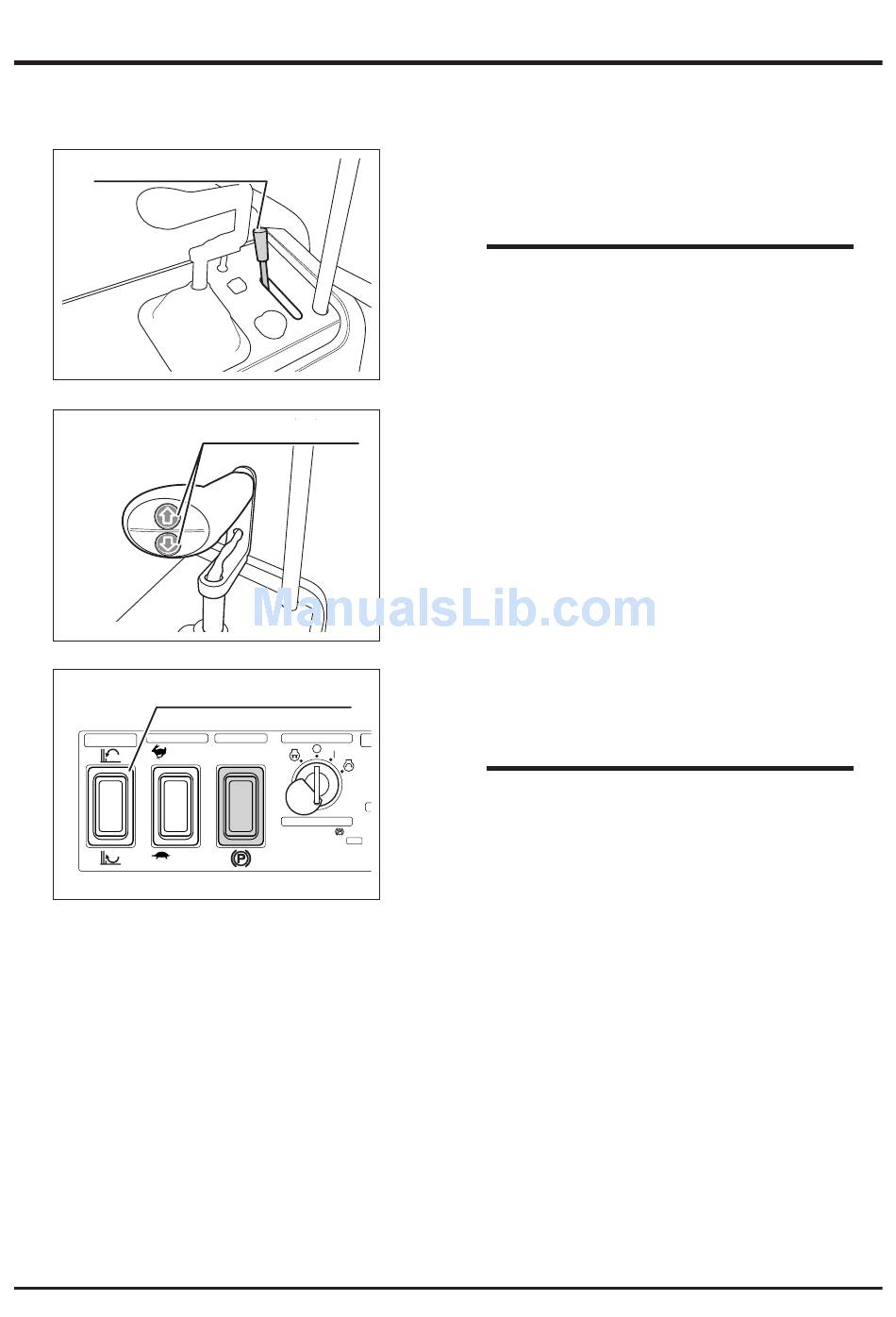

2. Use implement height lever to set the desired
implement height.
NOTE
• Implement height lever sets the height to
which implement can be lowered. It is useful
when an uniform cutting height is required.
3. Use implement lift switch to adjust the cutting
height.
4. Use implement direction switch to choose the
direction of implement rotation.
NOTE
• Working in reverse rotation can reduce the
amount of foreign objects such as pebbles
to be scattered.
• Reverse rotation can be used only when
implement is not translated to the side.
If implement is translated and rotation
direction switch is in reverse, implement
stops.
• When something gets tangled to implement,
changing the rotating direction back and
forth may help untangle.
