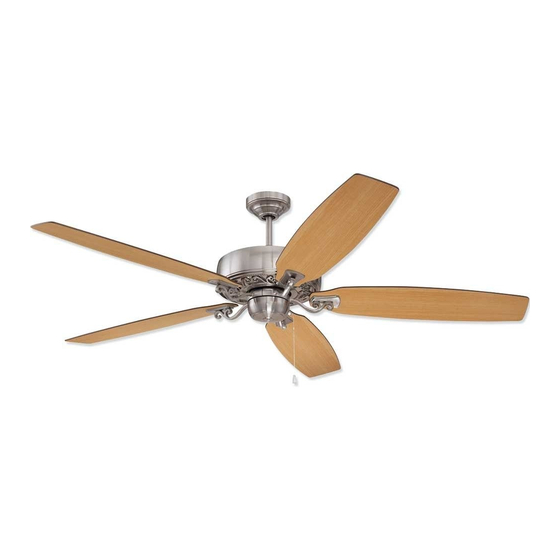

Ellington PAT64ABZC5 Installation Manual

Ceiling fan

Hide thumbs

Table of Contents

Quick Links

Download this manual

Installation Guide

For Models:

PAT64ABZC5

PAT64BNK5

E192641

net weight of fan: 27.93 lb (12.67 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the PAT64ABZC5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ellington PAT64ABZC5

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For Models: PAT64ABZC5 Table of Contents: PAT64BNK5 Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure 7 feet inches that the hanging location allows the blades a (2.13m) (76cm) clearance of 7 feet (2.13m) from the floor and 30in. (76 cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft.
Page 5: Fan Assembly. Pgs
5. Fan Assembly. If you wish to extend the hanging length of your fan, you must remove the hanging ball from the set screw set screw hole 6in. downrod provided to use with an extended stop pin downrod (sold separately). [If you wish to use the 6in.
Page 6 5. Fan Assembly. (cont.) safety cable loop wood With the hanging bracket secured to the ceiling outlet box and able to support the fan, you are joist now ready to hang your fan. Grab the fan wood screw firmly with two hands. Slide downrod through and washer opening in hanging bracket and let hanging ball rest on the hanging bracket.
Page 7: Wiring
6. Wiring. CAUTION: Be sure outlet box is properly grounded white supply wire ground and that a ground wire (GREEN or Bare) is present. (green or bare) black supply wire Make sure all electrical connections comply with Local Codes or Ordinances and the National Electrical from ceiling Code.
Page 8: Canopy Assembly
7. Canopy Assembly. hanging bracket Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging screw bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and push up.
Page 9: Switch Housing Assembly
9. Switch Housing Assembly. motor Remove 3 screws from outer edge of switch housing housing plate (save screws for later use). Remove 1 screw from fitter plate on underside of motor and partially loosen the other 2 screws. Align slotted holes in center of switch housing plate with loosened screws in fitter plate, allowing male plug from motor housing male plug...
Page 10: Testing Your Fan
10. Testing Your Fan. motor housing It is recommended that you test fan before finalizing installation. Restore power from circuit box and wall switch (if applicable). Test fan speeds with pull chain. Start at the OFF position (no blade movement). First pull will set the fan to HI. Second pull will set the fan to MEDIUM.
Page 11: Troubleshooting
Return fan, shipping prepaid, to 2. Verify that reverse switch is set completely in Craftmade/Ellington. We will repair or ship you a either direction. replacement fan, and we will pay the return shipping cost.
