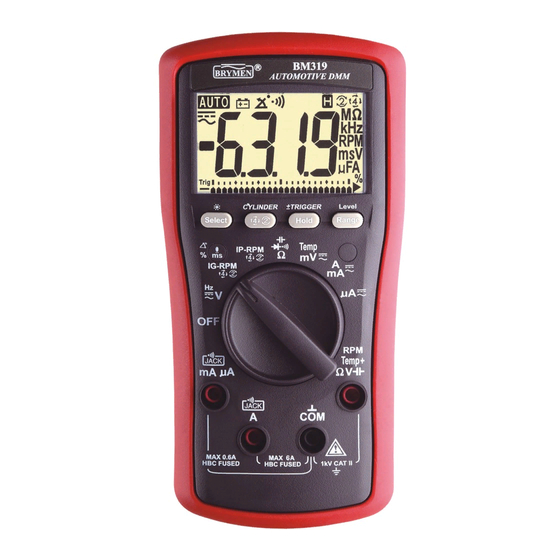

Brymen BM315s User Manual

Automotive multimeter
Hide thumbs Also See for BM315s:
Table of Contents

Advertisement

Quick Links

USER'S
MANUAL
BM315s
BM319s
Automotive
Multimeter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BM315s and is the answer not in the manual?

Questions and answers

Related Manuals for Brymen BM315s

Summary of Contents for Brymen BM315s

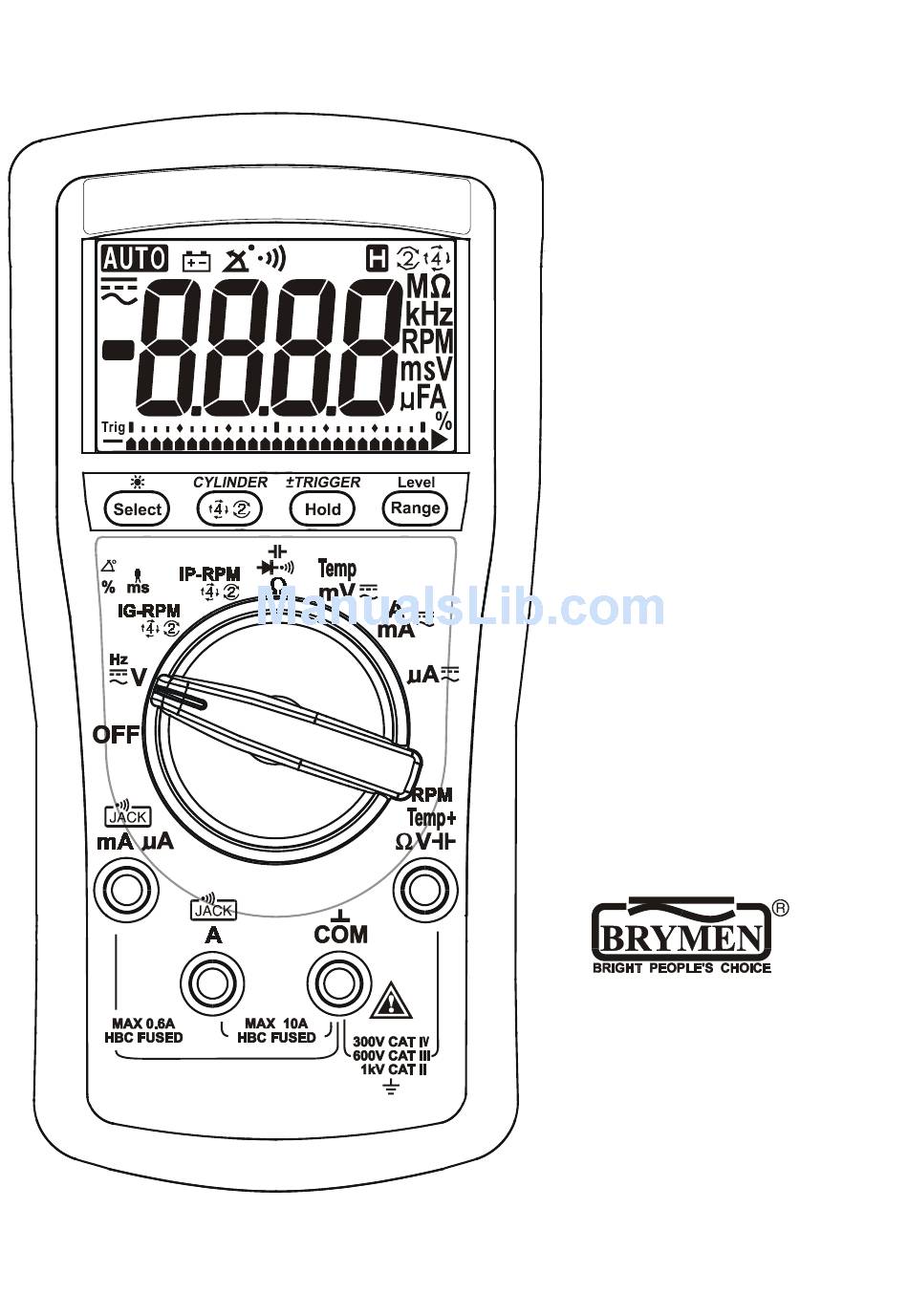

  • Page 1 USER'S MANUAL BM315s BM319s Automotive Multimeter...
  • Page 2 1) SAFETY Terms in this manual identifies conditions and actions that could result in serious injury or even death to WARNING the user. identifies conditions and actions that could cause damage or malfunction in the CAUTION instrument. This manual contains information and warnings that must be followed for operating the instrument safely and maintaining the instrument in a safe operating condition.

  • Page 3: International Electrical Symbols

    INTERNATIONAL ELECTRICAL SYMBOLS Caution ! Refer to the explanation in this Manual Caution ! Risk of electric shock Earth (Ground) Double Insulation or Reinforced insulation Fuse AC--Alternating Current DC--Direct Current 2) CENELEC DIRECTIVES The instruments conform to CENELEC Low-voltage directive 2006/95/EC and Electromagnetic compatibility directive 2004/108/EC 3) PRODUCT DESCRIPTION Note: Top of the line model is used as representative for illustration purposes.

  • Page 4: Operation

    Analog bar-graph The analog bar graph provides a visual indication of measurement like a traditional analog meter needle. It is excellent in detecting faulty contacts, identifying potentiometer clicks, and indicating signal spikes during adjustments. Average sensing RMS calibrated RMS (Root-Mean-Square) is the term used to describe the effective or equivalent DC value of an AC signal.
  • Page 5 function. 6V function range has the highest and the 1000V range has the lowest. It is recommended to first measure the signal voltage (or current) level then activate the Hz function in that voltage (or current) range to automatically set the most appropriate trigger level. You can also press the Level (RANGE) button momentarily to select another trigger level manually.
  • Page 6 shorted diode (defective). An OL indicates an open diode (defective). Reverse the test leads connections (reverse biased) across the diode. The digital display shows OL if the diode is good. Any other readings indicate the diode is resistive or shorted (defective). DCmV, ACmV &...
  • Page 7 IG-RPM, DWELL , DUTY % & -ms functions Press the SELECT button momentarily to select the subject functions in sequence. Last selection will be saved as power up default for repeat measurement convenience. IG-RPM M function button momentarily to select through RPM for 4-stroke, RPM Press for 2-stroke and...
  • Page 8 display the cylinder setting and press momentarily again within one second to select the number of cylinders from 1 through 12 to match the engine under test Trigger level defaults at 3. Press the Level (RANGE) button momentarily to select another trigger level.
  • Page 9 -ms FUEL INJECTION DETECTOR function Trigger level defaults at 3. Press the Level (RANGE) button momentarily to select another trigger level. If the reading becomes unstable, select lower sensitivity to avoid electrical noise. If the reading shows zero, select higher sensitivity. Number of Bar-graph pointer is used to indicate sensitivity selected.
  • Page 10 IP-RPM M function button momentarily to select through RPM for 4-stroke, RPM Press for 2-stroke and DIS, and RPM M for special 2-stroke waste ignition engine Trigger level defaults at 3. Press the Level (RANGE) button momentarily to select another trigger level.

  • Page 11: Maintenance

    Note: Manual ranging feature is not available in Hz, , RPM, ms, DWELL & Duty functions. Set Beeper Off Press the RANGE button while turning the meter on to temporarily disable the Beeper feature. Turn the rotary switch OFF and then back on to resume. Beep-Jack™...

  • Page 12: General Specification

    If the instrument voltage-resistance input terminal has subjected to high voltage transient (caused by lightning or switching surge to the system) by accident or abnormal conditions of operation, the series fusible resistors will be blown off (become high impedance) like fuses to protect the user and the instrument.
  • Page 13 Ed. 3.0 to Category II 1000V, CAT III 600V and CAT IV 300V AC & DC Transient Protection: 6kV (1.2/50µs surge) Terminals (to COM) Measurement Category: V / mAµA / A: Category II 1000V, CAT III 600V and CAT IV 300V AC & DC. E.M.C.
  • Page 14 Electrical Specification Accuracy is given as +/- (% of reading digits + number of digits) or otherwise specified @ 23 C +/- C and less than 75% R.H. DC Voltage Capacitance (Model 319s only) RANGE Accuracy RANGE Accuracy 60.00mV 0.4%+3d 2.0%+5d 6.000µF, 600.0mV...
  • Page 15 Temperature (Model 319s only) DWELL RANGE Accuracy RANGE Accuracy C ~ 1000 0.5% + 3d ~ 360.0 /krpm+1d F ~ 1832 0.5% + 6d 0.0%~100.0% 0.04%/krpm/cyl+2d K type thermocouple range & accuracy not Specified ranges depend on engine rpm and included number of Cylinders (cyl) *Nine selectable Cylinders: 1, 2, 3, 4, 5, 6, 8,...

  • Page 16: Limited Warranty

    BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes no risk for damage in transit. BRYMEN will, at its option, repair or replace the defective product free of charge. However, if BRYMEN determines that the failure was caused by misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling, you will be billed for the repair.

This manual is also suitable for:

Bm319s
