Page 1
USER'S MANUAL Standard-version BM810 & BM510 Series X-version BM810X & BM510X Series CF-version BM810CF & BM510CF Series...
Page 2
This manual is applicable to all meter protection versions or otherwise specified 1) SAFETY Terms in this manual WARNING identifies conditions and actions that could result in serious injury or even death to the user. CAUTION identifies conditions and actions that could cause damage or malfunction in the instrument.
connected to the low voltage installation. Examples are measurements on household appliances, portable tools and similar equipment. WARNING To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. To avoid electrical shock hazard, observe the proper safety precautions when working with voltages above 60 VDC or 30 VAC rms.

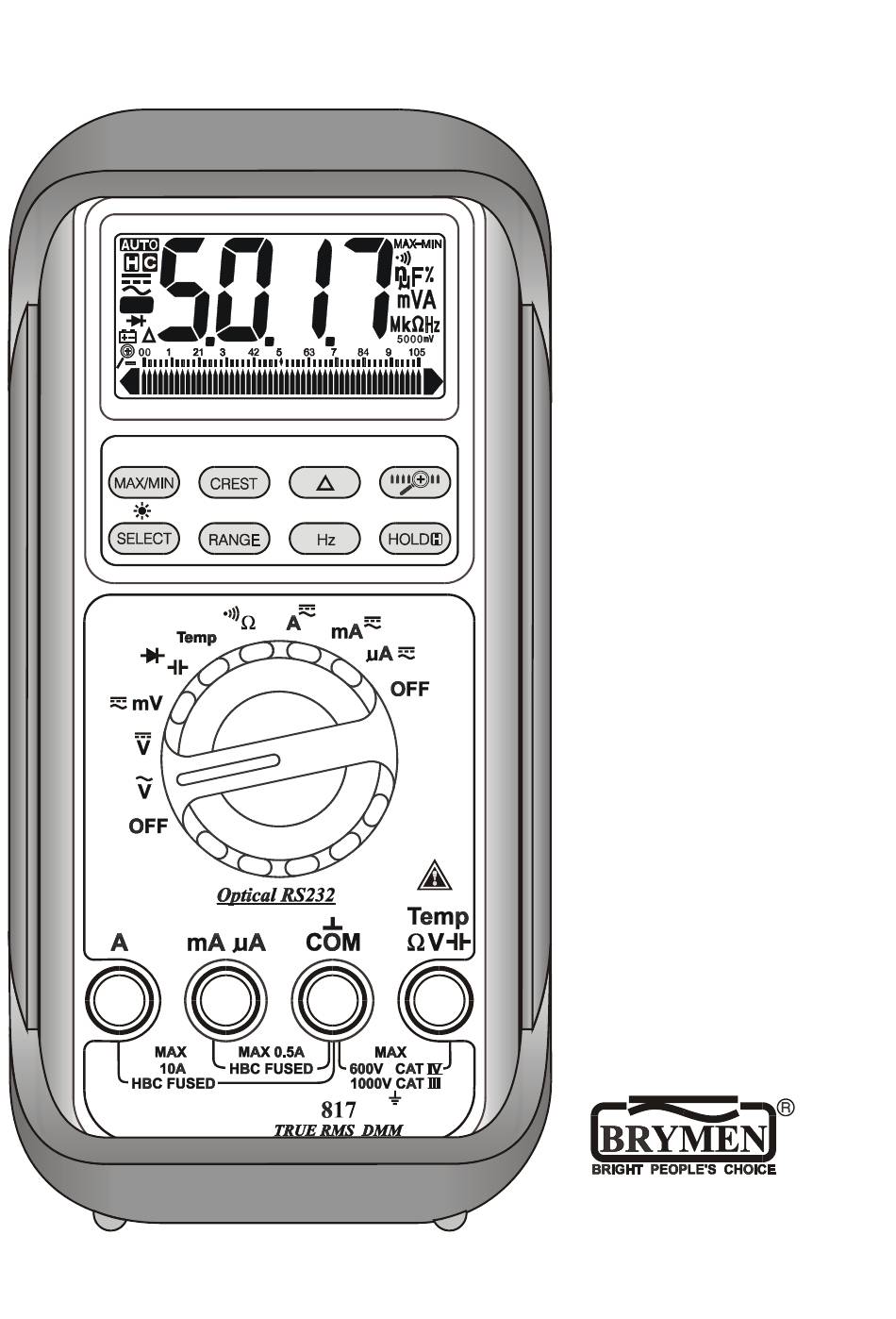

3) PRODUCT DESCRIPTION Panel Illustration 1) 3-4/5 digits 5000 counts LCD display 2) Push-buttons for special functions & features 3) Selector to turn the Power On or Off and Select a function 4) Input Jack for 10A (20A for 30sec) current function 5) Input Jack for all functions EXCEPT current (µA, mA, A) functions...
Page 5
Analog bar-graph The analog bar graph provides a visual indication of measurement like a traditional analog meter needle. It is excellent in detecting faulty contacts, identifying potentiometer clicks, and indicating signal spikes during adjustments. Average sensing RMS calibrated RMS (Root-Mean-Square) is the term used to describe the effective or equivalent DC value of an AC signal.
CMRR (Common Mode Rejection Ratio) Common mode voltage is voltage present on both the COM and VOLTAGE input terminals of a DMM, with respect to ground. CMRR is the DMM's ability to reject common mode voltage effect that can cause digit rattle or offset in voltage measurements.
Page 7
Capacitance, Diode test function Default at . Press SELECT button momentarily to select Diode test function. CAUTION Discharge capacitors before making any measurement. Large value capacitors should be discharged through an appropriate resistance load. Normal forward voltage drop (forward biased) for a good silicon diode is between 0.400V to 0.900V.
Page 8
Temperature function (BM815, BM817, BM511 & BM515 only) Press SELECT button momentarily to toggle between °C and °F readings, and the new setting will be saved automatically in the non-volatile memory as power up default. Note: Be sure to insert the banana plug K-type temperature bead probe Bkp60 with correct polarities.
Page 9
Ω Resistance, Continuity functions Default at Ω. Press SELECT button momentarily to select Continuity function that is convenient for checking wiring connections and operation of switches. A continuous beep tone indicates a complete wire. CAUTION Using resistance and continuity function in a live circuit will produce false results and may damage the instrument.
Page 10
Auto leads resistance calibration When entering the 50Ω range manually by RANGE button for high precision low resistance measurement, this feature will prompt you to short the inputs for calibration. The display shows “Shrt”. Simply short the leads for about 3 seconds until the display shows zero, then the resistance in the leads and in the internal protection circuitry of the meter is compensated automatically.
Page 11
µA, mA, and A Current functions Default at DC. Press SELECT button momentarily to select AC. *Note: When measuring a 3-phase system, special attention should be taken to the phase to phase voltage which is significantly higher than the phase to earth voltage. To avoid exceeding the voltage rating of the protection fuse(s) accidentally, always consider the phase to phase voltage as the working voltage for the protection fuse(s).
Page 12
50ms MAX/MIN at fast 20/s measurement mode (BM815 & BM817 only) Press MAX/MIN button momentarily to activate MAX/MIN recording mode. The LCD annunciators “MAX MIN” turn on, and the reading update rate will be increased to 20/second. The meter beeps when new maximum or minimum reading is updated. Press the button momentarily to read throughout the Maximum (MAX), Minimum (MIN), and Maximum minus Minimum (MAX-MIN) readings.
Page 13
Backlighted display Press the SELECT button for 1 second or more to turn on or off the display backlight function. The backlight will also be turned off automatically after 30 seconds to extend battery life. Hold The hold function freezes the display for later view. Press the HOLD button momentarily to activate or to exit the hold function Zoom 5x analog pointer (BM815 &...
Page 14
Relative mode (BM815 & BM817 only) Relative zero allows the user to offset the meter consecutive measurements with the displaying reading as the reference value. Practically all displaying readings can be set as relative reference value including MAX/MIN feature readings. Press the button momentarily to activate and to exit relative zero mode.
Page 15
Data Logging mode (BM511 & BM515 only) Press the Start button for 1 second or more to start “Strt” or to stop “StoP” the data logging mode. Press the SELECT button momentarily to toggle the LCD display to the measuring data or the logged data item number. Press the Start button momentarily to pause or to continue.
Page 16
To recall, switch on the meter, then press the start, up, or down arrow button momentarily to “CALL” the logged data. The LCD annunciator “C” will be flashing to indicate on screen logged data review. The logged data can also be downloaded to a PC computer through the meter RS232C capability with the additional BR51X PC interface kit.
Page 17
4) Press the up (or down) arrow button momentarily while press-and-hold the HOLD button to search throughout the turning points (max, min, max, min, …etc) of the logged data. The LCD annunciator “MAX” or “MIN” will be flashing to indicate a downward or upward turning point.
Auto Power Off (APO) The Auto Power Off (APO) mode turns the meter off automatically to extend battery life after approximately 17 minutes of no activities. Activities are specified as: 1) Rotary switch or push button operations, and 2) Significant measuring readings of above 10% of range or non-OL Ω...
Page 19
Battery and Fuse replacement Battery use: Single 9V battery NEDA1604, JIS006P or IEC6F22; or 9V alkaline battery NEDA1604A, JIS6AM6 or IEC6LF22 Standard-version BM810 & BM510 series fuses: Fuse (FS1) for µAmA current input: 0.63A/500V, IR 200kA, F fuse; Fuse (FS2) for A current input: 12.5A/500V, IR 20kA, F fuse X-version BM810X &...
BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes no risk for damage in transit. BRYMEN will, at its option, repair or replace the defective product free of charge. However, if BRYMEN determines that the failure was caused by misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling, you will be billed for the repair.
