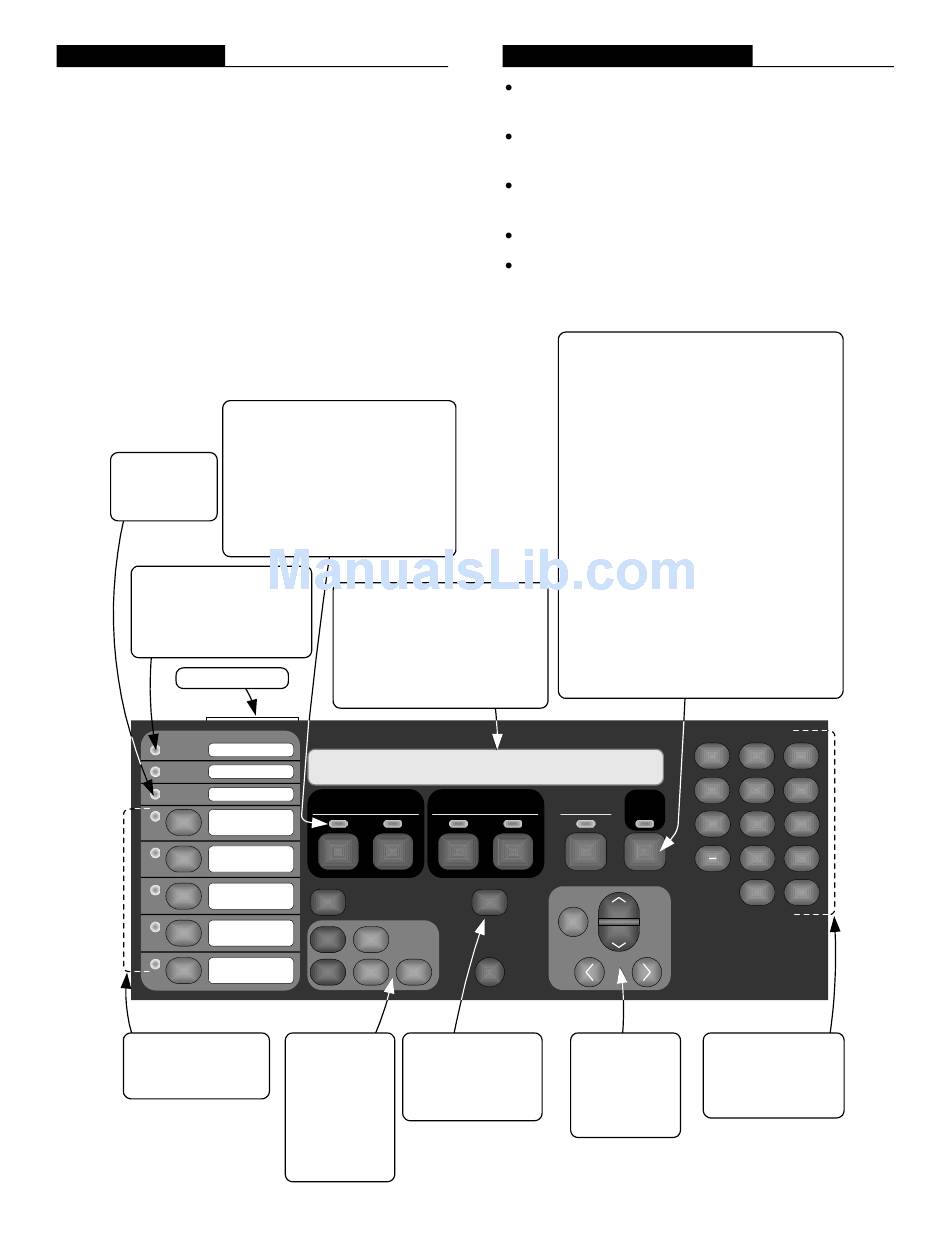

Operator Interface
Convenient Status Information. With the locking
door closed, the glass window allows viewing of the
display, status LEDs, and available operator switches.
Features include a two-line by 40-character, wide viewing
angle (super-twist) LCD with status LEDs and switches as
shown in the illustration below.
LED indicators describe the general category of activity
being displayed with the LCD providing more detail. For
the authorized user, unlocking the door provides access to
the control switches and allows further inquiry by
scrolling the display for additional detail.
SIX SYSTEM STATUS INDICATOR LEDs
provide system status indications in addition
to LCD information, LEDs flash to indicate
ULC SYSTEMS
the condition and then when acknowledged,
require designating
remain on until reset :
Fire Alarm & Priority 2 Alarm, red LED
a Ground Fault
indicator
Supervisory & Trouble, yellow LED
Alarm Silenced, yellow LED
AC Power, green LED (on for normal)
THREE PROGRAMMABLE LEDs
provide custom labeling, the top
two LEDs are selectable as red or
yellow, the bottom LED is
selectable as green or yellow
Custom label insert
Waterflow-East
Waterflow-West
Ground Fault
Manual Evac
City Disconnect
Elevator Recall
FIVE PROGRAMMABLE
FUNCTION SWITCHES,
each with a yellow LED
indicator
2 X 40 LCD READOUT, LED backlighted
during normal conditions and abnormal
operating conditions, provides up to 40
characters for custom label information
FIRST ALARM DISPLAY: Operation can
be selected for maintained display of first
alarm until acknowledged
SYSTEM IS NORMAL
08:23:43 am
ALARMS
SYSTEM WARNINGS
Fire Alarm
Priority 2 Alarm
Supervisory
Fire Alarm
Priority 2
Supv
Ack
Ack
Ack
Event
Time
On
Enable
Arm
Off
Disable
Auto
Disarm
POINT STATUS
ADDITIONAL
CONTROL KEYS:
FUNCTION KEYS:
Point Enable and
Event Time Request
Disable
More Information Request
Force On or Arm
Lamp Test
Force Off or Disarm
Return On/Off or
Arm/Disarm to Auto
Mode
Operator Interface Features
Convenient and extensive operator information is
provided using a logical, menu-driven display
Multiple automatic and manual diagnostics for
maintenance reduction
History Logs are available from the LCD or capable of
being printed
Convenient PC programmer label editing
Password access control
FIRE ALARM ACK acknowledges a Fire Alarm
condition, logs the acknowledge, and silences the
operator panel and all annunciator tone-alerts
PRIORITY 2 ACK acknowledges a Priority 2 Alarm
condition, logs the acknowledge, and silences the
operator panel and all annunciator tone-alerts
SUPV ACK acknowledges system supervisory
conditions, logs the acknowledge, and silences the
operator panel and all annunciator tone-alerts
TROUBLE ACK acknowledges system troubles, logs
the acknowledge, and silences the operator panel and
all annunciator tone-alerts
ALARM SILENCE causes audible notification
appliances to be silenced (depending on panel
programming) typically after evacuation is complete and
while alarm source is being investigated; may allow
visible notification to continue (strobes still flashing)
SYSTEM RESET restores control panel to normal when
all alarmed inputs are returned to normal
WED 01-OCT-03
AC Power
Trouble
Alarm Silenced
Trouble
Alarm
System
Ack
Silence
Reset
More
Info
Previous
Menu
Next
Lamp
Test
LCD NAVIGATION
CONTROL:
Menu selection
Vertical and
Horizontal position
selection buttons
3
A B C
D E F
G H I
ZONE
SIG
AUX
1
2
3
J K L
M N O
P Q R
FB
IO
IDNet
4
5
6
S T U
V W X
Y Z /
P
A
L
7
8
9
'SP' ( )
, 0 :
NET
ADDR
DEL
0
Enter
C/Exit
NUMERIC KEYPAD for
point category and point
selection (alphabet
characters are not used at
this time)
S4100-0036-4 10/2003
