HP ProLiant MicroServer Gen8 User Manual page 33

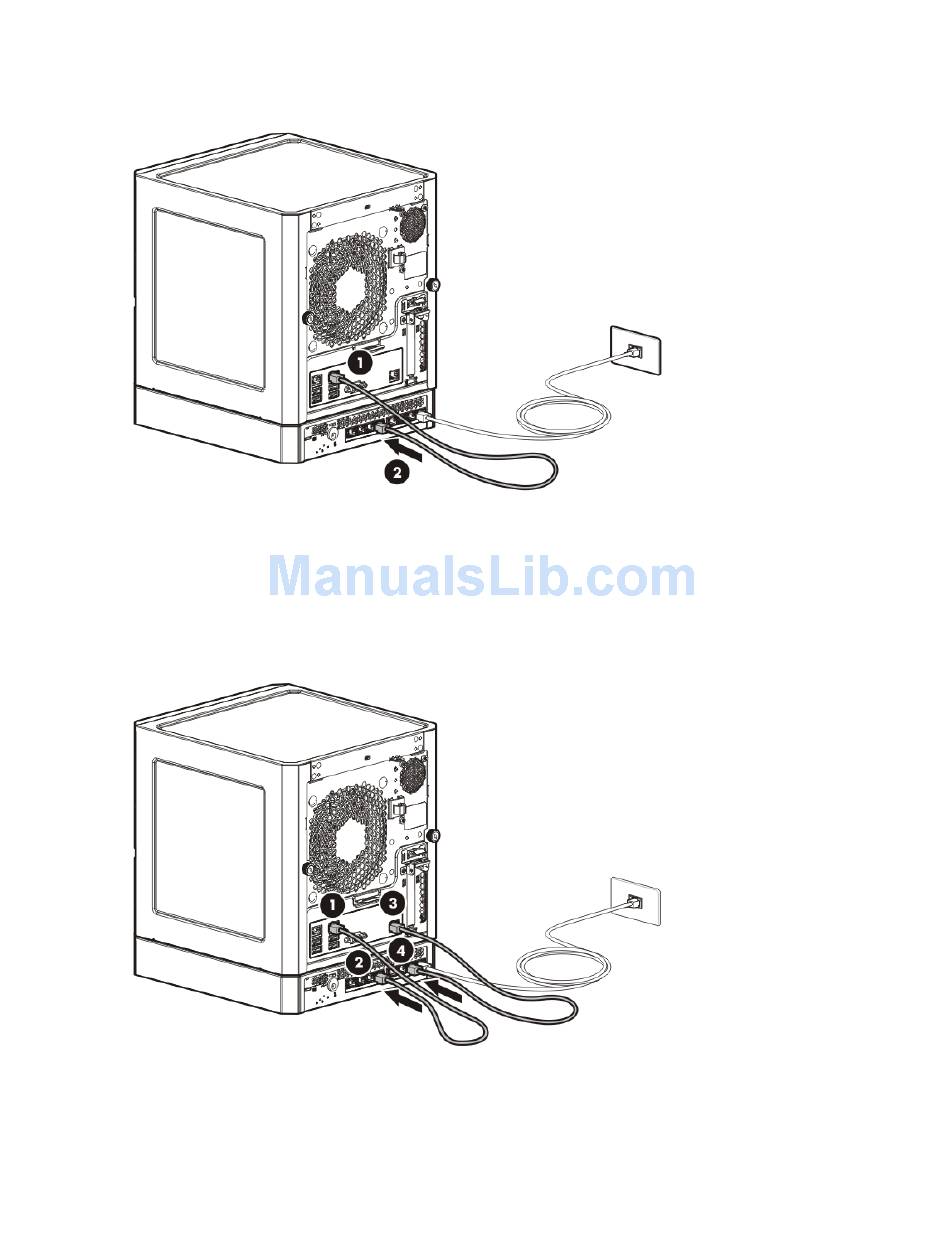

To establish a simple Ethernet connection:
Connect an Ethernet cable to the server NIC connector 1 or 2.
1.
Connect the cable to any switch LAN port.
2.
To establish an Ethernet connection with iLO functionality by using the dedicated iLO connector:
Connect an Ethernet cable to the server NIC 1 or NIC 2 connector, and then connect the cable to a
1.
switch LAN port.
Connect the cable to any switch LAN port.
2.
Connect an Ethernet cable to the server dedicated iLO connector, and then connect the cable to any
3.
switch LAN port.
To establish an Ethernet connection with iLO functionality by using the shared iLO connector:
Enable the shared iLO functionality of the server
1.
MicroServer" on page 42).
("Enabling the shared iLO functionality on the
Setup 33
