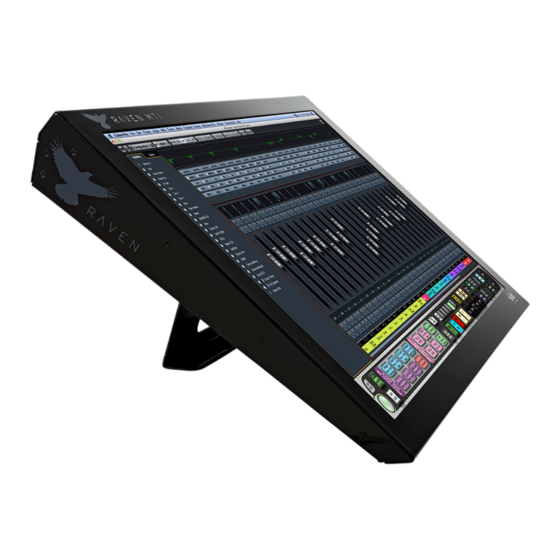

Raven MTi User Manual

Cubase/nuendo
Hide thumbs Also See for MTi:
Table of Contents

Advertisement

Quick Links

Download this manual
MTi
CUBASE & NUENDO USER GUIDE & BATCH COMMAND SYSTEM MANUAL
RAVEN Version 3.0.0
Updated 10/24/2015 - REV-B
RAVEN MTI CUBASE/NUENDO USER MANUAL 1

Advertisement

Table of Contents
loading

Related Manuals for Raven MTi

Summary of Contents for Raven MTi

  • Page 1 CUBASE & NUENDO USER GUIDE & BATCH COMMAND SYSTEM MANUAL RAVEN Version 3.0.0 Updated 10/24/2015 - REV-B RAVEN MTI CUBASE/NUENDO USER MANUAL 1...

  • Page 2: Table Of Contents

    RAVEN MTi2 Dimensions .................................. 1 4 Attaching RAVEN MTi-1 To Its Stand ............................ 1 5 Connecting RAVEN MTi-1 to your computer ........................ 1 8 MTi Software Installation and Touch Calibration ........................ 2 1 MTi2 CALIBRATION ..................................... 2 6 Connecting RAVEN MTi to Pro Tools ............................ 3 0 Connecting RAVEN MTi to Cubase or Nuendo ........................ 3 1...

  • Page 3: Important Safety Notes Before You Start

    This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your RAVEN MTi. This symbol indicates there are important operating and maintenance instructions in the literature accompanying your RAVEN MTi. 1. Read these instructions 2. Keep these instructions 3.
  • Page 4 Electrical rating: INPUT 100-240 VAC, 50/60 Hz, 1.2A, OUTPUT: 12VDC, 3.33A Moving Make sure the product is turned off, unplugged, and all cables have been removed. It will take a minimum of two people to move your RAVEN MTi, although three are recommended. Servicing Servicing of the RAVEN MTi is to be done by qualified service personnel only.
  • Page 5 You must wait a full 6 seconds before the source will change. Also there is no RGB input for the MTi. Although it will show as a source, it should be ignored. It will take around 14 seconds to switch to the RGB source, just be patient and move on to DVI when the RGB source is selected.

  • Page 6: Warranty Information

    1) normal wear and tear, 2) improper or unauthorized use or repair, 3) customer fault or negligence, 4) natural or manmade disaster, or 5) causes external to the products including, but not RAVEN MTI CUBASE/NUENDO USER MANUAL 6...
  • Page 7 Technology. Customer is responsible for any damage or loss incurred due to improper packaging or labeling. Customer is required to pay shipping/handling one way for warranty product returns and applicable custom duties, V.A.T. and other associated taxes and charges for international service. RAVEN MTI CUBASE/NUENDO USER MANUAL 7...

  • Page 8: Maintenance And Care

    Be sure to not spray cleaner on the RAVEN MTi directly, rather spray the cleaner on to a cleaning cloth away from the RAVEN MTi, then use the dampened cloth on the RAVEN MTi’s metal parts.

  • Page 9: Revitalizing The Raven Mti Glass

    Revitalizing the RAVEN MTi Glass The RAVEN MTi comes out of the box with a NanoGlide™ coating that repels oil, water, and leaves the surface incredibly smooth to the touch. After some use, it may be necessary to revitalize to bring the glass back to its original slickness.
  • Page 10 Using a microfiber cloth, clean the RAVEN MTi screen to remove dust and fingerprints. Spray the revitalizer solution directly onto the RAVEN MTi glass. It should take approximately six sprays to cover the glass completely. IMPORTANT Do not spray so much that the solution drips down the screen. Excess moisture could damage the display and touch system.
  • Page 11 FROM THE SCREEN. The coating on the glass leaves a very thin residual layer of Revitalizer, which significantly adds to the slickness and oil repellency. Removing all of the product will leave the glass less smooth than desired. RAVEN MTI CUBASE/NUENDO USER MANUAL 11...
  • Page 12 OFF, the glass may appear cloudy. This is OK. You should not be able to notice this layer when the screen is turned ON. If you do, wipe gently until you cannot see the oil layer. Your RAVEN MTi is now back to its original slickness! RAVEN MTI CUBASE/NUENDO USER MANUAL 12...

  • Page 13: Getting Started

    Getting Started System Requirements The RAVEN MTi will run on MAC computers. We recommend these specifications for optimal performance. • OSX 10.7 (Lion,) OSX 10.8 (Mountain Lion,) and OSX 10.9 (Mavericks) • OSX 10.10 (Yosemite) will function with the RAVEN software, however it’s important to note multiple simultaneous touches can cause graphics to flicker when using more than three simultaneous touches.

  • Page 14: Raven Mti-1 Dimensions

    RAVEN MTi-1 Dimensions NOTE: If you are creating custom furniture for your RAVEN MTi, CAD drawings with precise dimensional information may be available on request. RAVEN MTi2 Dimensions RAVEN MTI CUBASE/NUENDO USER MANUAL 14...

  • Page 15: Attaching Raven Mti-1 To Its Stand

    MTi body. Attach the stand to the back of the MTi using the four screws and to prop the MTi to its inclined state. NOTE: Do not attempt to plug in any cords until the stand has been attached to the body.
  • Page 16 Steps To Attach The MTi Stand: Align the provided top two arrows on the MTi stand with the top two holes on the MTi body. Attach the stand with four screws in the provided holes, still maintaining the arrow’s alignment.
  • Page 17 37˚ Angle: 40˚ Angle: RAVEN MTI CUBASE/NUENDO USER MANUAL 17...

  • Page 18: Connecting Raven Mti-1 To Your Computer

    43˚ Angle: Connecting RAVEN MTi-1 to your computer RAVEN MTI CUBASE/NUENDO USER MANUAL 18...
  • Page 19 Mini DVI to DVI adapters may be used to connect to your computer, but these are not included.) Connect USB to any available slot on your computer. Turn computer on and computer will sync to display. In System Preferences, click Displays and select the RAVEN MTi as your main display. RAVEN MTI CUBASE/NUENDO USER MANUAL 19...
  • Page 20 RAVEN MTi, using the RAVEN MTi Installer Package. RAVEN MTi-2: RAVEN MTi connects to your computer using a HDMI and USB connection. Attach HDMI video cable to the first slot on your computer. (Note, adapters may be used to connect to your computer, but these are not included.) Connect USB to any available slot on your computer.

  • Page 21: Mti Software Installation And Touch Calibration

    In System Preferences, click Displays and select the RAVEN MTi as your main display. IMPORTANT: As in many studios, your computer may be located in a room far away from your console. For HDMI cable lengths over 15ft, a HDMI signal booster is required. This will ensure the video signal reaches the display with no signal degradation.
  • Page 22 After calibration is achieved, test on desktop applications and software. The ● user should be able to open and close windows with ease. RAVEN MTi should not be used without confirmation of proper calibration. ● To confirm proper calibration, simply go to the Finder and touch random points on...
  • Page 23 RAVEN Software for DUAL functionality. This again, only is to be used with two RAVEN’s. If using multiple displays that are not RAVEN’s, you should still use the regular version of the RAVEN software.
  • Page 24 Now, you will need to configure Multi-Touch for two RAVEN’s. Hit, “Configure Composite.” Follow the instructions on the white screens being: Press and hold the left display and then release. Then repeat the press, hold and release for the right display.
  • Page 25 There will be four corners to calibrate. Once completed, hit “Ok.” Correct Touch Angle Incorrect Touch Angle USING RAVEN DUAL: Set the Left Display as your Mixer and Right Display as your Edit Window. To flip the displays, simply hit the “1-2/2-1” display button by default on the Floating Toolbar.

  • Page 26: Mti2 Calibration

    To Calibrate for the RAVEN DUAL setup, perform the same process with the two RAVEN’s attached. Note: Use your left hand for the left display and your right hand for the right display when calibrating, sitting in the center of the two RAVENs.
  • Page 27 3. Next, hit “Show All” on the top left of the window and hit “Security & Privacy.” 4. On the “General” tab, be sure the option for Allow apps downloaded from: “ANYWHERE” is selected as shown in the picture below. RAVEN MTI CUBASE/NUENDO USER MANUAL 27...
  • Page 28 Finder window and add the following applications to the area on the right for allowing apps to control your computer: - Automator - Cubase 8 and/or Nuendo 7 - RAVEN MTi - Terminal Note: Terminal is located within your “Utilities” folder within the “Applications” folder.
  • Page 29 6. For users on OS X 10.7 and 10.8 only, on the main System Preferences window, select “Accessibility” from the menu options and confirm “Enable access for assistive devices” is checked to the “ON” state as imaged below. RAVEN MTI CUBASE/NUENDO USER MANUAL 29...

  • Page 30: Connecting Raven Mti To Pro Tools

    V-Control Pro app and having it automatically launch with the Finder. Once RAVEN MTi is launched it will sync with your current session, and make all connections automatically. The mouse will not function in the RAVEN Mixer window, however, touch will control it from this point forward.

  • Page 31: Connecting Raven Mti To Cubase Or Nuendo

    Connecting RAVEN MTi to Cubase or Nuendo In order for RAVEN MTi to effectively communicate with Cubase or Nuendo, use the following setup instructions. NOTE: The V-Control Pro app is included in your RAVEN MTi installer. Launch V-Control Pro. Launch Cubase 8 or Nuendo 7.
  • Page 32 Note: You do not need to configure an input or output for V-Control Pro. Once completed, close the Device Setup window and your RAVEN is now configured with Cubase and/or Nuendo. If you have calibrated for the RAVEN Dual setup, locate your Cubase or Nuendo RAVEN MTI CUBASE/NUENDO USER MANUAL 32...

  • Page 33: Installing Raven Mti For Cubase & Nuendo

    Setting Up & Aligning Cubase with RAVEN To setup and align the Cubase or Nuendo Mixer with the RAVEN Internal Mixer manually: IMPORTANT: NUENDO DOES NOT HAVE AN INTERNAL MIXER.
  • Page 34 Now, on the “Channel Selector” tab, we’ll first grab the bottom of the Mix Window here and align the Cubase Yellow or White outline, with the RAVEN Red Guideline. Then, we’ll align the top of the track faders window with the provided red guideline at the top.
  • Page 35 *This is an example of misalignment. RAVEN MTI CUBASE/NUENDO USER MANUAL 35...

  • Page 36: Raven Mti Cubase & Nuendo Software Features

    RAVEN MTi Cubase & Nuendo Software Features RAVEN MTi is loaded with many custom features made for a touch screen. The RAVEN Internal Mixer (Cubase Only) The RAVEN Toolbars provide controls typical of most DAWs. From the RAVEN Mixer you are able to have Multi-Touch access to all of the controls of the mixer.

  • Page 37: The Raven External Mixer

    The RAVEN External Mixer RAVEN Channel Strip The RAVEN channel strip is where you find your controls such as faders, solos, mutes, pans, inserts, and automation modes Fine Faders: Tap the DB display window to put single channels into fine mode.

  • Page 38: Automation Modes

    Automation Modes Automation on the RAVEN Internal Mixer (Cubase Only): The “R” & “W” Read & Write automation buttons can be swiped to activate. RAVEN MTI CUBASE/NUENDO USER MANUAL 38...

  • Page 39: Icons

    Select the desired mode, and the mode indicator will change. Icons The RAVEN has built in icons to help you identify your tracks in a busy mix. To load an icon: Press and hold the Icon slot below the fader module. A floating icon window will appear.
  • Page 40 Tap an icon and a yellow box will appear around selected image. RAVEN MTI CUBASE/NUENDO USER MANUAL 40...
  • Page 41 To remove an icon, touch the blank icon box in the palette, and then touch the channel icon slot you wish to remove. You can also Browse your own Icons from your “CUSTOM” tab on the icon palette. RAVEN MTI CUBASE/NUENDO USER MANUAL 41...

  • Page 42: Raven Toolbar

    + and – rack buttons. To Add or Remove Racks press the + to show more racks in your toolbar or – to show less racks. RAVEN Racks can be customized to show as many or few tools as you would like.
  • Page 43 To interact with your OS while RAVEN is open, we have provided a quick an easy Hide RAVEN button above the RAVEN Power button on the RAVEN Toolbar. Touch or Click with your mouse to Hide your RAVEN software almost entirely except for the RAVEN on the bottom left hand side displaying the text, “Show.”...
  • Page 44 Power: Exits the RAVEN software. When power button is pressed and held, users will be prompted to save a raven session. If you wish to save your RAVEN session, press yes. If not, press no. Pressing cancel will keep the current RAVEN session running. (See section on Saving a RAVEN Session for further details.)
  • Page 45 Users may feel they’ve reached the end of their project but are missing tracks. This is not the case, RAVEN will only recognize full sets of 24 Tracks. If there are remaining tracks after the user has reached the last set of 24 tracks, the user should then switch to single track banking to reach the last tracks on the Raven Mixer.
  • Page 46 In rotary mode, move your finger in a circular motion around the perimeter of the knob. In up/down mode, touch the middle of the knob and move up or down to adjust pan. NAVPAD: Launches a floating navigation window where you can Zoom, Scroll, Shuttle and Scrub. RAVEN MTI CUBASE/NUENDO USER MANUAL 46...

  • Page 47: Raven Settings 5

    A two-finger touch moved along the x or y-axis will scroll the edit window. There are two NAVPAD’s on the RAVEN Mixer. One floating window, and one built into the toolbar. Both have the same functionality. Put the window anywhere on the screen by grabbing one of the two side handles.
  • Page 48 Use each button to switch between the Edit and RAVEN Mixer window. NOTE: You can remove the RAVEN Mixer by touching the RAVEN Mixer button and see the actual Pro Tools mixer. Please note, the Pro Tools mixer will not be multi-touch.
  • Page 49 We have also included the ability to control the response of the Fine Faders by pushing and holding the Fine Faders button on the RAVEN Toolbar. Adjust between 1 and 20, 1 being the slowest response for extreme detail and 20 being the fastest Fine Fader response time.
  • Page 50 • Drag icons and buttons around the toolbar to your liking. • Press the button again and it will unlatch allowing you to use your custom tool layout. NOTE: This also works with adding to your “Floating Toolbar & Essentials Palette.” RAVEN MTI CUBASE/NUENDO USER MANUAL 50...
  • Page 51 Once the “Floating Toolbar” or the “Essential” button is pressed, the semi- transparent window will appear with the familiar Customize Toolbar button, +/– Rack buttons and Hide RAVEN button. RAVEN MTI CUBASE/NUENDO USER MANUAL 51...
  • Page 52 Your Essentials Palette & Floating Toolbar are now ready to use. You may now remove racks all racks if you want to work with just the Floating Toolbar & Essentials Palette. To bring back the RAVEN Toolbar, simply press the + Rack button.
  • Page 53 Press Save layout and choose a number 1-4, 1-6 or 1-8 to save. To recall your saved layout, press the assigned button. “Revert to Last” will bring up the previous layout that was displayed, this is in case of accidental saves or changes to Batch Commands and/or the RAVEN Toolbar. Grid Modes: Press any of these buttons to select the grid mode you wish to work with.
  • Page 54 Cubase & Nuendo screen to select tools. Tools with multiple functions can be toggled by pressing the tool button until the right function is selected. Duplicate/Clip Loop: Easy tools to duplicate and loop sound clips in the Edit window. RAVEN MTI CUBASE/NUENDO USER MANUAL 54...
  • Page 55 Zooms in or out of a section in the Edit window. Floating Mixer: Brings up a bank of faders on a floating window over the Edit window. Pressing the floating mixer button will engage the floating mixer that can be adjusted and moved anywhere on the screen. RAVEN MTI CUBASE/NUENDO USER MANUAL 55...
  • Page 56 The floating mixer can be expanded or collapsed by pressing the “-“ or “+” button on the floating mixer header. The mixer can be viewed as 8, 16 or 24 channels. Pressing the pan button will switch the top section of the mixer from automation modes to pan modes. RAVEN MTI CUBASE/NUENDO USER MANUAL 56...

  • Page 57: Raven Settings

    Banking the mixer using finger gestures: • Like the RAVEN Mixer, the floating mixer can also be banked using finger swipes. Touch the fader faceplate and glide your one finger left and/or right to bank by one track at a time. Do not touch the fader cap for a banking motion.
  • Page 58 “Set User Default” button. Once highlighted to “User Default,” the user knows that they are using their layout as default. Restore Factory Default/Factory Default: Restores the RAVEN software to factory settings. VIDEO: Direct link to our RAVEN Videos on our SlateDigitalTV Channel. RAVEN MTI CUBASE/NUENDO USER MANUAL 58...
  • Page 59 External Mixer has both the tracks faders as well as their corresponding Sends 1-8. To access the Sends 1-8, simply touch the CHANNEL button and the External Mixer will filp to displaying your SENDS with faders. Adjust your desired send by track, with the RAVEN Sends 1-8. RAVEN MTI CUBASE/NUENDO USER MANUAL 59...
  • Page 60 SENDS A-E Racks and corresponding faders. NAVPAD Response: Within RAVEN Settings is the NAVPAD Response Button included to allow users to adjust the NAVPAD Sensitivity from 1 to 20, 1 being slow and precise and 20 being quick and forceful.
  • Page 61 Open the Multi-Touch Platform application directly within your software and instantly re-calibrate. SWITCH RAVEN Easily switch between different RAVEN DAW support software. Example: Cubase 8 to Pro Tools 11. CHECK FOR UPDATES Easily check to confirm your RAVEN software is up-to-date.
  • Page 62 SWITCH DEFAULT LAYOUTS: Easily change between preset default layouts we have included for various workflows including: Basic, Advanced and MIDI. RAVEN MTI CUBASE/NUENDO USER MANUAL 62...

  • Page 63: Saving A Cubase/Nuendo Session

    On the RAVEN Toolbar, we have included a Save Cubase & Nuendo button that allow s you to quick and easily save your Cubase or Nuendo progress. Remember, your Cubase or Nuendo session is a different file than your RAVEN Session so be sure to save both frequently when changes have been made.
  • Page 64 Press Save. To Load a RAVEN Session: Press the Load RAVEN Session button. Locate your previously saved RAVEN Session folder and press open. RAVEN MTI CUBASE/NUENDO USER MANUAL 64...

  • Page 65: Restoring To Factory Default

    Restoring to Factory Default Press the button for Restore Factory Default You will be prompted with a warning. Press OK if you wish to restore the RAVEN Software to its factory settings, press cancel if you don’t want to complete this action.

  • Page 66: Working With Plugins

    Working with Plugins Loading Plugins: On The RAVEN Mixer: Loading plugins is easy with the RAVEN External Mixer. Hit the “INS” button next to the “Record” button above the channel strip and the Channel Settings window will open. Hit the INS button on a given channel. The floating plugin window will then open.

  • Page 67: Controlling Plugins

    Otherwise, a mouse should be used to control the plugin. Plugin parameters are controlled by a single touch only. Functionality is the exact same as using a mouse and uses the familiar up/down movements to control knobs. RAVEN MTI CUBASE/NUENDO USER MANUAL 67...

  • Page 68: Closing A Plugin

    The button is too small to have accurate results. Open plugins can be opened and closed using the “Close Plugin” button found in the RAVEN Toolbar. Use the “Toggle Channel Settings” Batch Command to toggle on and off the Channel Settings window as well.

  • Page 69: Batch Command System For Cubase 8 & Nuendo 7

    The Batch Command System window contains multiple functions as explained below. Editing A Batch Command: Push and hold one of the Batch Command buttons on the RAVEN Toolbar. The Batch Command Menu will launch and you can use the various buttons explained below to accomplish your goal.
  • Page 70 Programed menu selection or mouse click to the command sequence. We have defined the QuickList items by their title, however for details on the specific key commands, menu selections and/or mouse clicks each specific Batch Command is performing, please review our Batch Command programming information below. RAVEN MTI CUBASE/NUENDO USER MANUAL 70...
  • Page 71 “General,” “Music,” “Post,” and more within the “Factory” tab. Remove: Select an undesired Key Command or QuickList item by touching and highlighting it and then hit Remove to eliminate the selected item from the command sequence. RAVEN MTI CUBASE/NUENDO USER MANUAL 71...
  • Page 72 On the bottom left of the Batch Command Menu there is an empty bar for naming your Batch Command and a block of multiple colors to choose a color for the Batch Command on the RAVEN Toolbar. Save: Use the Save button to save a custom Batch Command. Be sure to give it a name you will recognize in the QuickList.
  • Page 73 Batch Commands labeled, “General,” “Music,” and “Post.” Additionally, there is a “User” tab that will allow you to create and save your own Batch Commands within your RAVEN software. Use two fingers on the menu to scroll through the lists on the various tabs and use the LOAD button to place a QuickList item into the command line.
  • Page 74 RAVEN FORUM on www.slatemt.com and we may be able to create one for you and other RAVEN users. NAMING BATCH COMMAND PANELS: Push and hold on the label on the side of each Batch Command Panel to open the Naming and color coding interface of the entire Batch Command Panel.
  • Page 75 Push and hold on the Batch Command Panel label and hit “Clear All” to completely delete the contents of a Batch Command Panel quickly. Be careful when using this function as it will delete the entire contents of a Batch Command Panel including Names, Programmings and Colors. RAVEN MTI CUBASE/NUENDO USER MANUAL 75...
  • Page 76 Batch Command and hit the “Record” button. Perform the sequence you wish to set to the button and once completed, hit the “record” button again. A window will appear to be able to Name the new RAVEN MTI CUBASE/NUENDO USER MANUAL 76...
  • Page 77 Command that the window locations are the same as when recorded as the Batch Commands require the correct X/Y-Axis locations. LOAD & EXPORT: Easily share customized Batch Commands on our RAVEN Forum by visiting our website: www.slatemt.com and visiting the Forum. Create a Batch Command and Save it to your user tab.
  • Page 78 RAVEN 3.0 USER MANUAL CUBASE/NUENDO – BASIC LAYOUT RAVEN CUBASE/NUENDO BASIC LAYOUT MANUAL Version 3.0 Updated 10/22/2015 RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 1...
  • Page 79 TABLE OF CONTENTS RAVEN DEFAULT PRE-PROGRAMED LAYOUTS ......................3 RAVEN MTX/MTI CUBASE/NUENDO BASIC LAYOUT 1 OF 8 ..................5 LAYOUT 1.1 “FADER FOCUS” .............................. 5 LAYOUT 1.2 “CREATE TRACKS” ............................6 LAYOUT 1.3 “WINDOWS” ..............................7 LAYOUT 1.4 “SPLIT AND GRID” ............................7 RAVEN MTX/MTI CUBASE/NUENDO BASIC LAYOUT 2 OF 8 ..................

  • Page 80: Raven Default Pre-Programed Layouts

    If you ever wish to restore the RAVEN’s factory settings, simply press the RESTORE FACTORY DEFAULT button located within the RAVEN’s “SETTINGS” panel. TIP: For many of the Batch Commands to function, you need to install the RAVEN Key Commands into the Cubase/Nuendo Key Commands Menu.
  • Page 81 Note: For most mouse-clicks to function correctly, it is required that only one main window is opened and in front. Use “Close background windows” to close any extra windows that would cause the mouse to change its click location. i.e transport window, media pay window , etc… RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 4...

  • Page 82: Raven Mtx/Mti Cubase/Nuendo Basic Layout 1 Of 8

    RAVEN MTX/MTi CUBASE/NUENDO BASIC LAYOUT 1 of 8 LAYOUT 1.1 “FADER FOCUS” SHOW ONLY AUDIO TRACKS In any window, press SHOW ONLY AUDIO TRACKS to fader focus only audio tracks. SHOW ALL TRACKS In any window, press SHOW ALL TRACKS to fader focus all tracks.

  • Page 83: Layout 1.2 "Create Tracks

    In the Console/Mixer window, select the bottom of the desired track so it is outlined in red and press COPY INSERT CHAIN RIGHT X3 MIXER. This will copy the selected tracks inserts and paste them to the next 3 tracks. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 6...

  • Page 84: Layout 1.3 "Windows

    In the Project window, press TOGGLE FOLDER STATE to toggle all the current folders open or closed. LAYOUT 1.4 “SPLIT AND GRID” PLAY FROM SELECTION With an event or the timeline selected, press PLAY FROM SELECTION to start playback from the current selection. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 7...
  • Page 85 Press SNAP EVENTS to change the timeline/grid snap to free hand to allow movement of the event to anywhere on the timeline. SNAP GRID Press SNAP GRID to change the timeline/grid snap to grid mode to force any event movement to stay on the grid. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 8...

  • Page 86: Raven Mtx/Mti Cubase/Nuendo Basic Layout 2 Of 8

    RAVEN MTX/MTi CUBASE/NUENDO BASIC LAYOUT 2 of 8 LAYOUT 2.1 “FADES” REMOVE FADES Press REMOVE FADES to remove any fades on the selected region/event. CROSS FADE Press CROSS FADE to create a cross fade between two connected regions/events. FADE IN 10MS Press FADE IN 10MS to create a 10ms fade at the start of the selected region/event.

  • Page 87: Layout 2.2 "Editing

    GAIN DOWN 4 DB Press GAIN DOWN 4 dB to decrease the selected region’s volume by 4 dB by opening the “gain” process from the menu tab and click the gain input and entering -4db. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 10...

  • Page 88: Layout 2.3 "Windows

    In any window, press EDIT VST INSTRUMENTS to open the VST Instrument window of the selected Instrument track. MIDI IN PLACE EDITOR In the Project window, press MIDI IN PLACE EDITOR to open a MIDI Editor on the selected MIDI track In the Project window. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 11...

  • Page 89: Layout 2.4 "Editing

    In the Project window, press FADE IN-OUT 5MS to create a 5ms fade at the beginning and end of the selected region. FADE IN-OUT 50MS In the Project window, press FADE IN-OUT 50MS to create a 50ms fade at the beginning and end of the selected region. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 12...

  • Page 90: Raven Mtx/Mti Cubase/Nuendo Basic Layout 3 Of 8

    RAVEN MTX/MTi CUBASE/NUENDO BASIC LAYOUT 3 of 8 Note: Any Batch Commands using the “Channel Settings window” must have the default windows to work correctly. If the Channel Strip settings are showing, then “Tab” in the commands will not reach the correct location.

  • Page 91: Layout 3.1 "Preset Chain

    In the Console window, press SAVE PRESET CHAIN 2 to open the Save window and type in “Preset 2” in the Save As window. SAVE PRESET CHAIN 3 In the Console window, press SAVE PRESET CHAIN 3 to open the Save window and type in “Preset 3” in the Save As window. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 14...

  • Page 92: Layout 3.2 "Plugin Channel Settings

    Channel Settings window and “tabbing” to 6th insert and searching for “QUADRAFUZZ” in and selecting it from the plugin menu. Note: The Channel Settings window should be closed for this to work properly. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 15...

  • Page 93: Layout 3.3 "Plugin Channel Settings 2

    Channel Settings window and “tabbing” to 8th insert and searching for “vintage comp” and selecting it from the plugin menu. Note: The Channel Settings window should be closed for this to work properly. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 16...

  • Page 94: Layout 3.4 "Workspaces

    In any window, press ADD WORKSPACE to add a new workspace with the current window configuration. WORKSPACE 1 (2, 3, 4) In any window, press WORKSPACE 1 (or WORKSPACE 2, 3, 4) to change the current workspace to a previously saved customization of workspace 1. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 17...

  • Page 95: Layout 3.5 "Windows

    Press BYPASS OPEN PLUGIN to bypass the plugin that is currently open. LAYOUT 3.6 “TRACK STATUS” RECORD ENABLE DEFEAT With a track selected, press RECORD ENABLE DEFEAT to disable the “record” function for the selected track. RECORD ENABLE SELECT RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 18...
  • Page 96 With a track selected, press SOLO DEFEAT to disable the “solo” function for the selected track. SOLO SELECT TRACKS With a track selected, press SOLO SELECT TRACKS to enable the “solo” function for the selected track. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 19...

  • Page 97: Raven Mtx/Mti Cubase/Nuendo Basic Layout 4 Of 8

    RAVEN MTX/MTi CUBASE/NUENDO BASIC LAYOUT 4 of 8 LAYOUT 4.1 “WINDOW NAVIGATION” CHANNEL SETTINGS MIX WINDOW In the Mix/Console window, press CHANNEL SETTINGS MIX WINDOW to open the Channel Settings window for the Mix window. Note : This key command is different from the “open the Channel Settings window” key command in the Project window.

  • Page 98: Layout 4.2 "Plugin Channel Settings

    1 of your selected channel. This Batch Command operates in the following order: Opens the Channel Settings window within the console Tabs and cursors to insert 1 Searches for Virtual Tape Machine Adds it to the selected track RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 21...
  • Page 99 With the Channel Settings window and current plugin open, press TUBE COMP NEXT INSERT to close the open plugin, scroll to the next insert and search for ”Tube Comp” and add it to the insert. CLEAR INSERTS Press CLEAR INSERTS to delete the inserts on your selected track. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 22...

  • Page 100: Raven Mtx/Mti Cubase/Nuendo Advanced Layout 5 Of 8

    RAVEN MTX/MTi CUBASE/NUENDO ADVANCED LAYOUT 5 of 8 LAYOUT 5.1 “NAMING MIXER” NAME LEAD VOCAL X4 MIXER In the Console/Mixer window, select the bottom of the desired track so that it is outlined in red and press NAME LEAD VOCAL X4 MIXER. This will type in the name in the selected track, as well as the 3 following tracks.

  • Page 101: Layout 5.2 "Instant Track Colors

    In the Console window, press TOGGLE INSERTS to toggle the Insert Racks open or closed. TOGGLE CHANNEL STRIP In the Console window, press TOGGLE CHANNEL STRIP to toggle the Channel Strip racks open or closed. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 24...
  • Page 102 SAVE SELECTED CHANNELS In the Console window, press SAVE SELECTED CHANNELS to open the Preset Save window. LOAD SELECTED CHANNEL In the Console window, press LOAD SELECTED CHANNELS to open the Preset Load window. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 25...

  • Page 103: Raven Mtx/Mti Cubase/Nuendo Advanced Layout 6 Of 8

    RAVEN MTX/MTi CUBASE/NUENDO ADVANCED LAYOUT 6 of 8 LAYOUT 6.1 “CREATE NEW FX TRACKS” STEREO FX ROOMWORKS In the Project or Mix window, press STEREO FX ROOMWORKS to create a new stereo FX track with RoomWorks preloaded. This Batch Command operates in the following order: Opens the “New FX Track”...
  • Page 104 In the Project or Mix window, press MONO MAGENTO FX to create a new mono FX track with Magneto preloaded. This Batch Command operates in the following order: Opens the “New FX Track” dialog window RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 27...

  • Page 105: Layout 6.2 "Windows

    In the Mix Console, press OPEN PLUGINS ON CHAN to open all the plugins on the selected channel. TOGGLE ACTIVATE SEND With a send selected, press TOGGLE ACTIVATE SEND to toggle the active status of the selected send/insert either on or off. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 28...

  • Page 106: Raven Mtx/Mti Cubase/Nuendo Advanced Layout 7 Of 8

    RAVEN MTX/MTi CUBASE/NUENDO ADVANCED LAYOUT 7 of 8 LAYOUT 7.1 “WINDOW NAVIGATION” CHANNEL SETTINGS MIX WINDOW In the Mix/Console window, press CHANNEL SETTINGS MIX WINDOW to open the Channel Settings window for the Mix window. Note : This key command is different from the “open the Channel Settings window” key command in the Project window.
  • Page 107 Note: The Routing rack should be closed so the cursor gets to the correct spot on the mix rack. BYPASS OPEN PLUGIN With a plugin window open, press BYPASS OPEN PLUGIN to send a mouse-click that will bypass the plugin. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 30...

  • Page 108: Raven Mtx/Mti Cubase/Nuendo Advanced Layout 8 Of 8

    RAVEN MTX/MTi CUBASE/NUENDO ADVANCED LAYOUT 8 of 8 LAYOUT 8.1 “NEW FX TRACKS SELECT” ADD STEREO REVERB SELECT In any window, with a track (or tracks) selected, press ADD STEREO REVERB SELECT to add a new stereo FX track with RoomWorks preloaded on to an insert of your selected track(s).
  • Page 109 Delay preloaded on to an insert of your selected track(s). This Batch Command operates in the following order: Adds a new FX send Sends a mouse-click to Configuration and selects “stereo” Mouse-clicks the Effect dropdown menu Searches for and selects Delay RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 32...

  • Page 110: Layout 8.2 "Bus To Premade Sends

    Opens up the Channel Settings window tab Cursors over to send 4 Opens the Sends window Selects FX3 from the list Note: The Channel Settings window should be closed before running this command. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 33...
  • Page 111 Delay to Send 5 of your selected track. This Batch Command operates in the following order: Opens up the Channel Settings window Sends a mouse-click to Send 5 Selects “add” from the menu Selects “Stereo Delay” from the Effect dropdown menu on the new FX track window RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 34...

  • Page 112: Layout 8.3 "Create New Fx Tracks

    4 of your selected track. This Batch Command operates in the following order: Opens up the Channel Settings window Send a mouse-click to Send 4 Selects “add” from the menu Selects “stereo” from the Configuration dropdown menu on the new FX track window RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 35...
  • Page 113 Opens up the Channel Settings window Sends a mouse-click to Send 4 Selects “add” from the menu Selects “Stereo Delay” from the Effect dropdown menu on the new FX track window RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 36...

  • Page 114: Layout 8.4 "Sends And Sidechain

    Tabs and cursors over to the Sends menu Copies the track’s Sends settings Scrolls over to the previous track Pastes the Sends settings Repeats two more times for the other two tracks RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 37...
  • Page 115 Send 7 to an existing sidechain. This Batch Command operates in the following order: Opens up the Channel Settings window Tabs and cursors over to Send 7 in the Sends tab Sends signal to a previously created side chain RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 38...

  • Page 116: Layout 8.5 "Windows

    In the Console window, press TOGGLE SENDS to toggle the Sends Racks either open or close. ACTIVATE SEND With a send selected press ACTIVATE SEND , to toggle the active status of the selected send/insert either on or off. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 39...

  • Page 117: Layout 8.6 "New Fx Sends

    Clicks the Effect drop menu and selects your preprogrammed plugin of choice Note: When editing this Batch Command, hit “Key Command,” type in the name of the desired plugin, hit “key Command” again and input the “enter” key on your keyboard. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 40...

  • Page 118: Layout 8.7 "Workspaces

    In any window, press UPDATE WORKSPACE to update the current workspace with the current window configuration. ADD WORKSPACE In any window, press ADD WORKSPACE to add a new workspace with the current window configuration. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 41...

  • Page 119: Layout 8.8 "Track Status

    With a track selected, press SOLO DEFEAT to disable the “solo” function for the selected track. SOLO SELECT TRACKS With a track selected, press SOLO SELECT TRACKS to enable the “solo” function for the selected track. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 42...

  • Page 120: Layout 8.9 "Fader Focus

    Press VISIBILTY CONFIG 2 to open up the previously created visibility configuration. VISIBILITY CONFIG 3 Press VISIBILTY CONFIG 3 to open up the previously created visibility configuration. NEW VISIBILITY CONFIG Press NEW VISIBILTY CONFIG to create a new visibility configuration. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 43...
  • Page 121 Press NEW CONFIG FOR SELECT TRACKS to create a new visibility configuration for the selected tracks only. This will fader focus the selected tracks, copy the name of the first track to the clipboard, create a new visibility configuration, and paste the clipboard into the configuration name. RAVEN CUBASE/NUENDO BASIC LAYOUT USER MANUAL | 44...
