JOB

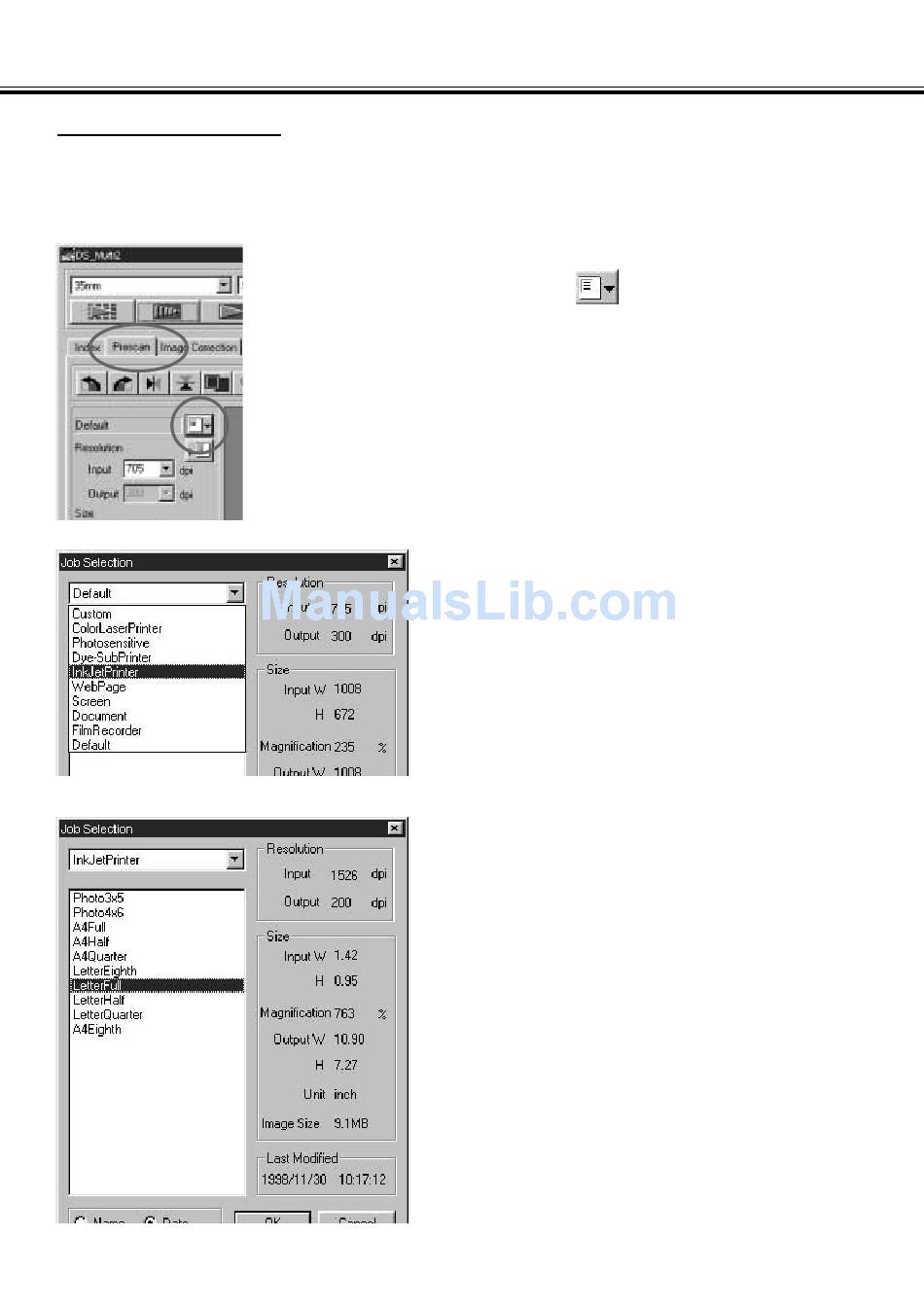

LOADING A JOB

The scan setting of the job file can be applied to the current prescan image by loading a job file
from the preset Job File List.
1. Click on the Prescan tab.
2. Click on
• The Job Selection dialog box will appear.
3. Select the appropriate category from
the list box.
4. Select the job file name to be
applied from the list.
• The scan setting saved in the selected job
file will be displayed in the right of the
window. When another job file is selected,
the setting is changed correspondingly.
• By clicking on the Name or Date option
button, the format of the Job File List can be
changed.
5. Click on [OK].
• The selected scan setting will applied to the
prescan image and the Job Selection dialog
box will disappear. The selected job will be
displayed in the Job Name list box.
– 76 –
.
