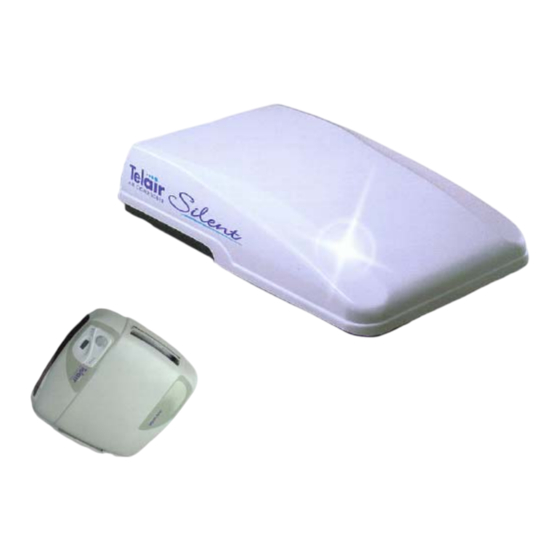

- Page 1 AIR CONDITIONER Silent 12000H USER’S INSTALLATION AND INSTRUCTION MANUAL v.04 – December 2008...
- Page 2 European Directive on Machine Safety. This declaration is rendered null and void where the machine is modified without our written approval. Machine: AIR CONDITIONER Model: SILENT 12000H Serial n°: ......... Reference Directives: Machine Directive (89/392/EEC), version 91/31/EEC.
-
Page 3: Table Of Contents
5.9 Heating by heat pump ....................13 5.10 Switching off ......................13 5.11 Safety regulations....................13 6 TROUBLESHOOTING ....................14 7 DISPOSAL ........................14 8 MAINTENANCE ......................15 8.1 Routine maintenance .....................15 GENERAL TERMS OF WARRANTY ................16 WIRING DIAGRAM SILENT 12000H ................17 DRAWING FOR SPARE PARTS LIST SILENT 12000H ..........18... -
Page 4: Foreword
1.3 General information information/warning symbols (see following key). SILENT 12000H have been plan to you for You are strongly advised to read the entire being install to you on the roof of vehicles. manual and the reference documents: this is... -
Page 5: Identifying The Conditioner
SILENT 12000H IDENTIFYING THE CONDITIONER 2.2 ID Plate 2.1 Components (fig.1) Model Ventilation grid Machine code Top lid Serial number ID Plate Diffuser Air expulsion nozzle Air intake grid Fan switch Menu switch Thermostat switch SILENT 12000H 10 On-Off switch CODE : 03144 S.N.0602320005... -
Page 6: Transport, Handling And Storage
3.2 Weight personnel. Weight without packaging: 4.2 Installation SILENT 12000H 40,5 kg Before installing the 3.3 Handling unit all the electrical connections on the vehicle must be disconnected. Packaged air conditioners can be moved using standard means of lifting and transport. -
Page 7: Using The Existing Ventilation Port
SILENT 12000H To ensure proper air conditioner installation it Proceed by removing the screws that fix the is essential that you first check whether the port to the roof and then removing the port roof is able to support its weight; if it is not the itself. -
Page 8: Power Lead
SILENT 12000H 4.2.3 Power lead To power the air conditioner it is necessary to lay a 3-pole lead (phase-neutral-earth): each wire must have a minimum cross-section of 2.5 mm 2 . At one end the lead must be connected to a magneto-thermal cut-out switch inside the electrical junction box of the vehicle;... -
Page 9: Positioning The Conditioner
SILENT 12000H 4.3 Positioning the conditioner Before positioning the air conditioner on the roof it is necessary to lay a sufficient amount of slow-drying sealant around the rim of the aperture. Bring the air conditioner onto the roof (fig. 7 ref. -
Page 10: Installing The Diffuser
SILENT 12000H 4.5 Installing the diffuser Remove the two airflow direction adjuster fins from the diffuser. Position the diffuser (fig. 9) momentarily and mark the 6 hole drilling points that correspond to the attachment points on the aluminium duct. Drill the holes with a 3 mm bit. -
Page 11: Preliminary Checks
SILENT 12000H release the build up of heat in the interior; once indoor temperature matches outdoor temperature close the windows and doors and start the air conditioner. Subsequently, only open doors and windows when necessary. 5.2 Preliminary checks Before switching on the air conditioner for the very first time: •... -
Page 12: Display
SILENT 12000H 5.5 Display (fig.12 rif.5) In which F11, F12 and F13 are the three fixed speeds and AUT is automatic speed. F11 The display shows the temperature setting indicates slow fan speed, F12 medium speed (SET). Temperature is set via the thermostat and F13 high speed. -
Page 13: Cooling Mode
SILENT 12000H 5.8 Cooling mode 5.10 Switching off To switch the air conditioner off press the - When this symbol is displayed constantly the on/off key (fig. 12 ref. 3). air conditioner is generating cold air. - When the symbol flashes, the air 5.11 Safety regulations... -
Page 14: Troubleshooting
SILENT 12000H TROUBLESHOOTING DISPOSAL In the majority of cases poor air conditioner Always contact specialised workshops when it performance is caused by incorrect use as is necessary to dismantle and dispose of the opposed to actual malfunctions. For example: air conditioner. -
Page 15: Maintenance
SILENT 12000H MAINTENANCE 8.1 Routine maintenance tasks requiring removal conditioner covers must – with installation - be carried out by expert personnel. Before carrying out any work on the air conditioner essential that disconnect the 230 V power supply and wait for all its component parts to cool down. -
Page 16: General Terms Of Warranty
SILENT 12000H GENERAL TERMS OF WARRANTY Telair guarantees that its products are without faults or defects in their material and/or construction. The effects of the warranty are understood to be limited to the right to obtain replacement or repair free of cost of any part which should turn out to be defective, within 12 months from the date of purchase of the product and in Telair’s opinion. -
Page 17: Wiring Diagram Silent 12000H
SILENT 12000H WIRING DIAGRAM SILENT 12000H... -
Page 18: Drawing For Spare Parts List Silent 12000H
SILENT 12000H DRAWING FOR SPARE PARTS LIST SILENT 12000H... - Page 19 SILENT 12000H...
- Page 20 SILENT 12000H...
- Page 21 SILENT 12000H...
- Page 22 SILENT 12000H Pos Code Q.tà Descrizione/Description Dèsignation/Bezeichnung Denomination/Descripcion Coperchio superiore Couvercle supérieur Bovenste afdekking 03516 / N.1 Top lid Obere abdeckung Tapa superior Couvercle de l'unité Coperchio evaporante Afdekking verdampingsunit 02976 d'évaporation / N.1 Cooler lid Tapa unidad de evaporacion...
- Page 23 SILENT 12000H Bocchetta Bouche Mondstuk 00171 24 / / N.2 Mouth Düse Boquilla Bobina x Ev-4vie Manières de l'enroulement 4 Rol 4 manieren 03526 25 / / N.1 Coil 4 ways Spule 4 Weisen Maneras de la bobina 4 Manières électriques de...
