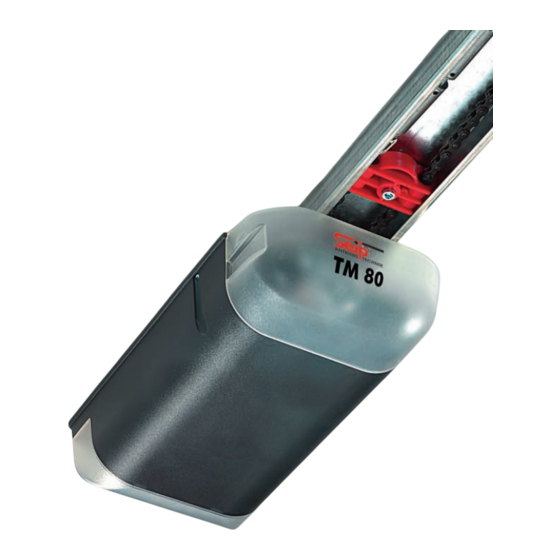

- Page 1 0800 525 442 www.thegaragedoorcentre.co.uk TGarage Door Operator TM 50 TM 80 INSTALLATION AND PROGRAMMING INSTRUCTIONS ENGLISH TM50/80 MO911/1V0 SKRW433 SKR433-1 www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk...
-
Page 2: Table Of Contents
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Content Quick Reference for experienced Installers ���������������������3 Remote Control Registering and deleting Remote Devices ���������������������������������16 Information and Remarks Starting the Registry Registering a Device Regulations and Usage ��������������������������������������������������4 HomeLink™ Directives and Regulations Erasing Remote Devices Use of the operators General Remarks ���������������������������������������������������������������������17 Garage Doors... -
Page 3: Quick Reference For Experienced Installers
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Quick Reference for experienced Installers Adjusting the Door Type Sectionaldoor Tilting Door Tilting Door Canopy Type Doors Canopy Type Doors Canopy Type Doors Canopy Type Doors Free Programming Free Programming Free Programming After changing the DIP-switch settings the operator MUST run through a learning cycle: keep the For free programming, pls�... -
Page 4: Information And Remarks
Information and Remarks Regulations and Usage It is within legal regulation and without restriction, to use a Seip door operator with any garage door that has been ap- proved for use with other certified door operators! Directives and Regulations Older Garage Doors... -
Page 5: Safety Advises For The Installation
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Information and Remarks Safety Advises for the Installation Important Safety Instructions for Installation WARNING: INCORRECT INSTALLATION CAN LEAD TO SEVERE INJURY Follow all Installation Instructions. - Read page 3 of this instruction carefully before the installation - Before installing the drive, remove unnecessary ropes from the existing installation - Maintain the garage door according to the advises on page 3... -
Page 6: Installation
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Installation Conditions for Installation Minimum Headroom >35mm A minimum distance of 35mm between the garage door and the ceiling is re- quired� Door Hight No optionals are required for doors up to 2,250mm hight� Between 2,250mm und 2,500mm: a lintel-sided extension for the rail might be required�... -
Page 7: Installation
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Installation Installation The front fixing angle can be mounted either at the lintel or at the ceiling� 1. Meassure the middle of your garage door and make a mark on the lintel and the top of your door (1)� 2. -
Page 8: Adjusting The Limit Blocks
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Installation Adjusting the Limit Blocks These adjustments must be made before the programming of the forces and the running-length. Starting the programming procedure without correctly ad- justed blocks may lead to damages on the garage door and the operator! Vorgehensweise: 1�... -
Page 9: The Emergency Release
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Installation The Emergency Release In case of a power failure the garage door can be opened by hand� Therefore the operator first needs to be released� When the garage door is the only entrance It is necessary to connect the emergency release to the door‘s handle (pic�... -
Page 10: Printed Circuit Board: Adjustments And Connectors
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Printed Circuit Board: Adjustments and Connectors Control Elements D C 24V HF-Modul TEST/ LERN/ LEARN TEST/RUN Button (black) Standard Function Run the operator: Pressing the button runs or stops the operator� The function depends on the entire status of the operator, following the sequence OPEN-STOP-CLOSE etc�... -
Page 11: Connectors
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Printed Circuit Board: Adjustments and Connectors Connectors D C 24V HF-Modul TEST/ LERN/ LEARN Push Button A + B Connector for a wired wall push button Standard function Pressing the push button will give a command to the operator� Whether this is an opening, closing or stop command depends on the entire status of the operator�... -
Page 12: Standard Programming
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Printed Circuit Board: Adjustments and Connectors Standard Programming Programming the Forces and Running Distance Choosing the type of door The standard pre-setting is „Sectional Door“; if this shall be used, then proceede with step 2� For other types of doors the DIP-switches 1 and 2 must be adjusted accordingly�... -
Page 13: Free Programming
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Printed Circuit Board: Adjustments and Connectors Free Programming ATTENTION: Changing the running-speeds might result in non-conformant force values dependant on the door type and the doors‘ weight. To ensure the installation is within legal regulations a force testing as to directive EN13241-1 must be made. -
Page 14: Automatic Closing
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Programming Automatic Closing WHEN USING THE AUTOMATIC CLOSING FEATURE A PHOTO-CELL MUST BE CONNECTED. A PHOTO-CELL IS A NON-CONTACT SAFETY DEVICE AND WILL AVOID IN MOST CASES THAT USERS, CARS OR OTHER OBSTACLES WILL BE HIT BY THE CLOSING GARAGE DOOR! The closing procedure will be started automatically after the pre-set time;... -
Page 15: Further Safety Advice For Automatic Closing
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Programming Automatic Closing Further Safety Advice for Automatic Closing Once the user gets into the car, he might not recognize the operators‘ integrated blinking light before the automatic closing starts� This may be down to light conditions or the cars‘ roof� Therefore it is strongly recommended to install an external warning-light which is visible from inside the car�... -
Page 16: Remote Control
First the hand transmitter must be copied into the HomeLink™ module (closer information on your specific system can be found on the internet: www�eurohomelink�com)� The programmed HomeLink™ button will turn to a new Seip-compatible remote device� It therefore must be registered with the operator just like any other remote device� Proceede as described in steps 1 + 2�... -
Page 17: General Remarks
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Remote Control General Remarks Useable Batteries Eine Batterie des Typs A23, 23A, 23L, EL12, VR 22 oder MN 21; Versorgungsspannung: 12V Verbrauchte Batterien müssen nach den nationalen Bestimmungen entsorgt werden! Changing the transmitters‘ battery Open the transmitter Take off lid Change battery Changing the wall push-buttons‘... -
Page 18: Technical Information
0800 525 442 www.thegaragedoorcentre.co.uk Technical Information Technical Data TM 50 TM 80 TM 50 TM 80 Nominal Pulling Force 50 kg 80 kg Net Running Length 2,500 mm Max� Running Length extended 4,000 mm Peak Pulling Force 60 kg... -
Page 19: Troubleshooting
www.thegaragedoorcentre.co.uk 0800 525 442 www.thegaragedoorcentre.co.uk Technical Information Troubleshooting Error Messages The operator will show error messages either by a blinking opera- tors‘ lighting or the red LED� Messages by blinking integrated lighting 8 blinks No impulses from the motors‘ hall-sensor� Possible reasons: 2 blinks damaged hall-sensor, loose contact on the motor plug or dama- DIP-switch message: the DIP-switch setting was changed�... -
Page 20: Declarations
Hand Transmitter as remote control for garage door operators Handsender als Fernbedienung für Garagentorantriebe Product Name / Modell TM 50 / TM 80 (Short Range Device/Funkgerät geringer Reichweite (SRD)) Approved according to 2006/95/EC and 2004/108/EC / Geprüft nach 2006/95/EC und 2004/108/EC...
