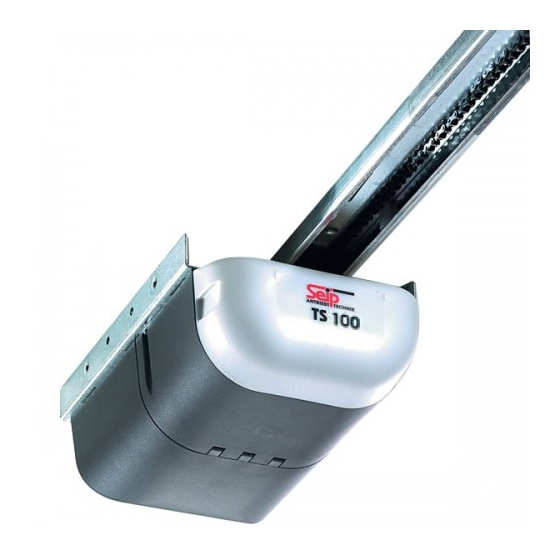

Installation Instructions

for garage door operators
TS 75
and
TS 100
This booklet must be handed over to the end-user
together with the user-manual.
3V0
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS 75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seip TS 75

Summary of Contents for Seip TS 75

  • Page 1: Installation Instructions

    Installation Instructions for garage door operators TS 75 TS 100 This booklet must be handed over to the end-user together with the user-manual. English...

  • Page 2: Table Of Contents

    Content Information and Remarks LED-Lamps 16 LED “TEST“ Directives and Regulations LED “Diag“ Use of the operators LED “Vp“ Garage Doors LED „LSZ“ The installer’s declaration of conformity LED „SLZ“ Older Garage Doors LED “SEZ“ Important Information for the Installer 3 LED “SEA“...

  • Page 3: Information And Remarks

    Seip door operator with any garage door that has been ap- proved for use with other certified door operators! Directives and Regulations The operators TS 75 and TS 100 comply to the latest European di- rectives and regulations. The declaration of conformity is enclosed at the end of these instructions.

  • Page 4: Security Advises For The Installation

    Information and Remarks Security Advises for the Installation Important Safety Instructions for Installation WARNING: INCORRECT INSTALLATION CAN LEAD TO SEVERE INJURY Follow all Installation Instructions. - Read page 3 of these instruction carefully before the installation - Before installing the drive, remove unnecessary ropes from the existing installation - Maintain the garage door according to the advice on page 3 and to the door manufacturer’s manual...

  • Page 5: Installation

    Installation Different Conditions for Installation Before installing the operator you should check the garage for the Minimum space above the garage door conditions of installation. You will need optional extras in either of the following situations: 35mm Minimum C-Rail Extension If the garage door is higher than 2.250 mm you will need a c-rail extension.

  • Page 6: Pre-Mounting The Operator

    Installation Pre-Mounting the operator During this procedure be careful not to twist the chain. Therefore do not lift the parts - slide them along the floor. 1. The operator is lying unpacked in front of you. The motor-head unit is on your right hand side. 2.

  • Page 7: Installing The Operator

    Installation Installing the operator Measure the distance between the ceiling and the highest point reached by the garage door (1). The minimum-headroom necessary for mounting the operator is 35 mm. If there is less headroom please pay attention to page 5. The front fixing angle can be mounted either at the lintel or at the ceiling.

  • Page 8: The Emergency Release

    Installation The Emergency Release In case of a power failure the garage door can be opened by Pic. 1 hand. Therefore the operator first needs to be released. When the garage door is the only entrance It is necessary to connect the emergency release to the door‘s handle (Pic.

  • Page 9: Printed Circuit Board: Adjustments And Connections

    Printed Circuit Board: Adjustments and Connections Devices for Adjustments This page only shows the functions of the buttons and potentiometers on the P.C.B. To programme the operator please refer to page 10 onwards. Potentiometer “PRESSURE OPEN/CLOSE“ (3) TEST/RUN-Button (1) With these potentiometers you must adjust the maximum force With this button you put the operator into operation.

  • Page 10: Limit-Switch Adjustment And Force Measurement

    Printed Circuit Board: Adjustments and Connections Limit-Switch Adjustment and Force Measurement Pictures: 1: TEST/RUN-Button 2: LERN/LEARN-But- 3: Potentiometer for Force Adjustment IMPORTANT INFORMATION PRIOR TO PROGRAMMING! The programming described on this and the following page will programme the operator with factory pre-set values for Soft-Modes and Closing Speed.

  • Page 11: Starting The Learning-Cycle

    Printed Circuit Board: Adjustments and Connections Limit-Switch Adjustment and Force Measurement Quick Reference The operator’s light will be blinking throughout the whole procedure of setting the limit switch. 1.) Force Adjustment Adjust the maximum force for OPENING and CLOSING direction 3.)a.) Adjusting the OPENING limit switch for the learning cycle 1.) Run the operator in OPENING direction using the TEST/RUN button (1)

  • Page 12: Enhanced Adjustments

    Printed Circuit Board: Adjustments and Connections Enhanced Adjustments The BOTTOM Soft-Stop The length of the BOTTOM Soft-Stop may be changed during the first run of the learning-cycle in closing direction: Bottom Soft-Stop - Extending the BOTTOM Soft-Stop is recommended, if the garage door slams on closing.

  • Page 13: Reducing The Closing Speed

    Printed Circuit Board: Adjustments and Connections Enhanced Adjustments Speed Level Reducing the Closing Speed � When using the standard programming procedure, then the clo- � � sing speed is automatically set to maximum; for most � CE compliant garage doors no changes are necessary. �...

  • Page 14: The Most Important Connectors

    M + N 230V AC power supply for external components. Shortcuts created by external compo- nents on this connector will influence the house fuse directly. Receiver-Module HF-Modul / Plug for Seip remote-receiver cards. Receiver-Card Advanced Connectors Component Photo-Cell without selftest:...

  • Page 15: Safety Beam, Hatch Door, Emergency Stop

    Printed Circuit Board: Adjustments and Connections Advanced Connectors Safety Beam, Hatch Door, Emergency Stop E + F Function (mit 8,2 kOhm This connector is continuosely checked during opening and closing procedures. When the contact is opened (e.g. an obstacle Auswertung) is detected), then the operators stops and reverses shortly.

  • Page 16: Led-Lamps

    Printed Circuit Board: Adjustments and Connections LED-Lamps Function LED “TEST“ “ON“ when a device connected to A+B (push-button, key-switch) Incoming impulse No incoming im- or the electronics‘ TEST-button gives an impulse pulse LED “Diag“ “ON“ when an impulse from a programmed hand-transmitter is Incoming impulse No incoming im- received.

  • Page 17: Special Functions

    Printed Circuit Board: Adjustments and Connections Special Functions 1 2 3 4 5 6 DIP-Switch Settings DIP-Switch Function Attention: Double-Function! Function 1: TOP Soft-Mode Standard setting: ON Before and during the learning-cycle DIP-switch no. 1 determines whether the TOP Soft-Mode shall be enabled or disabled (ON: Top Soft-Mode disabled, OFF: Top Soft-Mode enabled) Function 2:Automatic Force Measurement Standard setting: ON...

  • Page 18: Remote Control

    Remote Control Programming the Hand Transmitters Basics Quick reference: programming the first hand transmitter As standard the operator is supplied with a 433 MHz AM re- 1.) Keep the LERN/LEARN The operators‘ light will start mote control set. The coding is done via rolling code - the code button pressed for approx.

  • Page 19: Additional Information

    Remote Control Additional Information 4-channel MIDI transmitter, 2-channel MINI transmitter (optional extra), 433 MHz, rolling code 433 MHz, rolling code Two Batteries Battery Usable types of batteries: A23, 23A, 23L, EL12, VR 22 and Two batteries, type CR1616 or DL1616 are required. MN 21 Voltage: 2* 3V (=6V) Voltage: 12V...

  • Page 20: Technical Information

    Technical Information Technical Data TS 75 TS 100 Maximum Pulling Force (adjustable) 70 kg (+/- 4%) 100 kg (+/- 4%) Force-Setting for Operation automatic automatic Motor 24V DC, low-noise 24 V DC, low-noise Running Speed 14,5 cm/sec. 14,5 cm/sec. Speed in Soft Mode 8 cm/sec.

  • Page 21: Wiring

    Technical Information Wiring � � � � � � � � � � � � � � � � � � � � � � � � � � � � External connections Internal Wiring (Explained on pages 12 + 13) Blue, mains supply, 230V A + B Floating connector for push-button, key-switch...

  • Page 22: Spare Parts

    Technical Information Spare Parts...

  • Page 23: Troubleshooting

    Troubleshooting Troubleshooting Error Messages The TS-series is equipped with a system of error messages via the internal lighting and the LED “Diag“. Error messages via the operator‘s light Additional messages only via the LED “Diag“ 2 x blinking 3 x blinking Limit switch error - either one of the limit switches is damaged Photo cell - either an obstacle was recognised by the photo cell or the relays on electronic board are damaged.

  • Page 24: Declaration Of Conformity

    EG-Richtlinien entsprechen. Type of Product / Produktart Garage Door Operator / Torantrieb Product Name / Modell TS 75, TS 100 Approved according to 89/336/EEC and 73/23/EEC / Geprüft nach 89/336/EWG und 73/23/EWG Referring EC-regulations: / Angewandte harmonisierte Normen: Electromagnetic Compatibility / EN 61000-3-2:2000 Elektromagnetische Verträglichkeit...
  • Page 25 Protection requirement concerning electromagnetic compatibility §3(1)(2), (Article 3(1)(b)) Schutzanforderungen in Bezug auf die elektromagnetische Verträglichkeit §3(1)2, Artikel 3(1)b)) EN 300 220-1/1997 EN 300 683/1997 EMV / EMC Directive 89/336/EEC;92/31/EEC;93/68/EEC Peter Seip, Geschäftsführer, Walzbachtal-Jöhlingen, 04.10.2004 GmbH �������� �������� ������� Grombacher Straße 83 75045 Walzbachtal-Jöhlingen...
  • Page 26 www.seip.com...
