Seip TS 75 Installation Instructions Manual
Hide thumbs
Also See for TS 75:
- User manual (8 pages) ,
- Installation instructions manual (26 pages) ,
- Installation instructions manual (23 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Seip TS 75
Summary of Contents for Seip TS 75

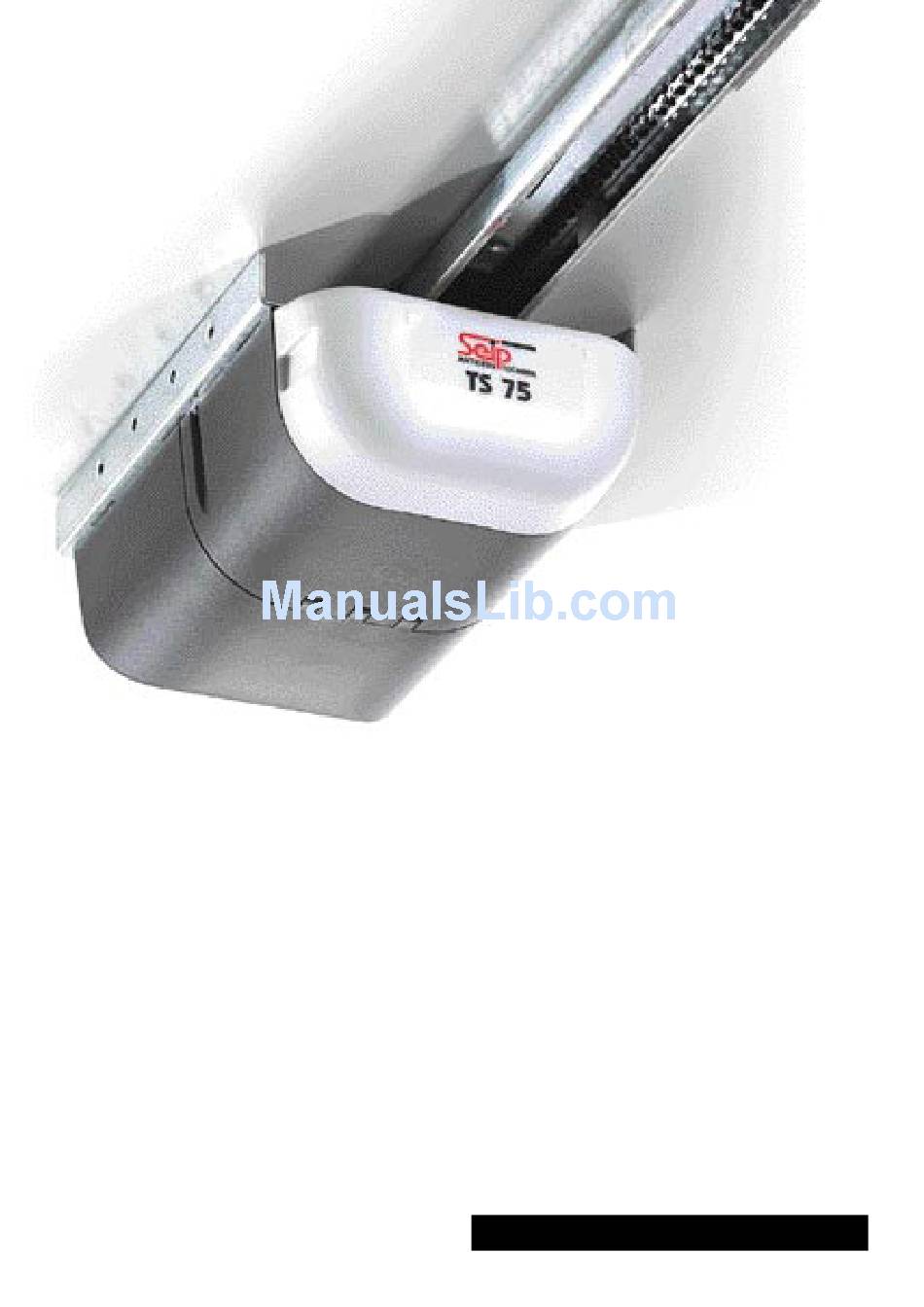

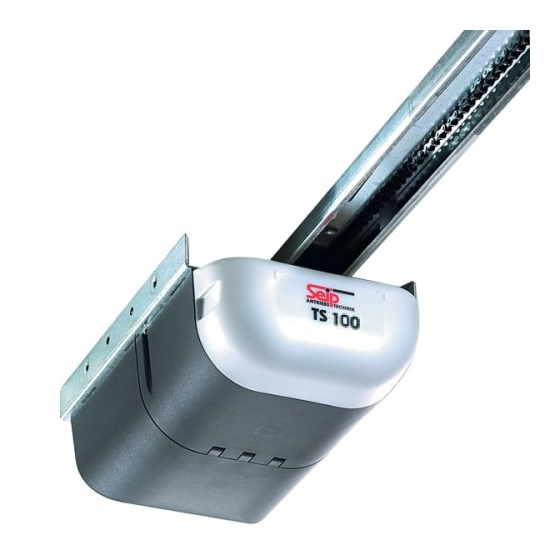

- Page 1 Installation Instructions for the garage door operators TS 75 TS 100 English...
-
Page 2: Table Of Contents
Content Information and Remarks Special Functions DIP-Switch Settings Important Information for the Installer Automatic Force Measurement Directives and Regulations Additional Force Use of the operators Pre-Warning light before every movement Garage Doors Full reversion in OPENING direction The installers declaration of conformity No reversion on Security-Beam when door closed Older Garage Doors Side Hinged Doors... -
Page 3: Information And Remarks
Directives and Regulations The operators TS 75 and TS 100 apply to the latest European directives and regulations. The declaration of conformity is enc- If, however, the dangers cannot be avoided we recommend to losed at the end of these instructions. -
Page 4: Security Advises For The Installation
Information and Remarks Security Advises for the Installation... -
Page 5: Installation
Installation Different Conditions for Installation Before installing the operator you should check the garage for the Minimum space above the garage door conditions of installation. You will need optional extras in either of the following situations: 35mm Minimum C-Rail Extension The garage door is higher than 2.250 mm: you will need a c-rail extension. -
Page 6: Pre-Mounting The Operator
Installation Pre-Mounting the operator During this procedure be careful not to twist the chain. Therefore do not lift the parts - slide them along the floor. 1. The operator is laying unpacked in front of you. The motor- head unit is on your right hand side. 2. -
Page 7: Installing The Operator
Installation Installing the operator Messure the distance between the ceiling and the highest point reached by the garage-door (1). The minimum-headroom necessary for mounting the operator is 35 mm. If there is less headroom please pay attention to page 2. The front fixing-angle can be mounted either at the lintel or at the ceiling. -
Page 8: The Emergency Release
Installation The Emergency Release In case of a power failure the garage door can be opened by Pic. 1 hand. Therefore the operator first needs to be released. When the garage door is the only entrance It is necessary to connect the emergency release to the doors handle (pic. -
Page 9: Printed Circuit Board: Adjustments And Connections
Printed Circuit Board: Adjustments and Connections Devices for Adjustments Potentiometer „PRESSURE OPEN/CLOSE“ (3) TEST/RUN-Button (1) With these potentiometers you must adjust the maximum force With this button you put the operator into operation. The button for the force learning cycle (please refer to the chapter „Auto- works on the OPEN-STOP-CLOSE principle, e.g. -
Page 10: Limit-Switch Adjustment And Force Measurement
Printed Circuit Board: Adjustments and Connections Limit-Switch Adjustment and Force Measurement Pictures: 1: TEST/RUN-Button 2: LERN/LEARN-Button 3: Potentiometer for Force-Adjustment Information The first steps to use the operator are to adjust the limit-switches and to learn the required force. Without these adjustments the operator will only run for approx. -
Page 11: Starting The Learning Cycle
Printed Circuit Board: Adjustments and Connections Limit-Switch Adjustment and Force Measurement Basics: During the learning-mode the operator will follow the Quick Reference limit-switches automatically when these are moved. 1.) Force Adjustment Adjust the maximum force for E.g.: The operator hits the CLOSING limit-switch but the gara- OPENING and CLOSING direction ge-door still is not completely closed. -
Page 12: The Most Important Connectors
M + N 230V AC power supply for external components. Shortcuts created by external compon- ents on this connector will influence the house-fuse directly. Receiver-Module HF-Modul / Plug for Seip remote-receiver cards. Receiver-Card Advanced Connectors Component Photo-Cell without selftest: C + D... -
Page 13: Security Beam And Hatch Door
Main Electronics: Adjustments and Connections Advanced Connectors Security Beam and Hatch Door E + F Function (mit 8,2 kOhm OPENING direction: when releasing the CLOSING limit-switch the connector is checked for 3 seconds (= hatch door closed or Auswertung) opened). Impulses coming in later during the OPENING cycle will be ignored. CLOSING direction: the connector is being checked throughout the whole CLOSING cycle. -
Page 14: Led-Lamps
Printed Circuit Board: Adjustments and Connections LED-Lamps Function LED „TEST“ „ON“ when a device connected to A+B (push-button, key-switch) Incoming Impuls No incoming impuls or the electronics‘ TEST-button gives an impuls LED „Diag“ „ON“ when an impuls from a programmed hand-transmitter is Incoming impuls from No incoming impuls received. -
Page 15: Special Functions
Printed Circuit Board: Adjustments and Connections Special Functions 1 2 3 4 5 6 DIP-Switch Settings DIP-Switch Function Automatic Force Measurement Standard setting: ON ATTENTION! In countries of the European Union the operator must be run with automatic force measurement - running it on manual force is illegal by law! In non-European countries the manual force may be used. -
Page 16: Remote Control
Remote Control Programming the hand-transmitters Basics 4-channel MIDI-transmitter, As a standard the operator is equipped with a 433 MHz AM 433 MHz, rolling code remote-control set. The coding is done via rolling code - the code is changed after each impuls; receiver and transmitter agree com- pletely automatic about the next code to be used. - Page 17 Remote Control...
-
Page 18: Technical Informationen
Technical Informationen Technical Data TS 75 TS 100 Maximum Pulling Force (adjustable) 70 kg (+/- 4%) 100 kg (+/- 4%) Maximale Anzahl Force-Setting for Operation automatic automatic Motor 24V DC, low-noise 24 V DC, low-noise Running Speed 14,5 cm/sec. 14,5 cm/sec. -
Page 19: Wiring
Technichal Informationen Wiring � � � � � � � � � � � � � � � � � � � � � � � � � � � � External connections Internal Wiring (Explained on pages 12 + 13) Blue, mains supply, 230V A + B Floating connector for push-button, key-switch... -
Page 20: Spare Parts
Technical Information Spare Parts... -
Page 21: Handling Problems
Handling Problems Malfunctions The TS-series is equipped with a system of error messages via the internal lighting and the LED „Diag“. Errormessages via the operators lighting 2 x blinking Limit-Switch error - either one of the limit-switches is damaged or the relais on electronic board are damaged. 5 x blinking Neither the OPENING limit-switch nor the CLOSING limit-switch were reached. -
Page 22: Declaration Of Conformity
Produkte den unten angegebenen EG-Richtlinien entsprechen. Type of Product Model Produktart Modell TS 75 Garage-Door-Operator/Torantrieb TS 100 Garage-Door-Operator/Torantrieb Approved according to 89336 EWG and 73/23 EWG Geprüft nach 89336 EWG und 79/23 EWG Referring EC-regulations:... - Page 23 Radio and Telecommunications unikationsendeinrichtungen (FTEG) und der Richtlinie Terminal Equipment Act (FTEG) and Directive 1999/5/EC 1999/5/EG (R&TTE) (R&TTE Directive) Wir, Seip Antriebstechnik Grombacher Straße 83, 75045 Walzbachtal-Jöhlingen, Deutschland declare that the product erklären, daß das Produkt SKR 433 Code B43A023004 Hand-Transmitter as remote-control for garage door operators Handsender als Fernbedienung für Garagentorantriebe...
