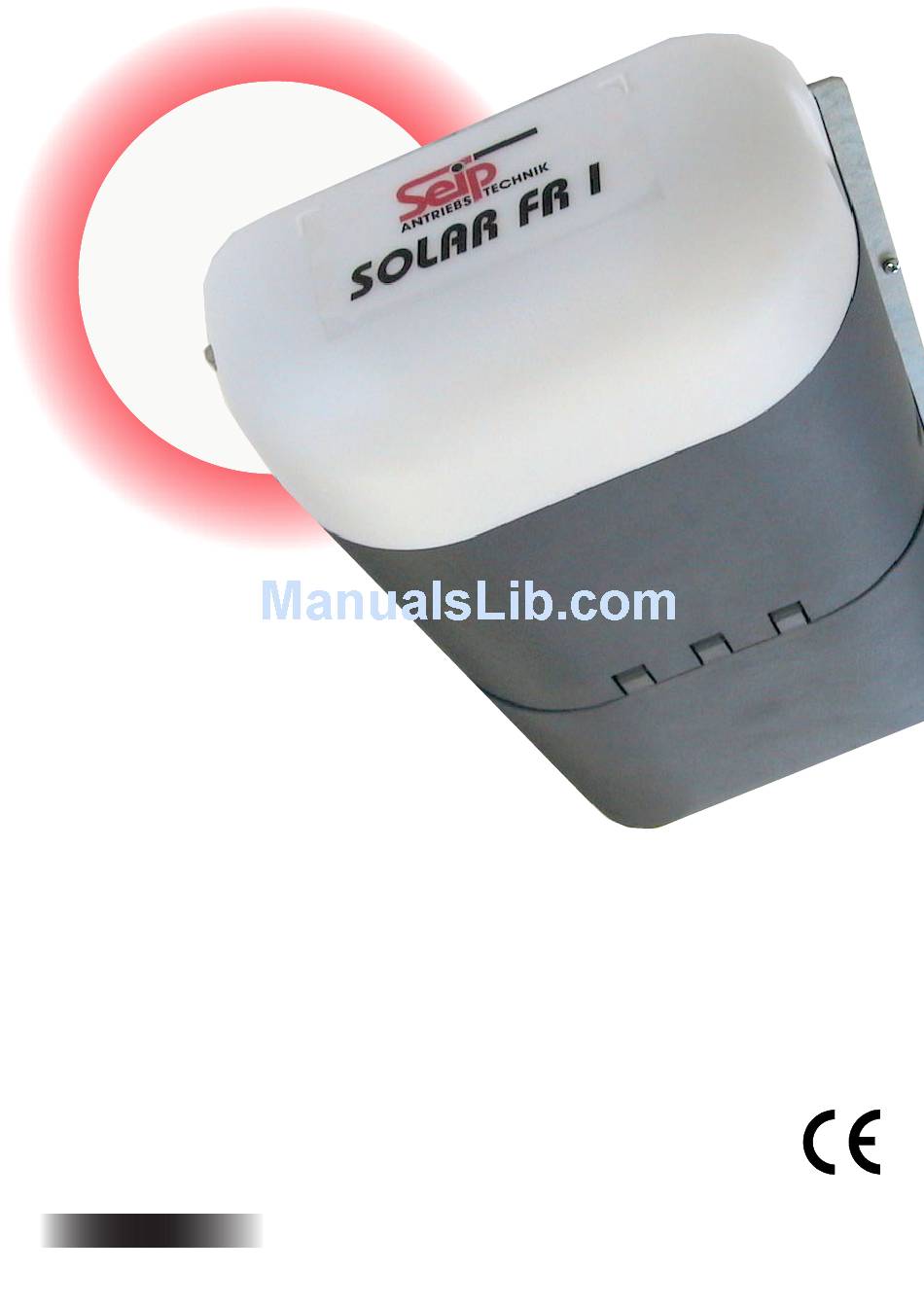

Installation Instructions
for Automatic Garage Door Operators
Solar FR I
Please read these instructions carefully!
We disclaim all liability under the terms of the warranty for any damage caused by improper installation!
GB
Approved according to the European Directives 89336 EEC and 73/23 EEC
V01-01 SOLDEC16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seip Solar FR I
Summary of Contents for Seip Solar FR I
-
Page 1: Installation Instructions
Installation Instructions for Automatic Garage Door Operators Solar FR I Please read these instructions carefully! We disclaim all liability under the terms of the warranty for any damage caused by improper installation! Approved according to the European Directives 89336 EEC and 73/23 EEC... - Page 2 BEFORE GETTING STARTED... (1) If the minimum headroom above the garage door is less than 35 mm (see page 4) you need a door-arm extension. The operator then must be mounted in the rear of your garage. (2) If your garage-door is higher than 2.25m a C-rail extension-piece is required. Otherwise the garage-door will not open completely.
- Page 3 MOUNTING Before fitting the operator to the ceiling we recommend you detach the motor- head unit; mounting the C-rail will then be easier. You will find the instructions on how to detach the motor-head on page 4. Measure the distance between the ceiling and the highest point reached by the garage door (1).
-
Page 4: Connecting The Battery
CONNECTING THE BATTERY To prevent the battery from discharging while in stock the Solar FRI is delivered with one disconnected battery cable. To use the operator this cable must first be plugged onto the open battery connector (please refer to the sketches aside) - or else the operator will not work. -
Page 5: Limit Switch Setting
LIMIT SWITCH SETTING Your garage door opener automatically stops when one of the red limit-switch actuators trips a limit-switch (in either CLOSING or OPENING direction). Adjust the limit-switches by hand. OPENING direction Please set the limit-switch actuator for the OPENING direction so that the door comes to a halt about 30 mm (1.2") before its final resting position. - Page 6 THE SOLAR PANEL Together with the Solar FR I you receive a solar panel and a fixing-bracket (in 2 parts). The panel transforms solar energy into electricity which is used to recharge the batteries. With a supply of 7 Watts the panel is sufficient for the average day light all year for most European countries.
-
Page 7: Force Adjustment
FORCE ADJUSTMENT The force needs to be adjusted separately for OPENING and CLOSING direction. To get the forces right you might need a couple of tries. Please take your time for these adjustments. You should not use more force than necessary to operate your door (danger of injuries)! Therefore please reduce both forces first. -
Page 8: Remote Control
REMOTE-CONTROL A - Receiver-module (HF-module) Determines the frequency used (e.g. 40 or 433 Mhz) B - Decoder board Determines the coding-system: 12-bit or rolling code (Description on the reverse side board: Lern 12-bit = 12-bit decoder Lern Rol. = rolling code) C - MIDI transmitter, rolling-code D - MIDI transmitter, 12-bit Difference: 12-bit and rolling code... -
Page 9: Technical Data
TECHNICAL DATA Technical Data Solar FR I Motor 24V DC, low-noise Gear self-locking, 70kg Running Speed 13 cm/sec. Max. OPENING-CLOSING force 75 kg Power Supply Solar/Battery Lead-Gelly, 24V Lighting 24V, 15W, 1.5 min./Cycle Lighting Duration 90 sec. Energy-Management permanent supply... -
Page 10: Safety Instructions
SAFETY INSTRUCTIONS Important Safety Instructions for Installation WARNING: INCORRECT INSTALLATION CAN LEAD TO SEVERE INJURY Follow all Installation Instructions. - Before installing the drive, remove unnecessary ropes from the existing installation - If possible, install the drive at a height of at least 2.10 m and the manual release at a height less than 1.80 m - Locate the control actuator within sight of the door but away from moving parts and at a minimum height of 1.50 m... -
Page 11: Ec Declaration Of Confirmity
Telecommunications Terminal Equipment Act (FTEG) and Directive 1999/5/EC (R&TTE und der Richtlinie 1999/5/EG (R&TTE) Directive) Wir, Seip Antriebstechnik Grombacher Straße 83, 75045 Walzbachtal-Jöhlingen, Deutschland declare that the product erklären, daß das Produkt 433 RC AM Hand-Transmitter as remote-control for garage door operators Handsender als Fernbedienung für Garagentorantriebe...
