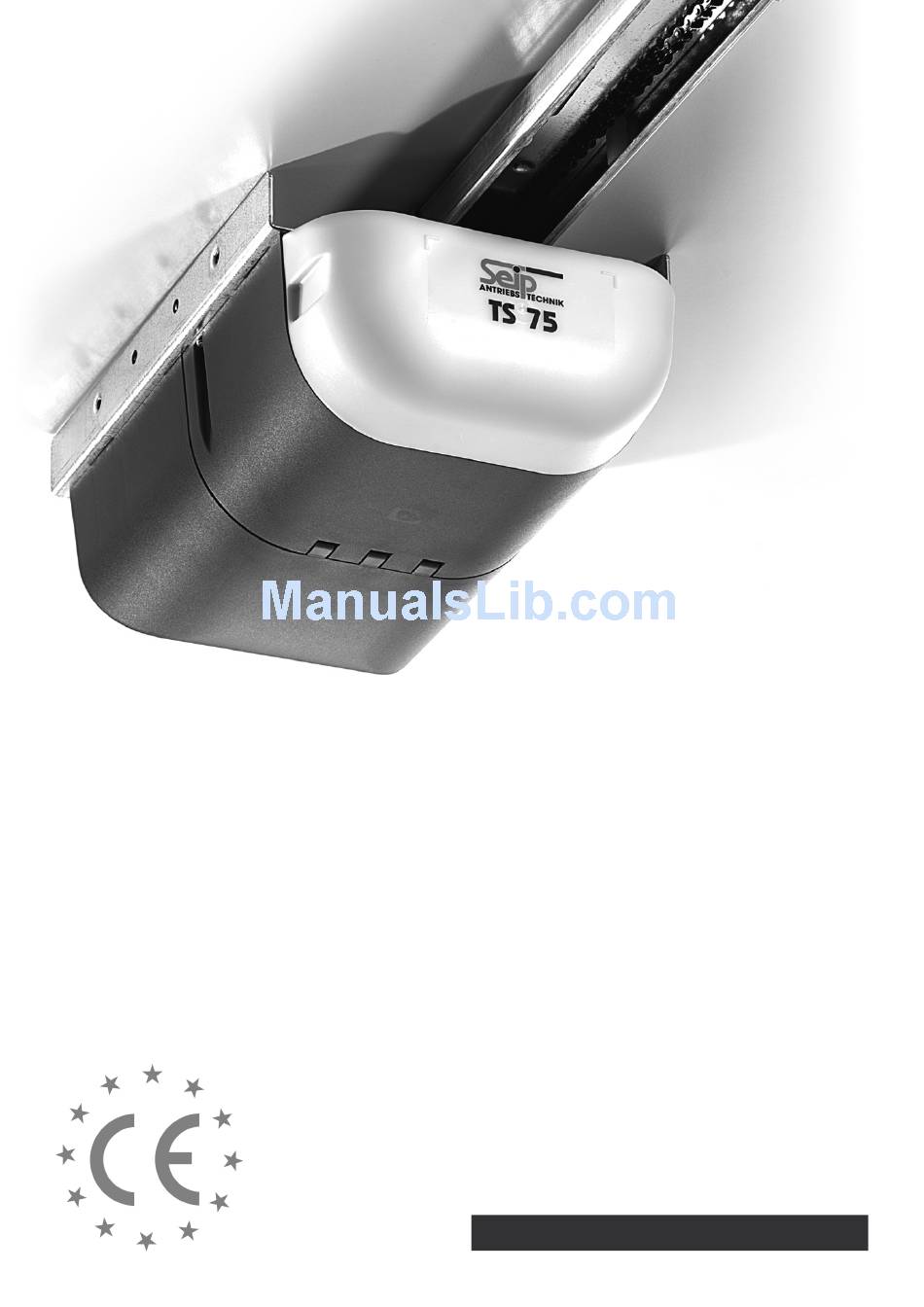

- Page 1 01933 274276 Installation Instructions for the garage door operators TS 75 TS 100 English...
-
Page 2: Table Of Contents
www.samsondoors.co.uk 01933 274276 Content Information and Remarks Remote Control Directives and Regulations Programming the Hand Transmitters 16 Use of the operators Basics Garage Doors Programming Transmitter and Receiver The installers declaration of conformity Clearing the receivers‘ memory Older Garage Doors Additional Information 17 Important Information for the Installer 3 Criterias influencing the range... -
Page 3: Information And Remarks
Seip door operator with any garage door that has been ap- proved for use with other certified door operators! Directives and Regulations The operators TS 75 and TS 100 comply to the latest European di- rectives and regulations. The declaration of conformity is enclosed at the end of these instructions. -
Page 4: Security Advises For The Installation
www.samsondoors.co.uk 01933 274276 Information and Remarks Security Advises for the Installation Important Safety Instructions for Installation WARNING: INCORRECT INSTALLATION CAN LEAD TO SEVERE INJURY Follow all Installation Instructions. - Read page 3 of this instruction carefully before the installation - Before installing the drive, remove unnecessary ropes from the existing installation - Maintain the garage door according to the advises on page 3 and to the door manufacturer’s manual... -
Page 5: Installation
www.samsondoors.co.uk 01933 274276 Installation Different Conditions for Installation Before installing the operator you should check the garage for the Minimum space above the garage door conditions of installation. You will need optional extras in either of the following situations: 35mm Minimum C-Rail Extension If the garage door is higher than 2.250 mm you will need a c-rail extension. -
Page 6: Pre-Mounting The Operator
www.samsondoors.co.uk 01933 274276 Installation Pre-Mounting the operator During this procedure be careful not to twist the chain. Therefore do not lift the parts - slide them along the floor. 1. The operator is laying unpacked in front of you. The motor- head unit is on your right hand side. -
Page 7: Installing The Operator
www.samsondoors.co.uk 01933 274276 Installation Installing the operator Meassure the distance between the ceiling and the highest point reached by the garage door (1). The minimum-headroom necessary for mounting the operator is 35 mm. If there is less headroom please pay attention to page 5. The front fixing angle can be mounted either at the lintel or at the ceiling. -
Page 8: The Emergency Release
www.samsondoors.co.uk 01933 274276 Installation The Emergency Release In case of a power failure the garage door can be opened by Pic. 1 hand. Therefore the operator first needs to be released. When the garage door is the only entrance It is necessary to connect the emergency release to the door‘s handle (pic. -
Page 9: Printed Circuit Board: Adjustments And Connections
www.samsondoors.co.uk 01933 274276 Printed Circuit Board: Adjustments and Connections Devices for Adjustments This page only shows the functions of the buttons and potentiometers on the P.C.B.. To programme the operator ple- ase refer to page 10 onwards. Potentiometer “PRESSURE OPEN/CLOSE“ (3) TEST/RUN-Button (1) With these potentiometers you must adjust the maximum force With this button you put the operator into operation. -
Page 10: Limit-Switch Adjustment And Force Measurement
www.samsondoors.co.uk 01933 274276 Printed Circuit Board: Adjustments and Connections Limit-Switch Adjustment and Force Measurement Pictures: 1: TEST/RUN-Button 2: LERN/LEARN-Button 3: Potentiometer for Force Adjustment Information To use the operator the following steps must be carried out to adjust the limit-switches and to learn the required force. Without these adjustments the operator will only run for the factory set distance when pressing the TEST-button. -
Page 11: Starting The Learning Cycle
www.samsondoors.co.uk 01933 274276 Printed Circuit Board: Adjustments and Connections Limit-Switch Adjustment and Force Measurement Basics: During the learning-mode the operator will follow the Quick Reference limit-switches automatically when these are moved. 1.) Force Adjustment Adjust the maximum force for E.g.: The operator hits the CLOSING limit-switch but the garage- OPENING and CLOSING direction door still is not completely closed. -
Page 12: The Most Important Connectors
M + N 230V AC power supply for external components. Shortcuts created by external compo- nents on this connector will influence the house fuse directly. Receiver-Module HF-Modul / Plug for Seip remote-receiver cards. Receiver-Card Advanced Connectors Component Photo-Cell without selftest:... -
Page 13: Security Beam And Hatch Door
www.samsondoors.co.uk 01933 274276 Printed Circuit Board: Adjustments and Connections Advanced Connectors Security Beam and Hatch Door E + F Function (mit 8,2 kOhm OPENING direction: when releasing the CLOSING limit-switch the connector is checked for 3 seconds (= hatch door closed or Auswertung) opened). -
Page 14: Led-Lamps
www.samsondoors.co.uk 01933 274276 Printed Circuit Board: Adjustments and Connections LED-Lamps Function LED “TEST“ “ON“ when a device connected to A+B (push-button, key-switch) Incoming impulse No incoming im- or the electronics‘ TEST-button gives an impulse pulse LED “Diag“ “ON“ when an impulse from a programmed hand-transmitter is Incoming impulse No incoming im- received. -
Page 15: Special Functions
www.samsondoors.co.uk 01933 274276 Printed Circuit Board: Adjustments and Connections Special Functions 1 2 3 4 5 6 DIP-Switch Settings DIP-Switch Function Automatic Force Measurement Standard setting: ON ATTENTION! In countries of the European Union the operator must be run with automatic force measurement - running it on manual force is illegal! In non-European countries the manual force may be used. -
Page 16: Remote Control
www.samsondoors.co.uk 01933 274276 Remote Control Programming the Hand Transmitters Basics Quick reference: programming the first hand transmitter As a standard the operator is equipped with a 433 MHz AM 1.) Keep the LERN/LEARN The operators‘ light will start remote control set. The coding is done via rolling code - the code button pressed for approx. -
Page 17: Additional Information
www.samsondoors.co.uk 01933 274276 Remote Control Additional Information 4-channel MIDI transmitter, 2-channel MINI transmitter (optional extra), 433 MHz, rolling code 433 MHz, rolling code Two Batteries Battery Usable types of batteries: A23, 23A, 23L, EL12, VR 22 and Two batteries, type CR1616 or DL1616 are required. MN 21 Voltage: 2* 3V (=6V) Voltage: 12V... -
Page 18: Technical Information
01933 274276 Technical Information Technical Data TS 75 TS 100 Maximum Pulling Force (adjustable) 70 kg (+/- 4%) 100 kg (+/- 4%) Force-Setting for Operation automatic automatic Motor 24V DC, low-noise 24 V DC, low-noise Running Speed 14,5 cm/sec. -
Page 19: Wiring
www.samsondoors.co.uk 01933 274276 Technichal Information Wiring � � �� �� � � � � � � � � � � � � � � � � � � � � � � External connections Internal Wiring (Explained on pages 12 + 13) Blue, mains supply, 230V A + B Floating connector for push-button, key-switch... -
Page 20: Spare Parts
www.samsondoors.co.uk 01933 274276 Technical Information Spare Parts... -
Page 21: Troubleshooting
www.samsondoors.co.uk 01933 274276 Troubleshooting Troubleshooting Error Messages The TS-series is equipped with a system of error messages via the internal lighting and the LED “Diag“. Error messages via the operator‘s light Additional messages only via the LED “Diag“ 2 x blinking 3 x blinking Limit switch error - either one of the limit switches is damaged Photo cell - either an obstacle was recognised by the photo cell... - Page 22 EG-Richtlinien entsprechen. Type of Product / Produktart Garage Door Operator / Torantrieb Product Name / Modell TS 75, TS 100 Approved according to 89/336/EEC and 73/23/EEC / Geprüft nach 89/336/EWG und 73/23/EWG Referring EC-regulations: / Angewandte harmonisierte Normen: Electromagnetic Compatibility / EN 61000-3-2:2000 Elektromagnetische Verträglichkeit...
- Page 23 Protection requirement concerning electromagnetic compatibility §3(1)(2), (Article 3(1)(b)) Schutzanforderungen in Bezug auf die elektromagnetische Verträglichkeit §3(1)2, Artikel 3(1)b)) EN 300 220-1/1997 EN 300 683/1997 EMV / EMC Directive 89/336/EEC;92/31/EEC;93/68/EEC Peter Seip, Geschäftsführer, Walzbachtal-Jöhlingen, 16.06.2003 GmbH �������� �������� ������� Grombacher Straße 83 75045 Walzbachtal-Jöhlingen...
