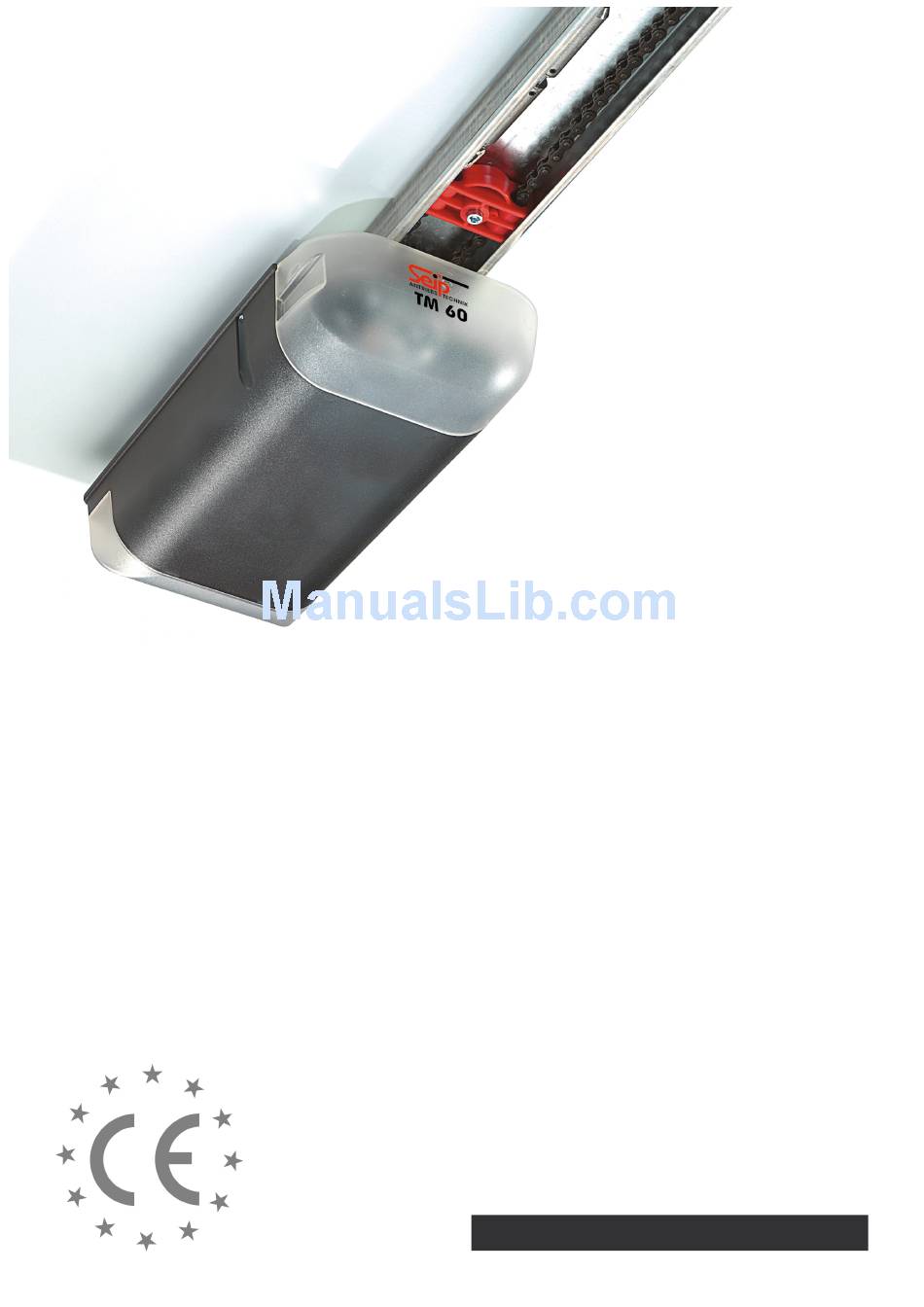

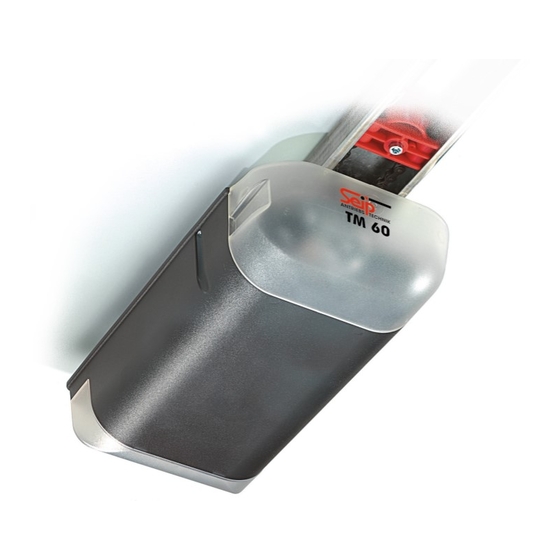

Page 1: Installation Instructions
01926 463888 www.garagedoorsonline.co.uk Installation Instructions for the garage door operator TM 60 English www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk... -
Page 2: Table Of Contents
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Content Information and Remarks Remote Control Directives and Regulations Programming the Hand Transmitters 15 Use of the operators Basics Garage Doors Programming Transmitter and Receiver The installers declaration of conformity Additional Information 16 Older Garage Doors Criterias influencing the range Important Information for the Installer 3 Use with a HomeLink©... -
Page 3: Information And Remarks
Information and Remarks Important Information for the Installer It is within legal regulation and without restriction, to use a Seip door operator with any garage door that has been ap- proved for use with other certified door operators! Directives and Regulations The garage door operator TM60 complies to the latest European directives and regulations. -
Page 4: Security Advises For The Installation
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Information and Remarks Security Advises for the Installation Important Safety Instructions for Installation WARNING: INCORRECT INSTALLATION CAN LEAD TO SEVERE INJURY Follow all Installation Instructions. - Read page 3 of this instruction carefully before the installation - Before installing the drive, remove unnecessary ropes from the existing installation - Maintain the garage door according to the advises on page 3... -
Page 5: Installation
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Installation Different Conditions for Installation Before installing the operator you should check the garage for the Minimum space above the garage door conditions of installation. You will need optional extras in either of the following situations: 35mm Minimum C-Rail Extension If the garage door is higher than 2.250 mm you will need a c-rail... -
Page 6: Pre-Mounting The Operator
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Installation Pre-Mounting the operator During this procedure be careful not to twist the chain. Therefore do not lift the parts - slide them along the floor. 1. The operator is laying unpacked in front of you. The motor- head unit is on your right hand side. - Page 7 www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Installation Installing the operator 3. Attach the C-rail to the front fi xing angle (3). Put a carton piece under the motor head unit to avoid damages. 4. To fi x the motor head to the ceiling we recommend you to use a ladder (4).
-
Page 8: Adjusting The Running-Length Blocks
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Installation Adjusting the running-length blocks These adjustments must be made before the programming of the forces and the running-length. Starting the programming procedure without correctly ad- justed blocks may lead to damages on the garage door and the operator! Vorgehensweise: 1. -
Page 9: The Emergency Release
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Installation The Emergency Release In case of a power failure the garage door can be opened by Pic. 1 hand. Therefore the operator first needs to be released. When the garage door is the only entrance It is necessary to connect the emergency release to the door‘s handle (pic. -
Page 10: Printed Circuit Board: Adjustments And Connections
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Printed Circuit Board: Adjustments and Connections Devices for Adjustments M O 9 1 0 - V 2 H F - M O D U L / R E C E I V E R C A R D A n t P r ä... -
Page 11: Programming Running-Length And Force
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Printed Circuit Board: Adjustments and Connections Programming Running-Length and Force M O 9 1 0 - V 2 H F - M O D U L / R E C E I V E R C A R D A n t P r ä... -
Page 12: Special Functions
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Printed Circuit Board: Adjustments and Connections Special Functions Readjusting the CLOSING soft-stop Quick Reference „CLOSING Soft-Stop“ The TM60 is shipped with a factory pre-set length for the soft-stop 1.) First measurement-run; Press the LERN/LEARN button in closing direction. It might be necessary to extend the length of the operator is running in and keep it pressed- the operator the soft-stop, especially in cases where the door is slaming in spite... -
Page 13: External Connections
� � 24V DC Supply 24V DC power supply for external components (external receiver, photo-cell), a maxi- mum of 150 mAmp. is allowed. Receiver-Module HF-Modul / Plug for Seip remote-receiver cards. Receiver-Card www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk... -
Page 14: Led-Lamps
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Printed Circuit Board: Adjustments and Connections LED-Lamps M O 9 1 0 - V 2 H F - M O D U L / R E C E I V E R C A R D A n t K R A F T / P r ä... -
Page 15: Remote Control
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Remote Control Programming the Hand Transmitters Basics Quick reference: programming the first hand transmitter As a standard the operator is equipped with a 433 MHz AM 1.) Keep the LERN/LEARN The operators‘ light will start remote control set. The coding is done via rolling code - the code button pressed for approx. -
Page 16: Additional Information
www.garagedoorsonline.co.uk 01926 463888 www.garagedoorsonline.co.uk Remote Control Additional Information 4-channel MIDI transmitter, 2-channel MINI transmitter (optional extra), 433 MHz, rolling code 433 MHz, rolling code Two Batteries Battery Usable types of batteries: A23, 23A, 23L, EL12, VR 22 and Two batteries, type CR1616 or DL1616 are required. MN 21 Voltage: 2* 3V (=6V) Voltage: 12V... -
Page 17: Technical Information
01926 463888 www.garagedoorsonline.co.uk Technical Information Technical Data TM 60 Power Supply 190-250V AC Maximum Pulling Force (adjustable) 60 kg (+/- 4%) Transformer 230V AC, 24V DC Pre-Warning Light adjustable Force-Setting for Operation automatic Soft-Stop in Closing Direction adjustable Motor... -
Page 18: Troubleshooting
Technichal Information Troubleshooting Error Messages The TM 60 is equipped with a system of error messages via the internal lighting and the LED “Diag“. Error messages via the operator‘s light 2 x blinking Running-time error - the operator did not reach the running- length block within the programmed distance. - Page 19 Safety in use of power operated doors, requirements / Nutzungssicherheit kraftbetätigter Tore, Anforderungen EN 12445:2000 Safety in use of power operated doors, Test methods / Nutzungssicherheit kraftbetätigter Tore, Prüfverfahren Peter Seip, Geschäftsführer, Walzbachtal-Jöhlingen, 16.06.2003 GmbH �������� �������� ������� Grombacher Straße 83 75045 Walzbachtal-Jöhlingen...
- Page 20 Protection requirement concerning electromagnetic compatibility §3(1)(2), (Article 3(1)(b)) Schutzanforderungen in Bezug auf die elektromagnetische Verträglichkeit §3(1)2, Artikel 3(1)b)) EN 300 220-1/1997 EN 300 683/1997 EMV / EMC Directive 89/336/EEC;92/31/EEC;93/68/EEC Peter Seip, Geschäftsführer, Walzbachtal-Jöhlingen, 16.06.2003 GmbH �������� �������� ������� Grombacher Straße 83 75045 Walzbachtal-Jöhlingen...
Need help?
Do you have a question about the TM 60 and is the answer not in the manual?
Questions and answers
I had a power outage, power came back on but there isnt any power to the opener cos no lights are on. my unit is the TM60 garage door does not operate. What can I do.
If your Seip TM 60 garage door opener has no power after a power outage, unlock the carriage using the emergency release. If your garage can only be accessed from outside, use the key to unlock the door and turn the handle to release the opener. If you can enter from inside, pull the Bowden cable hanging from the carriage to unlock it. Then, open the door manually.
