Summary of Contents for Seip TS Akku II

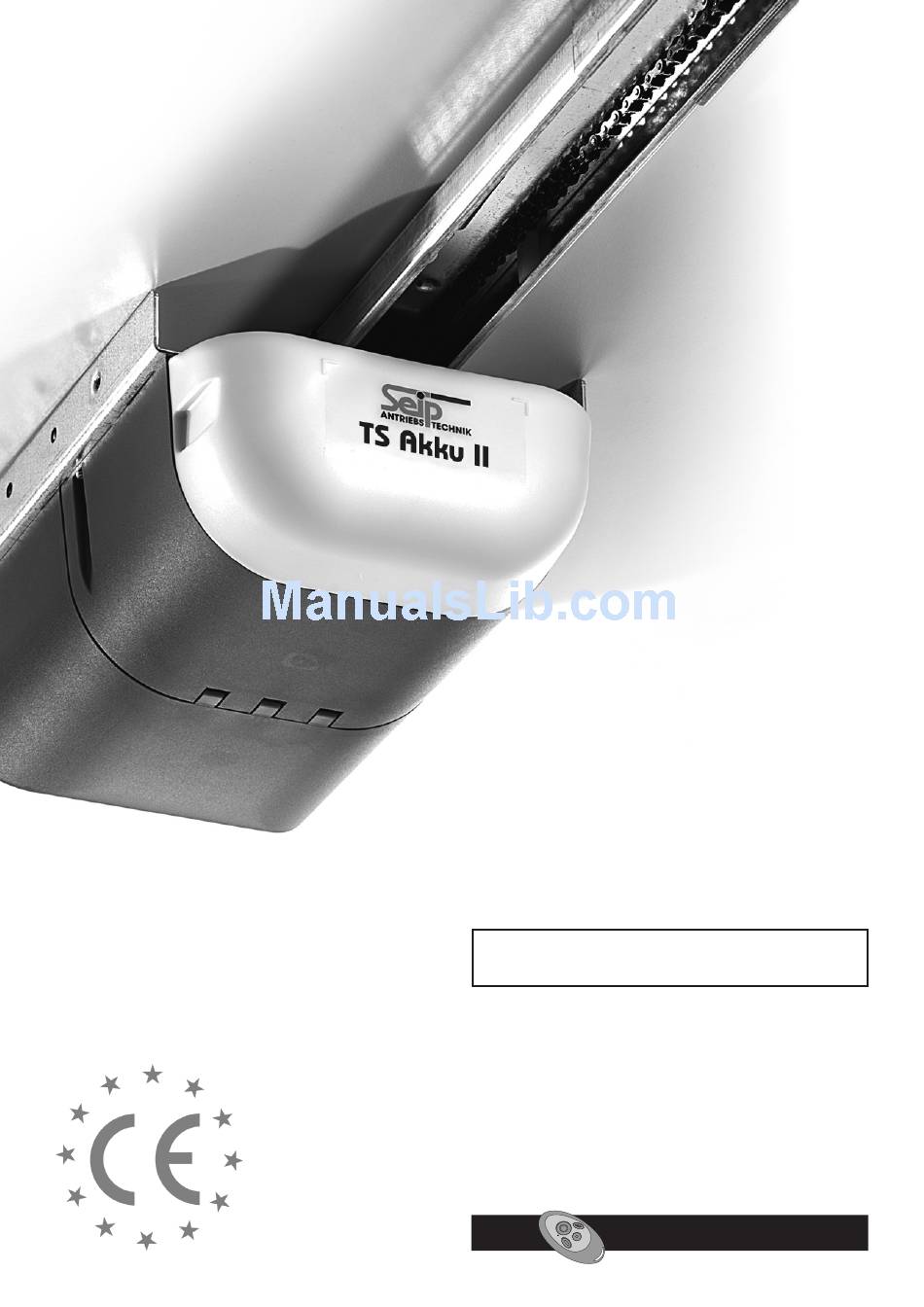

- Page 1 Installation Instructions for the garage door operator TS Akku II This booklet must be handed over to the end-user together with the user-manual. English...
-
Page 2: Table Of Contents
Content Information and Remarks Special Functions 14 Readjusting the time for the internal light Important Information for the Installer 3 Setting the pre-warning ON/OFF Directives and Regulations Programming the Soft-Modes Use of the operators The BOTTOM Soft-Stop Garage Doors Programming the BOTTOM Soft-Mode The installers declaration of conformity Disabling the TOP Soft-Modes Older Garage Doors... -
Page 3: Information And Remarks
Information and Remarks Important Information for the Installer It is within legal regulation and without restriction, to use a Seip door operator with any garage door that has been ap- proved for use with other certified door operators! Directives and Regulations The garage door operator TS Solar/TS Akku complies to the latest European directives and regulations. -
Page 4: Security Advises For The Installation
Information and Remarks Security Advises for the Installation Important Safety Instructions for Installation WARNING: INCORRECT INSTALLATION CAN LEAD TO SEVERE INJURY Follow all Installation Instructions. - Read page 3 of this instruction carefully before the installation - Before installing the drive, remove unnecessary ropes from the existing installation - Maintain the garage door according to the advises on page 3 and to the door manufacturer’s manual... -
Page 5: Installation
Installation Different Conditions for Installation Before installing the operator you should check the garage for the Minimum space above the garage door conditions of installation. You will need optional extras in either of the following situations: 35mm Minimum C-Rail Extension If the garage door is higher than .50 mm you will need a c-rail extension. -
Page 6: Pre-Mounting The Operator
Installation Pre-Mounting the operator During this procedure be careful not to twist the chain. Therefore do not lift the parts - slide them along the floor. 1. The operator is laying unpacked in front of you. The motor- head unit is on your right hand side. 2. - Page 7 Installation Installing the operator 3. Attach the C-rail to the front fixing angle (3). Put a carton piece under the motor head unit to avoid damages. 4. To fix the motor head to the ceiling we recommend you to use a ladder (4).
-
Page 8: Adjusting The Running-Length Blocks
Installation Adjusting the running-length blocks These adjustments must be made before the programming of the forces and the running-length. Starting the programming procedure without correctly ad- justed blocks may lead to damages on the garage door and the operator! Vorgehensweise: 1. -
Page 9: The Emergency Release
Installation The Emergency Release In case of a power failure the garage door can be opened by Pic. 1 hand. Therefore the operator first needs to be released. When the garage door is the only entrance It is necessary to connect the emergency release to the door‘s handle (pic. -
Page 10: The Solar Components
The Solar Components Mounting the Shelf The shelf can take two batteries and is equipped with a 5m cable to supply the operator with power. Take care to install the shelf 5m cable within the range of the 5m cable. for the operators power supply Mount the shelf to the wall using the supplied screws, then run... -
Page 11: Using And Recharging The Batteries
The Solar Components Using and Recharging the Batteries Attention: For recharging the batteries ONLY the supplied charger must be used - for damages on the batteries caused by usage of an incorrect charger no guarantee can be claimed. Recharging the battery with the charger - Take the flat battery out of the shelf and take it into the house for recharging it (pic. -
Page 12: Printed Circuit Board: Adjustments And Connections
Printed Circuit Board: Adjustments and Connections Before Usage: Connecting the Battery Cable Before using the TS-Solar/TS-Akku the battery needs to be connected to the P.C.B.! Bat. The red and black battery cables are equipped with a polarized plug which needs to plugged onto the electronics connector „Bat. -
Page 13: Programming Running-Length And Force
Printed Circuit Board: Adjustments and Connections Programming Running-Length and Force 1 2 3 Information Quick Reference To properly use the operator it is necessary to programme the run- 1.) Adjustment of blocks The running-length blocks for ning-length and the force. Using the operator without these opening and closing direction important adjustments may lead to damages on the garage must be properly adjusted (please... -
Page 14: Special Functions
Printed Circuit Board: Adjustments and Connections Special Functions Readjusting the time for the internal light Quick Reference „Time for internal light“ The time for the internal light may be adjusted from 10 seconds to 1.) Keep the red LEARN After 3 seconds the operators‘ 5 minutes. -
Page 15: Programming The Soft-Modes
Printed Circuit Board: Adjustments and Connections Special Functions Programming the Soft-Modes The TS Solar/TS Akku is shipped with factory pre-set values for the Soft-Modes; if the learning cycle is run without any changes to the factory-settings, then the pre-set values will be programmed automatically. -
Page 16: External Connections
This connector only carries voltage as long as the operators light in switched on; it can therefore not be used for external remote-receivers! +12V LS-TST Receiver-Module HF-Modul / Plug for a Seip receiver module Receiver-Card Advanced Connections Component Photocell without self-test N.C. -
Page 17: Safety-Beam, Hatch-Door And Emergency Stop
Printed Circuit Board: Adjustments and Connections Advanced Connections 1 2 3 Safety-Beam, Hatch-Door and Emergency Stop (N.O.) Function (with 8, kOhm The devices on this connector are checked during the complete opening and closing procedure. When this connector is inter- resistor) rupted, then the operator will stop immediately followed by a short reversion. -
Page 18: Remote Control
Remote Control Programming the Hand Transmitters Basics Quick reference: programming the first hand transmitter As a standard the operator is equipped with a 433 MHz AM 1.) Keep the LERN/LEARN The operators‘ light will start remote control set. The coding is done via rolling code - the code button pressed for approx. -
Page 19: Additional Information
Remote Control Additional Information Using the remote-control 4-channel MIDI transmitter, 433 MHz, rolling code To reduce the power consumption the remote-receiver is being switched on and off in short intervalls when the operator is in stand-by mode. Therefore the hand transmitters button must be kept pressed for approx. -
Page 20: Technical Information
RA11P ≤ 60 dB(A) Noise-Emission Expected Accumulator Life-Time 3 to 5 years approx. Power Supply TS Akku II Lead-Accumulator, 1V, Used batteries require a special waste management 1Ah, Type Panasonic LC- Used batteries must be disposed according to national RA11P... -
Page 21: Messages From Led-Lamps And Operators Lighting
Technichal Information Messages from LED-lamps and operators lighting The TS Solar/TS Akku is equipped with an automatic diagnostic system which provides information via the external LED-lamps. These messages are: Status Messages In intervalls of 10 seconds the yellow and green LED-lamps give information about the battery status and if the battery is being rechared or not. - Page 22 Safety in use of power operated doors, requirements / Nutzungssicherheit kraftbetätigter Tore, Anforderungen EN 12445:2000 Safety in use of power operated doors, Test methods / Nutzungssicherheit kraftbetätigter Tore, Prüfverfahren Peter Seip, Geschäftsführer, Walzbachtal-Jöhlingen, 4.01.005 GmbH ANTRIEBS ANTRIEBS TECHNIK Grombacher Straße 83 75045 Walzbachtal-Jöhlingen...
- Page 23 Protection requirement concerning electromagnetic compatibility §3(1)(), (Article 3(1)(b)) Schutzanforderungen in Bezug auf die elektromagnetische Verträglichkeit §3(1)2, Artikel 3(1)b)) EN 300 220-1/1997 EN 300 683/1997 EMV / EMC Directive 89/336/EEC;92/31/EEC;93/68/EEC Peter Seip, Geschäftsführer, Walzbachtal-Jöhlingen, 16.06.003 GmbH ANTRIEBS ANTRIEBS TECHNIK Grombacher Straße 83 75045 Walzbachtal-Jöhlingen...
