Vaddio™ ClearVIEW™ HD-18
High-Definition PTZ Camera
Model Number 999-6900-000W (North America)
Model Number 999-6900-001W (International)
Arctic White Version
©2010 Vaddio - All Rights Reserved. ClearVIEW HD-18 - Document Number 341-885 Rev. C
Installation and User Guide
Model Number 999-6900-000 (North America)
Model Number 999-6900-001 (International)
Advertisement
Table of Contents
Related Manuals for VADDIO 999-6900-000W
Summary of Contents for VADDIO 999-6900-000W

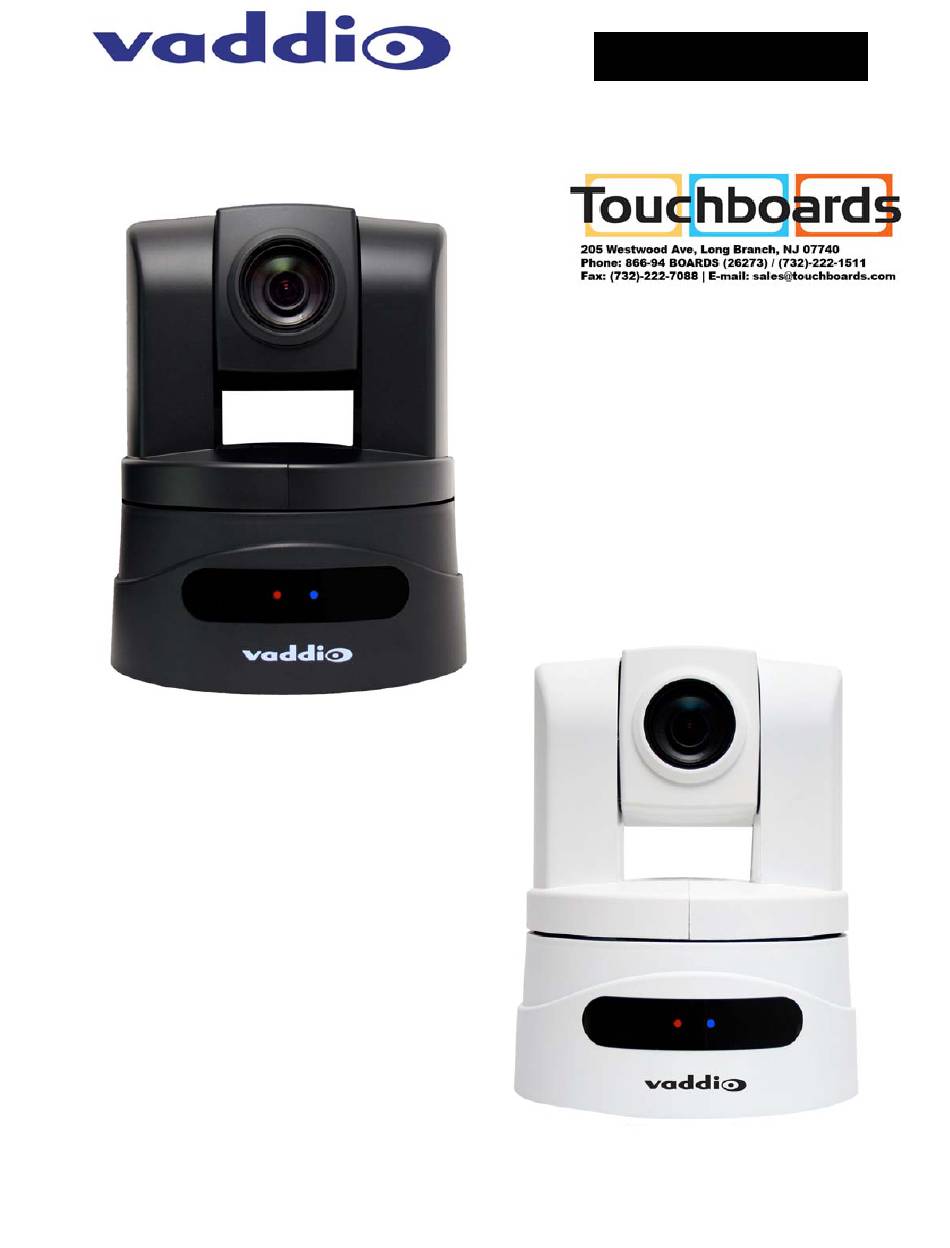

- Page 1 Vaddio™ ClearVIEW™ HD-18 High-Definition PTZ Camera Model Number 999-6900-000 (North America) Model Number 999-6900-001 (International) Model Number 999-6900-000W (North America) Model Number 999-6900-001W (International) Arctic White Version ©2010 Vaddio - All Rights Reserved. ClearVIEW HD-18 - Document Number 341-885 Rev. C...
- Page 2 Save These Instructions: The information contained in this manual will help you install and operate your Vaddio ClearVIEW HD-18. If these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the Vaddio website.

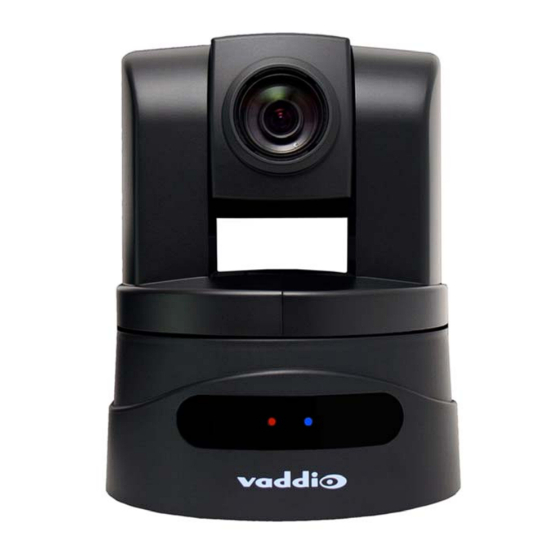

- Page 3 One (1) Vaddio IR Remote Commander • One (1) EZCamera™ Control Adapter (RJ-45 to DB-9) • One (1) Vaddio PowerRite™ 12 VDC, 3 Amp Power Supply • One (1) AC Cord Set (US or UK and Europe) • Documentation and Manuals Figure 2: ClearVIEW HD-18 camera (front) Camera –...
- Page 4 ClearVIEW HD-18 Figure 3: ClearVIEW HD-18 camera (back) RS-232 In & IR Out – The RS-232 accepts VISCA protocol for camera control, as well as transmits IR signaling received by the IR receivers, which can be transmitted to third party devices. DIP Switch Settings –...
- Page 5 For RS-232, use a standard CAT-5 cable (568B termination for RJ-45 connectors) from the RS-232 port on the back of a Vaddio ProductionVIEW camera controller or switcher. If the camera will be connected to a third-party control system (such as AMX or Crestron), a DB-9 to RJ-45 adapter is supplied with the camera for RS-232.
-
Page 6: Optional Accessories
ClearVIEW HD-18 Figure 6: Standard wiring configuration of the camera to a Vaddio Joystick controller. Rear Panel of ClearVIEW HD-18 YPbPr HD Monitor RS-232 (Simulated Feed) 12V - 3A PowerRite Power Supply ProductionVIEW Precision Camera Controller NOTE: Strain relief for the 15-pin connector on the back of the camera is highly recommended. -
Page 7: Compliance And Ce Declaration Of Conformity
This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. -
Page 8: Warranty Information
Vaddio Customer service – Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. - Page 9 ClearVIEW HD-18 General Specifications: ClearVIEW HD-18 ClearVIEW HD-18 999-6900-000 (North America), Part Numbers ClearVIEW HD-18W (Arctic white version - North America) 999-6900-000W ClearVIEW HD-18 999-6900-001 (INT’L) ClearVIEW HD-18W (Arctic white version - INT’L) 999-6900-001W 1/3” CCD Image Device 1.3 Megapixels Picture Elements HD: 1080p, 1080i or 720p @ 59.94;...
-
Page 10: Appendix 3: Communication Specification
ClearVIEW HD-18 Appendix 2: ClearVIEW HD-18 Dimensions Appendix 3: Communication Specification ClearVIEW HD-18 Manual 341-885 Rev. C Page 10 of 14... -
Page 11: Command List
TXD (to RXD of control source) No Flow control The Vaddio ClearVIEW HD-18 Control Protocol is similar, but not identical to the Sony™ NOTE: VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-18 specific commands in the following Command and Inquiry Lists. - Page 12 ClearVIEW HD-18 HD-18 Command List (2/2) Command Set Command Command Packet Comments CAM_Backlight 81 01 04 33 02 FF 81 01 04 33 03 FF CAM_Aperture Reset 81 01 04 02 00 FF 81 01 04 02 02 FF Down 81 01 04 02 03 FF Direct 81 01 04 42 00 00 0p 0q FF...
- Page 13 ClearVIEW HD-18 HD-18 Inquiry List (1/1) Inquiry Command Command Command Packet Comments CAM_PowerInq 81 09 04 00 FF y0 50 02 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 81 09 04 47 FF y0 50 0p 0q 0r 0s FF pqr: Zoom Position CAM_WBModeInq 81 09 04 35 FF...
- Page 14 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2010 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ProductionVIEW, ClearVIEW, EZCamera, ControlVIEW and PowerRite are registered trademarks of Vaddio.
