V
™ P
ADDIO

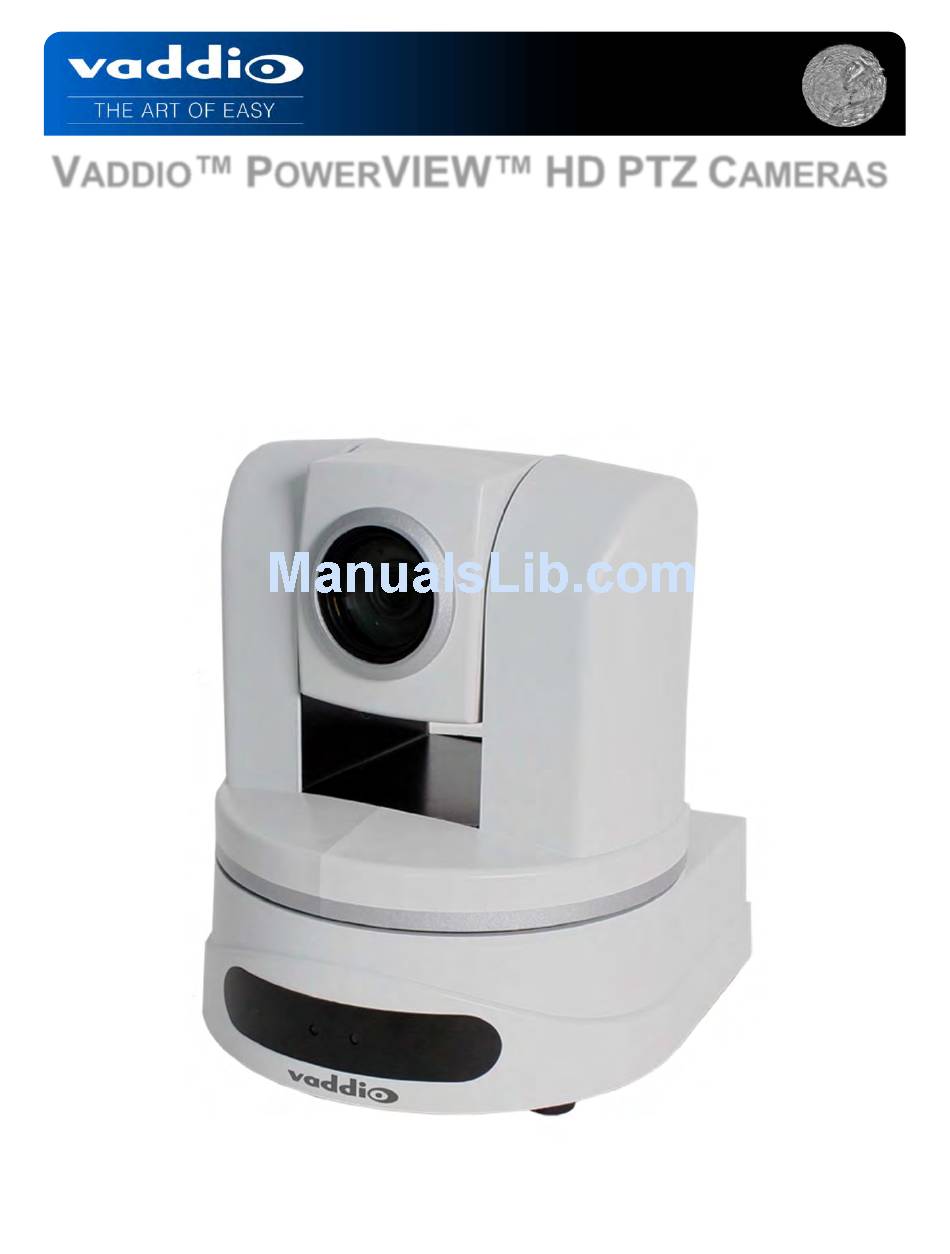

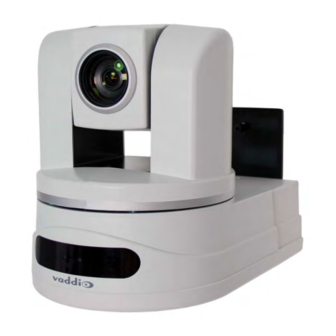

PowerVIEW HD-22 High Definition PTZ Camera
Model Number 999-6960-000 (North America)
Model Number 999-6960-001 (International)
PowerVIEW HD-30 High Definition PTZ Camera
Model Number 999-6970-000 (North America)
Model Number 999-6970-001 (International)
© 2013 Vaddio - All Rights Reserved. PowerVIEW HD-22 & HD-30 Cameras - Document Number 342-0626 Rev A
VIEW™ HD PTZ C
OWER
Installation and User Guide
(22X Optical Zoom)
(30X Optical Zoom)
AMERAS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADDIO PowerVIEW HD-22
Summary of Contents for VADDIO PowerVIEW HD-22
- Page 1 Model Number 999-6960-001 (International) PowerVIEW HD-30 High Definition PTZ Camera (30X Optical Zoom) Model Number 999-6970-000 (North America) Model Number 999-6970-001 (International) © 2013 Vaddio - All Rights Reserved. PowerVIEW HD-22 & HD-30 Cameras - Document Number 342-0626 Rev A...
-
Page 2: Table Of Contents
Image: Basic Connectivity Example of the HD-22 & HD-30 ................8 Installation Basics: ..............................8 Compliance and CE Declaration of Conformity - PowerVIEW HD-22 and HD30 ............. 9 Warranty Information ............................... 10 General Specifications: ............................11 ... -
Page 3: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. -
Page 4: Unpacking
One (1) EZCamera™ Control Adapter (RJ-45 to DB-9) One (1) 12 VDC, 3.0 Amp Power Supply One (1) Euro Power Cable One (1) UK Power Cable Documentation PowerVIEW HD-22 and HD-30 HD PTZ Cameras Document Number 342-0626 Rev A Page 4 of 16... -
Page 5: Front View With Feature Call-Outs
A red tally light is illuminated when the camera receives a command from an external control system. 3) IR Sensors: IR sensors are built into the front of the PowerVIEW HD-22/30 to receive IR signals from the IR remote control supplied with the camera. -
Page 6: Rear Panel Connections With Feature Call-Outs
12) Slot for Optional Cards: Optional slot cards can be plugged into the PowerVIEW HD-22 HD camera (the HD-SDI and the EZIM CCU Slot Cards are available). PowerVIEW HD-22 and HD-30 HD PTZ Cameras Document Number 342-0626 Rev A... -
Page 7: First Time Set-Up With The Powerview Hd-22 Or Hd-30
UP WITH THE OWER The PowerVIEW HD-22 and HD-30 were designed to be very easy to use and operate. There is documentation at the back of this manual for pin-outs of the connectors on the PowerVIEW HD-22 camera. Step 1: Using the HD VIDEO SELECT rotary switch and CAMERA SETTINGS dip switches on the back of the camera, set up the camera’s output resolution and functional preferences. -
Page 8: Image: Basic Connectivity Example Of The Hd-22 & Hd-30
For RS-232, use a standard Cat-5 cable (568B termination for RJ-45 connectors) from the RS-232 port on the back of a Vaddio ProductionVIEW camera controller or switcher. If the camera will be connected to a third-party control system (such as AMX or Crestron), a DB-9 to RJ-45 adapter is supplied with the camera for RS-232. -
Page 9: Compliance And Ce Declaration Of Conformity - Powerview Hd-22 And Hd30
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 10: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 11: General Specifications
Moon in Front Page Header: Miranda - Moon of the planet Uranus. 1: YP HD-22/30 C PPENDIX IDEO UT FOR THE AMERA YPbPr Pr GND Y GND Pb GND PowerVIEW HD-22 and HD-30 HD PTZ Cameras Document Number 342-0626 Rev A Page 11 of 16... -
Page 12: Ezcamera Power & Hd Video Rj-45 Connector Pin-Outs
Drawing: PowerVIEW HD-22/30 Dimensions Optional Accessories: Wall Mount 15-pin to Male BNC Output Cables Bracket 440-5600-001 (3 ft.) 440-5600-002 (6 ft.) 535-2020-230 440-5600-003 (7 inch.) PowerVIEW HD-22 and HD-30 HD PTZ Cameras Document Number 342-0626 Rev A Page 12 of 16... -
Page 13: Communication Specification
No Flow control NOTE: The Vaddio PowerVIEW HD-22 and 30Control Protocol is similar, but not identical to, the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-22/30 specific commands in the following Command and Inquiry Lists. -
Page 14: Hd-22/30 Command List (2/2)
**Additional Information: Pan Range: 8044 – 7FBC (-32,700 to +32,700) Tilt Range: E891 – 4C2B (-5,999 to +19,499) Actual Pan/Tilt ranges defined in Inquiry list PowerVIEW HD-22 and HD-30 HD PTZ Cameras Document Number 342-0626 Rev A Page 14 of 16... -
Page 15: Hd-22/30 Inquiry List (1/1)
Off p: Manual AGC Gain(0-0x0e)*** ***Manual AGC Gain: 0:0dB, 1:3dB, 2:6dB, 3:9dB, 4:12dB, 5:15dB, 6:18dB, 7:21dB, 8:24dB, 9:27dB, 10:30dB, 11:33dB, 12:36dB, 13:39dB & 14:42dB PowerVIEW HD-22 and HD-30 HD PTZ Cameras Document Number 342-0626 Rev A Page 15 of 16... - Page 16 ©2013 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, PowerVIEW, ProductionVIEW, WallVIEW, EZCamera, Quick-Connect and HSDS are trademarks of Vaddio. All other trademarks are property of their respective owners.
