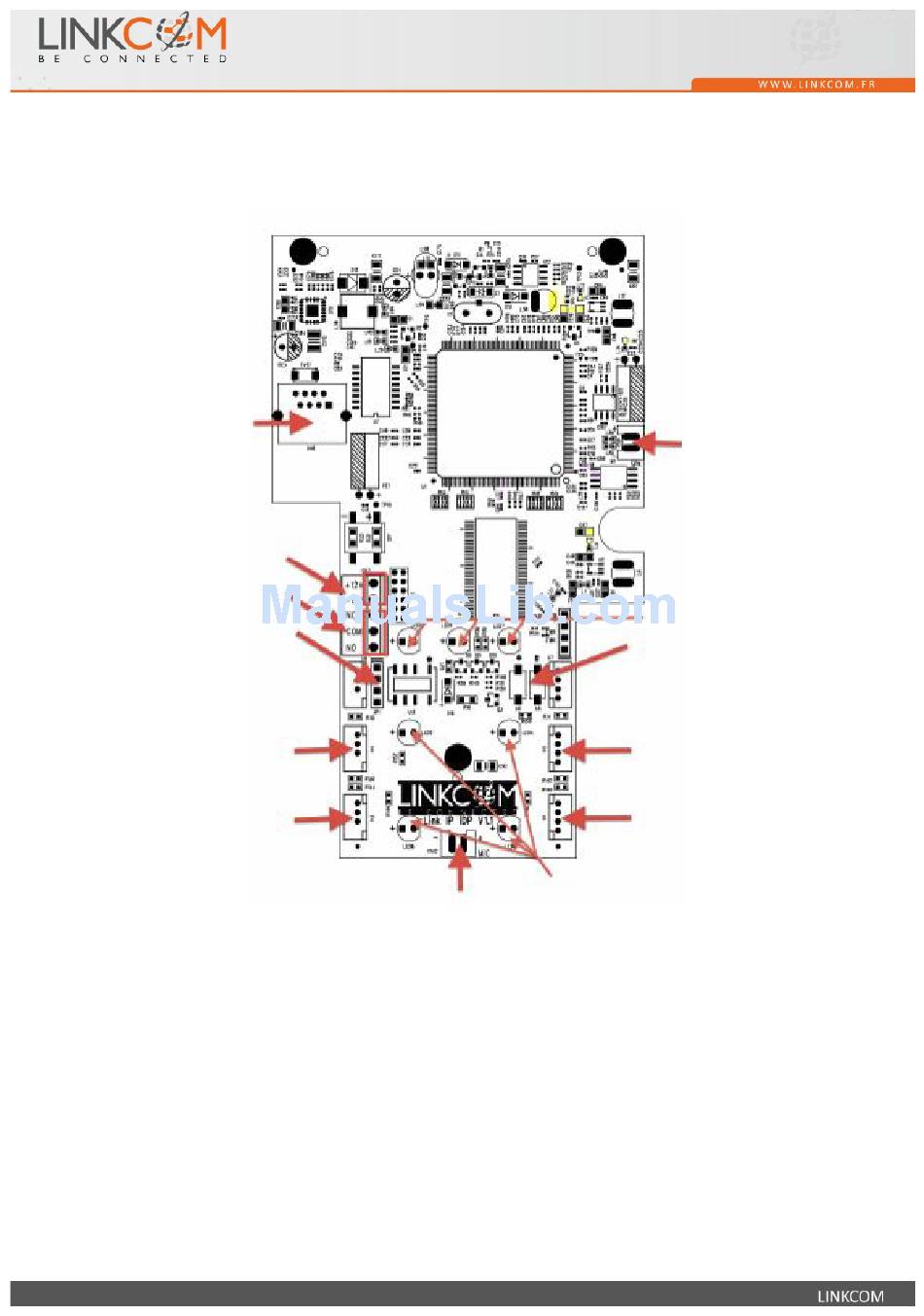

3. Description of components
LAN port
12V Power supply
« JP1 » jumper :
Relais Mode
Description of Reset and IP buttons:
IP button IP (#) : Used to determine the IP address of doorphone. Press the button during 5 seconds, the
doorphone announces the IP address on the speaker.
Reset button (*) : Press the button during 5 seconds to make a reset factory of doorphone.
Handicapped norm LED : indicate the status of doorphone :
Green LED : Ringing.
Blue LED : In call
Red LED : door opening
p.5$|$9$
Relais
Button 4
Button 3
LED for nameplate
Micro
connector
Speaker
connector
Disabled norm
LED
Reset and IP button
Button 2
Button 1
