Summary of Contents for Pro-Line Boats 26 Super Sport

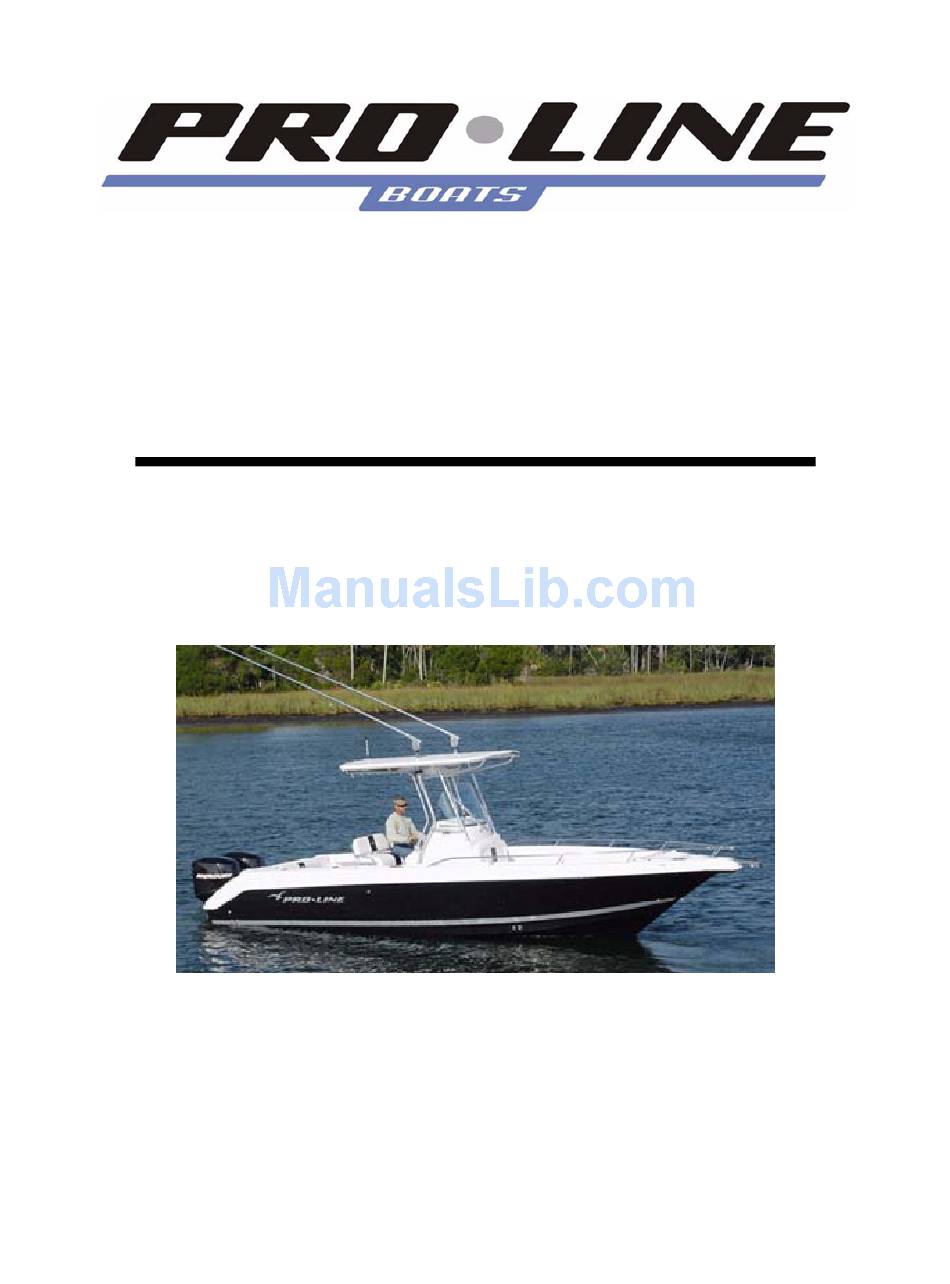

- Page 1 2006 Owner’s Manual 26 Super Sport Specifications subject to change without notice. Actual boats may vary from drawings and/or photos. Copyright 2005 Pro-Line Boats Inc., PO Box 1348, Crystal River, FL 34423 All rights reserved. December 23, 2005...
-
Page 3: Table Of Contents
Table of Contents Page Introduction Specifications ............Owner’s Package . - Page 4 Page Lighting Systems ........... . . Baitwell Light .
- Page 5 Page Dive Platform - Integrated w/Ladder ....... . . Cockpit / Deck Drains ..........Drain Plug .
- Page 6 Page Appendix Helpful Check Lists ........... Each Time You Go On A Boat Trip .
-
Page 7: Introduction
Introduction Congratulations on the purchase of your new Pro-Line Boats 26 Super Sport sport fishing boat. Welcome into the proud family of satisfied Pro-Line owners. Every expedition lets you enjoy the outstanding features designed into every boat we construct. Your new Pro-Line is more than just a boat, it's a whole new lifestyle. -
Page 8: Dealer Responsibilities
• Read and understand the limited warranty. Sign the warranty registration card and mail it to Pro-Line Boats. • Contact your local Pro-Line dealer for assistance with any warrantable repairs. -
Page 9: Yacht Certification
The Pro-Line Boats Limited Warranty is attached to the warranty card. After signing the warranty card, your dealer will provide you with your copy of the warranty and mail the warranty card to Pro-Line Boats, Inc. A copy of the Pro-Line Boats Limited Warranty is also included in this chapter. - Page 10 The Ten Year Limited Hull Structural Warranty is transferable to subsequent owners for a nominal fee. Please contact your dealer or Pro-Line Boats to obtain the applicable transfer form so that the new owner will have piece of mind knowing that their pre-owned boat comes with the same structural hull warranty...
-
Page 12: Safety
Safety Your Pro-Line boat has been constructed with safety in mind. But, remember, boating safety and the safety of your passengers is YOUR ultimate responsibility. You should fully understand the operations of your vessel as well as the basics in boating safety. Your local U.S. -
Page 13: Where Co May Accumulate
• Contact medical help. If the victim is not breathing, perform rescue breathing or approved cardiopulmonary resuscitation (CPR), as appropriate, until medical help arrives. Prompt action can mean the difference between life and death. • Shut off potential sources of CO, if possible. Correct ventilation problems and/or repair exhaust problems as appropriate. -
Page 14: Fire
• Know where and how CO may accumulate in and around your boat. • Maintain fresh air circulation throughout the boat at all times. Run exhaust blowers whenever the generator is operating. • Know where your engine and generator exhaust outlets are located and keep everyone away from these areas. -
Page 15: Flooding
• • First aid kit and blankets Anchor and sea anchor with sufficient line • • Mooring lines and fenders Bailing device • • Combination oar/boat hook Tool kit and lubricant • • Spare prop and hardware Spare fasteners, hose clamps and plugs •... -
Page 16: Regulations
Regulations The USCG is the authority of all waterways. Local authorities enforce State Boating Regulations. You are subject to marine traffic laws and "Rules of the Road" for both federal and state waterways. Therefore, you must submit to boarding if requested by the proper authority. There are many publications available from the Coast Guard concerning regulations. -
Page 17: Controls
Ignition – Binnacle, Forward, Neutral and Reverse Gear Operation The binnacle on the 26 Super Sport is located at the console forward of the helm seat. To ensure that the binnacle is working properly, shift the binnacle forward to put the engine in forward gear. Make sure the engine shifts smoothly into idle with no grinding of the gears. -
Page 18: Shift / Throttle / Trim
Shift / Throttle / Trim Your Pro-Line can be ordered with different shift/throttle systems based upon motor type. Refer to the owner's packet to find the manual pertaining to your particular installation. Each motor has an individual tilt/trim switch located on the port throttle lever. Separate shift and throttle controls are available for each outboard motor. -
Page 19: Steering
Air in the steering system. To properly check the steering system on the 26 Super Sport, start by turning the steering wheel port to starboard. If the engine does not respond the same time as the steering wheel is being turned, this means that there is air in the steering system and the steering system needs re-bleeding. -
Page 20: Windlass (Optional)
and check to see if the opposite trim tab goes down. For example if the starboard trim tab switch is being pressed down, the port trim tab should be going down. Repeat the same process for the opposite side. While underway and in open water, clear of other boaters, depress the top half of the switches in half- second increments to achieve the desired degree of trim. - Page 21 To operate the windlass, press the windlass toggle switch to the down position to release the anchor and line. After dropping the anchor, be sure to tie the line off at one of the cleats. If you do not tie off at a cleat, the constant pull against the line could cause the windlass motor to fail.
-
Page 22: Systems And Accessories
Circuit Breakers Circuit breakers and/or fuses protect the wiring on your 26 Super Sport. In the event a device stops working, check to see if the circuit breaker is tripped or if the fuse is blown. Breakers are installed in the following locations: •... -
Page 23: Switch And Breaker Panel
returning a breaker switch to the on position. If the breaker does not reset or if it resets and then trips again after the device is turned back on, then a short circuit exists or your device may be damaged, overloaded, or faulty. - Page 24 4, 5 Forward Bilge and Aft Bilge - Your 26 Super Sport is equipped with forward and aft bilge pumps with automatic float switches. The 500-gph forward bilge pump is located in the center of the boat and is accessible via the aft wall panel in the head area. The 1500 gph aft bilge pump is located in the bilge and is accessible via the bilge hatch.
-
Page 25: Lighting Systems
Washdown Pump – To activate the washdown pump, which is located on top of the starboard aft stringer, depress the switch to the up or forward position. The washdown pump draws its water from the same seacock that the baitwell pump draws its water. To turn the pump off, depress the switch in the down position. -
Page 26: Navigation Lights & Anchor/All Around Lights
Navigation and Anchor/All Around Lights The navigation and anchor/all around lights are required to be used for operation at night or under low visibility conditions to indicate your position to other boaters. Visually verify the operation of your navigation and anchor/all around lights and verify that the lights are free from obstructions. You should check your navigation lights monthly during optimum visibility conditions. -
Page 27: Instrumentation
Light Instrumentation Compass The Compass on the 26 Super Sport is located on the dash on top of the console. To ensure that the compass light is working properly, press the Nav. Lts. switch in the forward position to turn on the red LED light inside the compass. - Page 28 package includes digital gauges provided by the engine manufacturer (i.e., Mercury SmartCraft, Honda, Yamaha, etc.), the gauges will light up only when the engine is on. Note: For boats rigged with analog gauges, the gauge configuration may include individual gauges for the temperature, trim, volts and fuel gauges or a multifunction gauge that includes multiple functions.
-
Page 29: Fresh Water System
If the fuel gauge is not reading correctly, we recommend that you have the fuel sender checked by a qualified service professional before considering changing out the gauge. For more information, please refer to the Fuel/Oil Systems section of this manual. For specific information related to your gauges, refer to the materials in your owner’s package that was provided by the gauge manufacturer. -
Page 30: Fresh Water W/Pull Out Shower At Transom
Check with your local authorities, Coast Guard, local marina or your dealer for the rules and/or laws that may apply specifically in your area. Console w/Enclosed Head (Porta-Potti) A porta-potti with a 2.8-gallon holding tank comes standard with the 26 Super Sport. To operate the porta-potti system: •... -
Page 31: Head W/Dockside Discharge
Head with Dockside Discharge (Optional) This optional head system includes the same type of porta-potti described above but it has a 5.2-gallon holding tank. Follow the same instructions as shown above to operate the porta-potti system. To utilize the dockside discharge feature, first locate the waste outlet. It is a stainless steel fitting, labeled waste and it is located amidships on the port gunwale. -
Page 32: Washdown Pump
Even when the baitwell pump is turned off, if the seacock is open, the baitwell tub will continue to fill with water while you are underway. Optional Leaning Post Baitwell – One of the optional helm seats includes a 25-gallon baitwell tub that is plumbed to the existing baitwell pump. -
Page 33: Fish Boxes With Macerator Pump
Forward bilge pump and float switch are installed behind the aft head wall Aft bilge pump and float switch are located in the aft bilge area Second, turn the bilge pump off at the instrument panel and check the bilge pump float switch. Each pump is equipped with an automatic float switch (white box) that is mounted next to the bilge pump. -
Page 34: Fuel Tank
Note: Never pump fuel into any fitting, opening or access on the boat unless it is labeled “Gas” or “Fuel”. Fuel Tank The 160-gallon fuel tank on your Pro-Line is constructed of heavy gauge aluminum with internal baffling to minimize sloshing. The fuel tank is located under the deck and is secured between the stringers and bulkheads. -
Page 35: Primer Bulbs
Please refer to the owner’s manual provided by your engine manufacturer for proper procedures. Some engines will not have a separate fuel water separator located in the bilge. Instead it will be located on the engine itself. Check engine specs. Primer Bulbs There is a primer bulb installed for each engine and it is used to prime the fuel pump in the motor with fuel. -
Page 36: Am/Fm Stereo With Cd Player, Speakers (Optional)
XM unit for operational procedures and for information related to the care and maintenance of their product. Seating The 26 Super Sport has seating at the helm, transom and forward of the console. Aluminum Leaning Post Forward Console Seat Folding Rear Bench w/Backrest, Rod Holders, &... -
Page 37: Windshield
In addition, there is the availability of a wide variety of seating options at the helm that includes: • Double drop out seat w/cooler • Dual command seat w/cooler • Leaning post baitwell w/storage • Leaning post backrest (requires selection of the optional leaning post w/baitwell) Windshield The windshield assembly is constructed of powder coated aluminum and tempered glass. -
Page 38: Hatches And Latches
• Two casting deck storage boxes that can be used for wet/dry storage. • Wet/dry storage compartment aft of the casting deck. • Storage compartment under the forward console seat. • Storage shelf installed in the head area. Hatches and Latches Fiberglass Deck Hatches - The fiberglass deck hatches are strong, durable and can easily withstand the weight of passengers and gear;... - Page 39 Access Hatch Locations Release the latch on the Anchor Locker top forward edge of the console for acess to the backside of the console &/or dash panel Drain Fittings for Casting Deck Casting Deck Storage Boxes Storage Boxes Wet/Dry Storage in floor below the hatch installed in front of the forward console Fuel Fill Hose...
-
Page 40: Hardware
Hardware Cleats Your boat is equipped with 1 standard and 6 pop-up cleats. They are installed to provide areas to permit you to tie off the boat at dockside, tie off to another boat that is anchored, secure bumpers/fenders, and/or tie off the anchor (when dropped) to prevent the line from pulling on the windlass (optional), etc. You should never use the cleats for towing another boat or skier. -
Page 41: Cockpit / Deck Drains
Cockpit / Deck Drains There are three (3) cockpit/deck drains in the aft area of the cockpit that allow excess water in the cockpit to drain overboard via thru hulls on each side of the boat. To ensure that there is no blockage in any of the hoses connected to the drains, it is recommended that you occasionally run water through each of the cockpit drains and visually inspect the thru hulls to verify that... -
Page 42: Thru Hull Locations
Thru Hull Locations Port Side Port Forward Fish Box Drain in Lip of Forward Bilge Hatch Fish Box Macerator Pump Port Aft and Center Deck Drains Starboard Side Fuel Vent Bilge Pump Anchor Locker Baitwell Tub Starboard Deck Drain Drain Console Starboard Storage Seat... -
Page 43: Bimini Top
Bimini Top A Bimini top is standard with the 26 Super Sport. The frame is made of anodized aluminum and the Bimini canvas top is made of high quality Sunbrella canvas. Please see the Service and Care section of this manual for cleaning and care recommendations. -
Page 44: Operation & Performance
Operation and Performance Trim / Tilt The power trim system allows the operator to raise and lower the motors throughout an infinite number of settings between its upper and lower limits. There is a trim setting that will yield maximum speed, stability or maneuverability for every throttle setting. Refer to your engine manual for specific questions regarding the trim and tilt. -
Page 45: Propellers
Propellers If your Pro-Line was ordered with a factory installed engine, it will have a propeller that has been performance tested to provide the best all-round performance for your engine/hull combination at sea level. In some situations, it may be desirable to re-prop your Pro-Line to enhance the desired performance needs for your area. -
Page 46: Fueling
• Check for fuel, oil and water leaks. If any leaks are found, shut down the engines and make the necessary repairs before continuing on with your voyage. • Follow the break-in procedures as recommended by the engine manufacturer for your engines. -
Page 47: Service And Care
Service and Care To enjoy trouble free use of your Pro-Line, follow the recommended procedures and instructions relating to the service and care of your boat. Failure to follow proper maintenance practices will result in shorter life of your equipment and may void your warranty. Much of the installed equipment on your Pro-Line is warranted separately. -
Page 48: Graphics
This is done so that the epoxy coat will properly adhere to the hull, and when done correctly, will not void the hull warranty. Pro-Line Boats does not recommend using an etching primer in lieu of sanding the bottom. -
Page 49: Fuel Water Separators
Fuel Water Separators If fuel water separators are installed on your boat, the “spin on” filter cartridges should be renewed every season at a minimum. Fuel tanks that are not kept full accumulate water faster due to condensation. Therefore, filter cartridges may need to be replaced more often depending upon usage and conditions or if motors begin to run rough. -
Page 50: Stainless Steel
Stainless Steel Stainless steel is used for bow rails and deck fittings on your Pro-Line. Stainless steel is not completely free from corrosion attack. It is NOT stain or rust proof. When used in contact with chloride salts, sulfides or other rusting metals, stainless will discolor, rust or even corrode. The degree of surface oxidation is directly affected by local atmosphere and saltwater concentrations. -
Page 51: Tackle Box
Tackle Box Clean the tackle box trays and storage area using a soft cloth, warm water and a mild detergent. Windshield Care Instructions - Regular cleaning with fresh water and a soft cloth will keep and protect your windshield, window or hatch for years. •... -
Page 52: Vinyl
• Four ounces (half cup) of chlorine bleach. • Two ounces (one-fourth cup) of mild soap. • One gallon of water. • Clean with soft bristle brush. • Allow mixture to soak for up to 20 minutes. • Rinse thoroughly. •... -
Page 53: Resealing
• To prevent mold and mildew, use an absorbing product such as DampRid according to the manufacturer’s directions. An alternative and inexpensive option is to fill egg cartons with charcoal briquettes that have not been pre-treated with lighter fluid. • Remove batteries and protect them from freezing. - Page 54 plastics. Flitz is available at many marine supply stores, marinas and at Home Depot. For more information on this product, contact the manufacturer at: Flitz International Ltd., Waterford, WI 53185, 800-558-8611 Woody Wax Can be used on a variety of surfaces such as: •...
-
Page 55: Appendix
Appendix Helpful Checklists Print and use these checklists, and do not operate your boat without doing the following: Each Time You Go On A Boat Trip Make sure you know where CO exhaust outlets are located on your vessel. Educate all passengers about the symptoms of CO poisoning and where CO may accumulate. -
Page 56: Boat Identification Information
Boat Identification Information Owner: Home Port: Dealer: Boat Name: Registration Number: Hull ID Number: Boat Model: LOA: Beam: Draft: Vertical Clearance: Hull: Deck: Interior: Warranty Registration Date: Fuel Capacity (Gallons): Ignition Key #: Cabin/Head Door Key #: Other Key #: Radio Call Letters: Bat.: Engine Make:... -
Page 57: Trouble Shooting Chart
Trouble Shooting Chart PROBLEM: POSSIBLE CAUSE Poor speed or fuel Wrong propeller for load or conditions. economy: Trim is in too far. Load is too far forward or too heavy. Boat has taken on water. Marine growth on hull. Line or anchor is dragging. Fuel is stale or partially blocked.
