LP600 LOW-PROFILE

WHEEL LOAD SCALE

User Manual

Intercomp Co.

Main Office: 763-476-2531

3839 County Road 116

www.intercompcompany.com

Toll Free: 1-800-328-3336

Medina, MN 55340 U.S.A.

Fax:

763-476-2613

Table of Contents

Troubleshooting

Need help?

Do you have a question about the LP600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intercomp LP600

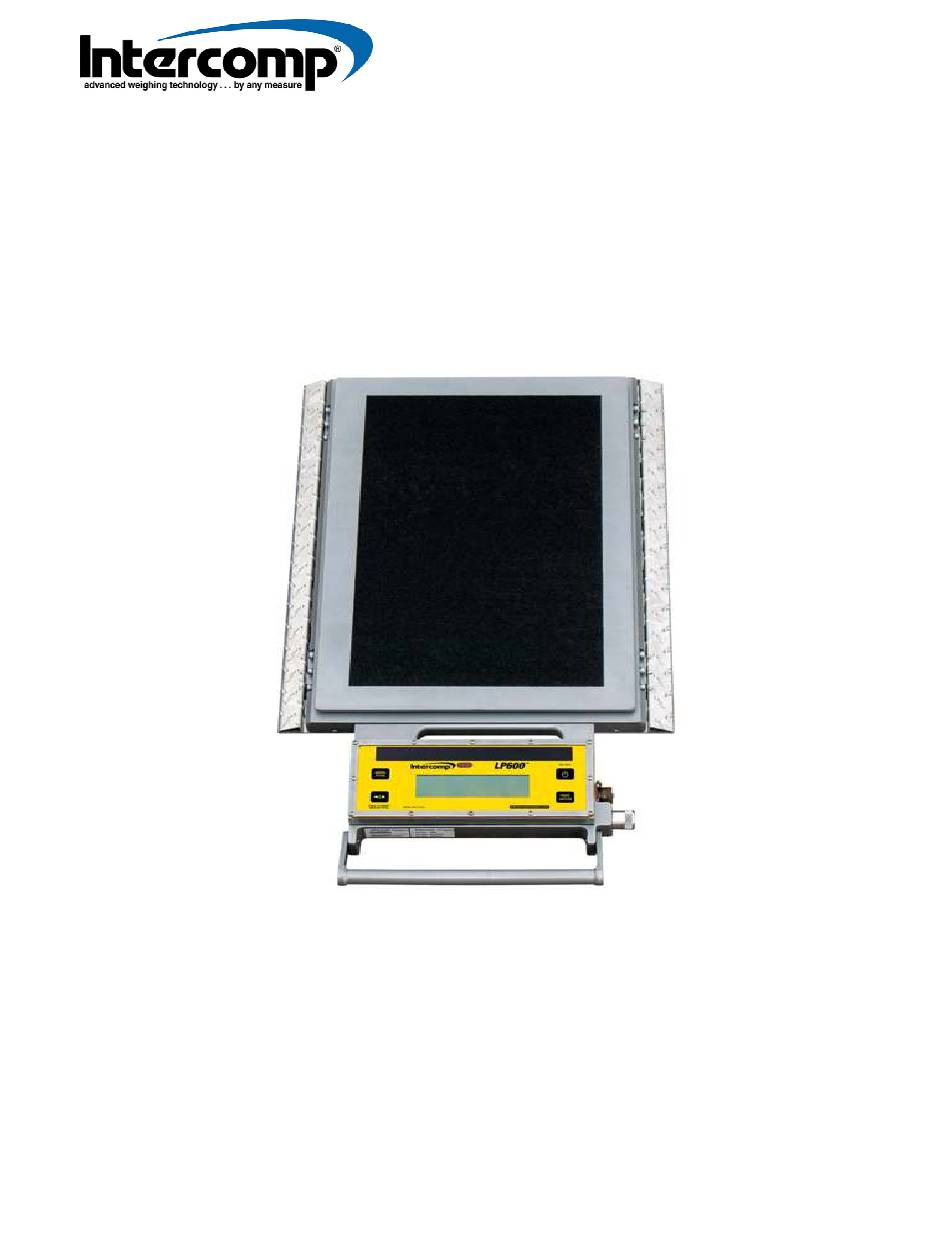

Page 1 LP600 LOW-PROFILE WHEEL LOAD SCALE User Manual Intercomp Co. Main Office: 763-476-2531 3839 County Road 116 www.intercompcompany.com Toll Free: 1-800-328-3336 Medina, MN 55340 U.S.A. Fax: 763-476-2613...
Page 2: Table Of Contents
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 TABLE OF CONTENTS DECLARATION OF CONFORMITY ......................5 INTRODUCTION ............................7 SPECIFICATIONS ............................8 CONTROLS .............................. 8 ELECTRICAL ............................8 PERFORMANCE ............................9 ENVIRONMENTAL ........................... 9 PHYSICAL ..............................9 SCALE OVERVIEW ............................
Page 3 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 TROUBLESHOOTING TABLE ....................... 53 CALIBRATION STEP CODES ........................ 55 DIAGNOSTIC TESTS ..........................56 CHARGER VOLTAGE ........................56 LAMP ..............................56 BUTTONS ............................56 POWER DOWN SHUTOFF ....................... 57 LOAD CELLS ............................. 57 MAINTENANCE ............................
Page 4 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 This document is the property of Intercomp Co. and contains information that is confidential and protected under federal and/or state trade secret, unfair competition and copyright law. Any reproduction, use or disclosure without written permission from Intercomp Co.
Page 5: Declaration Of Conformity
3839 County Road 116 Medina, Minnesota 55340 USA Declare under the sole responsibility of Intercomp Company that the LP600 Wheel Load Scale to which this declaration relates is in conformity with the relevant Union harmonization legislation, and meets the essential health and safety requirements, and is in conformity with the relevant EC Directives listed below using the relevant section of the following standards and other normative documents.
Page 6 The related technical construction files are held for inspection in the U.K. at Intercomp Europe Limited. Signed for and on the behalf of Intercomp Company...
Page 7: Introduction
LP600 Low-Profile Wheel Load Scale. WARRANTY The LP600 Low-Profile Wheel Load Scale is covered by a one-year warranty and should be referred to the factory for maintenance within the warranty period. Attempts to make repairs within the warranty period may invalidate the warranty. If repairs are needed after the warranty period, only qualified technicians should attempt such repairs.
Page 8: Specifications
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 SPECIFICATIONS CONTROLS CONTROL PANEL BUTTONS ON / OFF LOCAL / TOTAL ZERO PRINT / ACCUMULATE LCD INDICATORS LOCAL WEIGHT TOTAL WEIGHT ACCUMULATED TOTAL WEIGHT DISPLAY SCREEN 5 1/2 Digit, 1 inch (25 mm) Liquid Crystal Display (LCD). Automatic Back Lighting...
Page 9: Performance
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 SPECIFICATIONS PERFORMANCE FUNCTION SPECIFICATION Speed 4 display updates per second Accuracy ± 1% of reading or ± display graduation, whichever is greater Calibration Interval Twelve months recommended ENVIRONMENTAL FUNCTION...
Page 10 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 SPECIFICATIONS RADIO FUNCTION SPECIFICATION Radio Frequency ISM 2.4GHz, 802.15.4 DSSS* License Requirements None. Pre-approved US/FCC, CAN/IC, EUR/CE Range 200 ft / 60m indoor, 300 ft / 90m line of sight...
Page 11: Scale Overview
SCALE OVERVIEW SYSTEM OVERVIEW The LP600 Low-Profile Scale is comprised of the active weighing platform and control panel. The Control Panel, located at the front of the scale houses the system electronics, LCD display screen and a solar panel for powering the scale.
Page 12: Display Description
7005056 Rev J, August 2023 SCALE OVERVIEW DISPLAY DESCRIPTION The LP600 control panel uses a Liquid Crystal Display (LCD) unit (shown below) providing one line of 5 1/2 digits. The screen displays the weight read from the scale. Other information displayed...
Page 13: Control Panel Functions
To turn the scale off, press the ON/OFF button. The LP600 retains the setup information and calibration in a special memory device (non-volatile memory) that is not affected by power loss or battery condition.
Page 14: Scale Operation
LOCAL / TOTAL The LOCAL/TOTAL function is used when the LP600 is cabled directly to the scales and not connected to a central CPU or indicator. The Local Weight refers to the weight on a specific scale.
Page 15: Zero
The ZERO function can also be used when a non-zero value is displayed with no weight on the scale. ATTENTION: The LP600 scale has an integrated Auto Zero Tracking (AZT) feature that corrects for slight zero changes that may occur during normal operation.
Page 16: Totalizing Setup
(LOCAL) and the total weight of all scales connected in the system (TOTAL). The LP600 scale must be setup correctly to communicate with other scales in the system. If the system is not setup correctly, an error icon and the message t0t will be displayed when attempting to view the total weight.
Page 17 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 TOTALIZING SETUP Totalizing Setup (continued) 4. If the scale is assigned number 1, a prompt will be displayed confirming the scale designation Press PRINT/ACCUMULATE button. HOSt. LOCAL/TOTAL button or the ZERO button to toggle either the yes or setting.
Page 18: Serial Output Setup
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 SERIAL OUTPUT SETUP There are four different serial output modes available for LP600. The Serial Output Setup feature is typically not required for a standard LP600 scale system. SERIAL OUTPUT MODES...
Page 19: On-Demand
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 SERIAL OUTPUT SETUP ON-DEMAND When the scale is set in the On-Demand mode, the weight is transmitted each time the PRINT/ACCUMULATE button is pressed. Press the PRINT/ACCUMULATE button to print either the local or total weight (depending on the local/total setting of the scale).
Page 20: Accumulated Total
7005056 Rev J, August 2023 ACCUMULATED TOTAL The LP600 scale can be used as a standalone unit, arranged in pairs, or configured in groups to measure a support load or the total weight across all of the scales connected to the system in one weighing procedure. The Accumulated Total feature accumulates the weights as each individual load is weighed.
Page 21 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 ACCUMULATED TOTAL Accumulating Print Axle (continued) When a successful accumulation has occurred, press the LOCAL/TOTAL button to toggle the display through the current local weight, current total weight, accumulated total, and the number of accumulations that comprise the total weight.
Page 22: Accumulating Print Standard
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 ACCUMULATED TOTAL ACCUMULATING PRINT STANDARD The ACCUMULATING PRINT STANDARD mode will display the total weight of multiple items weighed on one or more scales. The following example depicts a 1-scale system with three separate loads (950 lb, 1000 lb and 1500 lb) being weighed and accumulated.
Page 23: Accumulating Procedure
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 ACCUMULATED TOTAL Accumulating Print Standard (continued) The accumulated total weight can only be viewed on the designated scale. Press the PRINT/ACCUMULATE button and the screen will display the message Ac. x as the system accumulates the next reading and sends it to print (x denotes the number of accumulations for the session).
Page 24 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 ACCUMULATED TOTAL Accumulating Procedure (continued) 5. When finished weighing, the accumulated total weight can be cleared by pressing the ZERO button until the screen displays the message CLr.t.The display will clear the accumulated total and the number of accumulations.
Page 25: Weighing Procedures
7005056 Rev J, August 2023 WEIGHING PROCEDURES The LP600 scale can be used as a standalone unit, arranged in pairs, or configured in groups to measure a support load or the total weight across all of the scales connected to the system in one weighing procedure.
Page 26: Mode Menu
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 MODE MENU MODE MENU To access the MODE Menu, press the PRINT/ACCUMULATE button and ZERO button simultaneously. The screen will display the message b.LitE. If the message b.LitE is not displayed, verify the Calibration Enable Jumper is in the RUN position (refer to the Calibration Enable Jumper section).
Page 27: Mode Menu Settings
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 MENU MODE MENU SETTINGS 1. Press the PRINT/ACCUMULATE button and ZERO button simultaneously. The screen will display the message b.LitE. Press the PRINT/ACCUMULATE button. The current Backlight setting is displayed. Press the ZERO button or the LOCAL/TOTAL button to toggle between AUTO, ON and OFF.
Page 28: Print Mode
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 MENU MODE Menu Settings (continued) 6. The screen will display A.tHrS. Press the PRINT/ACCUMULATE button. The current Average Threshold setting is displayed. The setting enables the Dynamic Averaging function, which can improve the settling time of a large Average Rate. If the scale detects a large weight change, it will temporarily suspend averaging, jump to the new weight, and resume averaging.
Page 29 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 MENU MODE Menu Settings (continued) 9. The screen will display PbAUd. Press the PRINT/ACCUMULATE button. The current Printer Baud Rate setting is displayed. Use the LOCAL/TOTAL button or the ZERO button to toggle through the available baud rates.
Page 30 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 MENU MODE Menu Settings (continued) 12. The screen will display i.bAud. Press the PRINT/ACCUMULATE button. The current Interface Baud Rate setting is displayed. Two Baud Rate settings available; 9600 and 115200.
Page 31 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 MENU MODE Menu Settings (continued) 17. The screen will display rF.dEF. Press the PRINT/ACCUMULATE button. The screen will display a flashing 0. Two settings are available under the Restore Radio Defaults feature.
Page 32: Calibration
1. The LP600 RFX Wheel Load Scale is calibrated at the factory prior to shipment. 2. Some settings require a number (up to 5 digits) to be entered when the number is displayed with a flashing digit.
Page 33: Tools Required
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Calibration Verification (continued) TOOLS REQUIRED TOOL PART NUMBER DESCRIPTION Force Calibration Press* Rated for scale capacity 17 in ( 0.25 in) x 10 in ( 0.25 in) x...
Page 34 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Calibration Verification (continued) CALIBRATION VERIFICATION PROCEDURES 1. Transport the scales to the calibration site. If there is more than a 5F difference in temperature between the scale temperature and the calibration site, allow the scale to reach room temperature before applying power.
Page 35: Corner Calibration Verification
Corners must be checked if the unit fails the Calibration Verification check. There are six load cells installed under the active weighing surface of the LP600 Platform Scale. Figures 1 and 2 depict the two scale configurations and the load cell locations within each scale configuration.
Page 36 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Calibration Verification (continued) TOOLS REQUIRED TOOL PART NUMBER DESCRIPTION Force Calibration Press* Rated for scale capacity Calibration Puck 111115 3 inch Calibration Puck LP 6 Cell Corner Alignment Fixture 15...
Page 37 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Calibration Verification (continued 2. Insert the Calibration Puck in the first load cell positon. Apply 3000 lbs to the calibration puck. Record the reading. 3. Repeat step #2 for the remaining five load cell positions.
Page 38: Calibration Enable Jumper
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION CALIBRATION ENABLE JUMPER The Calibration Enable (RUN/CAL) Jumper is a safeguard to prevent unauthorized or accidental adjustment of calibration settings. Prior to calibrating the scale, the jumper must be moved to the CAL position. The RUN/CAL jumper is located near the lower right corner of the Main Display circuit board (shown below).
Page 39: Calibration Adjustment
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION CALIBRATION ADJUSTMENT CAUTION: The following procedures must be performed at a Static Controlled Workstation. The control panel electronics may be subject to damage from electrostatic discharge. CAUTION: Avoid direct contact with exposed circuitry. Use cotton gloves or similar protection when working with circuits.
Page 40: Multiple Corner Adjustment
Corner calibration must be checked if the unit fails the calibration verification check. There are 6 load cells located beneath the active weighing surface of the LP600 scale. Figures 4 and 5 depict the load cell positions inside each scale configuration.
Page 41 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Calibration Adjustment (continued) CORNER ADJUSTMENT SETUP FIGURE 6 MULTIPLE CORNER ADJUSTMENT PROCEDURE 1. Press the ON/OFF button to turn the scale ON. 2. Press the PRINT/ACCUMULATE button. The screen should display StEP. If the screen displays LAt, the scale is in Normal mode.
Page 42 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Calibration Adjustment (continued) 5. Press the PRINT/ACCUMULATE button to display the Zero load. Loading blocks are not required for this step. 6. The screen will display LC1-0. Position the rubber pad and corner fixture over the active weighing surface of the scale as referenced in Figure 6.
Page 43: Single Corner Adjustment
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Calibration Adjustment (continued) 17. The screen will display LC6-L. Apply 1/6 of the scale capacity to Load Cell #6. When the load is applied, press the PRINT/ACCUMULATE button.
Page 44: Calibration Menu
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION CALIBRATION MENU Press the PRINT/ACCUMULATE and ZERO buttons simultaneously. The screen will display the message StEP. If the message StEP is not displayed, verify the RUN/CAL jumper is in the CAL position. Press the PRINT/ACCUMULATE button to access the Calibration Menu settings.
Page 45: Calibration Settings
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Calibration Menu (continued) STEP SETTING NOTE DEFAULT Third Weight Enter third weight HH-03 Third Weight Load third weight LL-03 HH-04 Fourth Weight Enter fourth weight Fourth Weight Load fourth weight...
Page 46: Multiple Graduation Break Points
CALIBRATION Calibration Settings (continued) MULTIPLE GRADUATION BREAK POINTS The LP600 scale can be set for multiple graduation break point values. An example of a scale set for three graduation break points is presented below. MULTIPLE GRADUATION BREAK POINTS Grad = Initial graduation equals by 0.1 lb...
Page 47 Selecting a setting of1 will result in a reduced conversion time, but will extend battery life. Intercomp recommends the ADC Rate be set to1. Use the LOCAL/TOTAL button to increment and the ZERO button to decrement the number.
Page 48 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Calibration Settings (continued) 9. The screen displays ZEr0.r. Press the PRINT/ACCUMULATE button. The current ZERO Range setting is displayed. Use the LOCAL/TOTAL button to increment and the ZERO button to decrement the number. The ZERO Range setting is the percentage the zero can move from the original zero obtained at calibration.
Page 49: Weight Calibration
7005056 Rev J, August 2023 CALIBRATION WEIGHT CALIBRATION The LP600 scale employs a 10-Point calibration process. A multiple-point calibration improves weighing performance by removing undesirable characteristics inherent to the load cells. One to ten load weights must be available to conduct a multi-point calibration.
Page 50: Calibration Completion
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 CALIBRATION Weight Calibration (continued) 16. The screen will display LL-02. Apply the second load to the scale. When the second load is applied, press the PRINT/ACCUMULATE button. 17. The screen displays HH-03. Press the PRINT/ACCUMULATE button. The number 00000 is displayed with the right digit flashing.
Page 51: Troubleshooting
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 TROUBLESHOOTING ERROR MESSAGES MESSAGE DEFINITION EEPE EEPROM Failure Calibration Information Lost or Corrupted Calibration information is held in a special permanent memory area. A checksum code is generated and written to the memory during the calibration process. Each time power is turned on, the code is regenerated and compared to the stored value.
Page 52 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 TROUBLESHOOTING Error Messages (continued) MESSAGE DEFINITION Number Cannot be Displayed diSP (example: -99999) Common source of error is pressing the ZERO button with a full load on the scale. When the load is removed, the full number with a minus sign will not fit on the display.
Page 53: Troubleshooting Table
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 TROUBLESHOOTING TROUBLESHOOTING TABLE SYMPTOM No Power Up. Blank Display If power reaches the control panel, the display driver turns on random segments. The display screen is blank. Potential Sources: 1.
Page 54 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 TROUBLESHOOTING Troubleshooting Table (continued) SYMPTOM Bad Weights Check the weighing process. 1. Are there air currents around the vehicle being weighed? 2. Are the operators using dummy pads on wheels not positioned on the scales? 3.
Page 55: Calibration Step Codes
StEP ENTER CAL MODE # AFTER ENTERING in CAL MENU CAL MODE Diagnostic Use Only - Contact Intercomp Service Before Proceeding Advance through normal Calibration Menu Advance to Inclinometer Calibration Advance to Weight Calibration Access Corner Calibration (also set the number of load cell inputs) Access MODE Menu.
Page 56: Diagnostic Tests
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 TROUBLESHOOTING DIAGNOSTIC TESTS CHARGER VOLTAGE CAUTION: When using a meter to measure voltage or current, verify the correct measurement mode (voltage or current) is selected. Pay special attention that the correct polarity is observed when connecting test leads to battery compartment connectors.
Page 57: Power Down Shutoff
4. Reduce the input voltage until the scale turns off. The voltage at shutoff should be between 3.2 and 3.5 Volts. LOAD CELLS The LP600 Scale contains (6) load cells. The load cells are transducers that convert mechanical energy (weight) to electrical energy. Each load cell contains (4) strain gages (700 ) and two temperature compensation Ω...
Page 58 LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 TROUBLESHOOTING Diagnostic Tests (continued) CHECK LOAD CELL ZERO OUTPUT VALUES The signal at the main circuit board with the signal leads in place should be approximately 0.1 millivolts with no load applied to the load cell. If a larger value is detected, it could indicate a defective load cell, wiring or circuit board.
Page 59: Maintenance
7005056 Rev J, August 2023 MAINTENANCE PT CONNECTOR The following diagram depicts the pin-out for the PT connector that is located on the right side of the LP600 control panel. PT CONNECTOR A: RS-485 A B: TXD (RS232) C: - Charging Voltage...
Page 60: Illustrated Parts Breakdown
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 ILLUSTRATED PARTS BREAKDOWN LP600 SCALE ASSEMBLY INDEX PART NUMBER DESCRIPTION LP600 INDICATOR ASSY-SILVER-ADE GEN II 0200355 SOLAR 506584 LP 600 SCALE ASSEMBLY 20K 330158 BATTERY STICK (4) AA NIMH...
Page 61: How To Contact Intercomp Service
LP600 Wheel Load Scale User Manual 7005056 Rev J, August 2023 HOW TO CONTACT INTERCOMP SERVICE Please provide the following information when requesting service for the LP600 Low- Profile Wheel Load Scale. 1. Item Description and Part Number (if available) 2.
