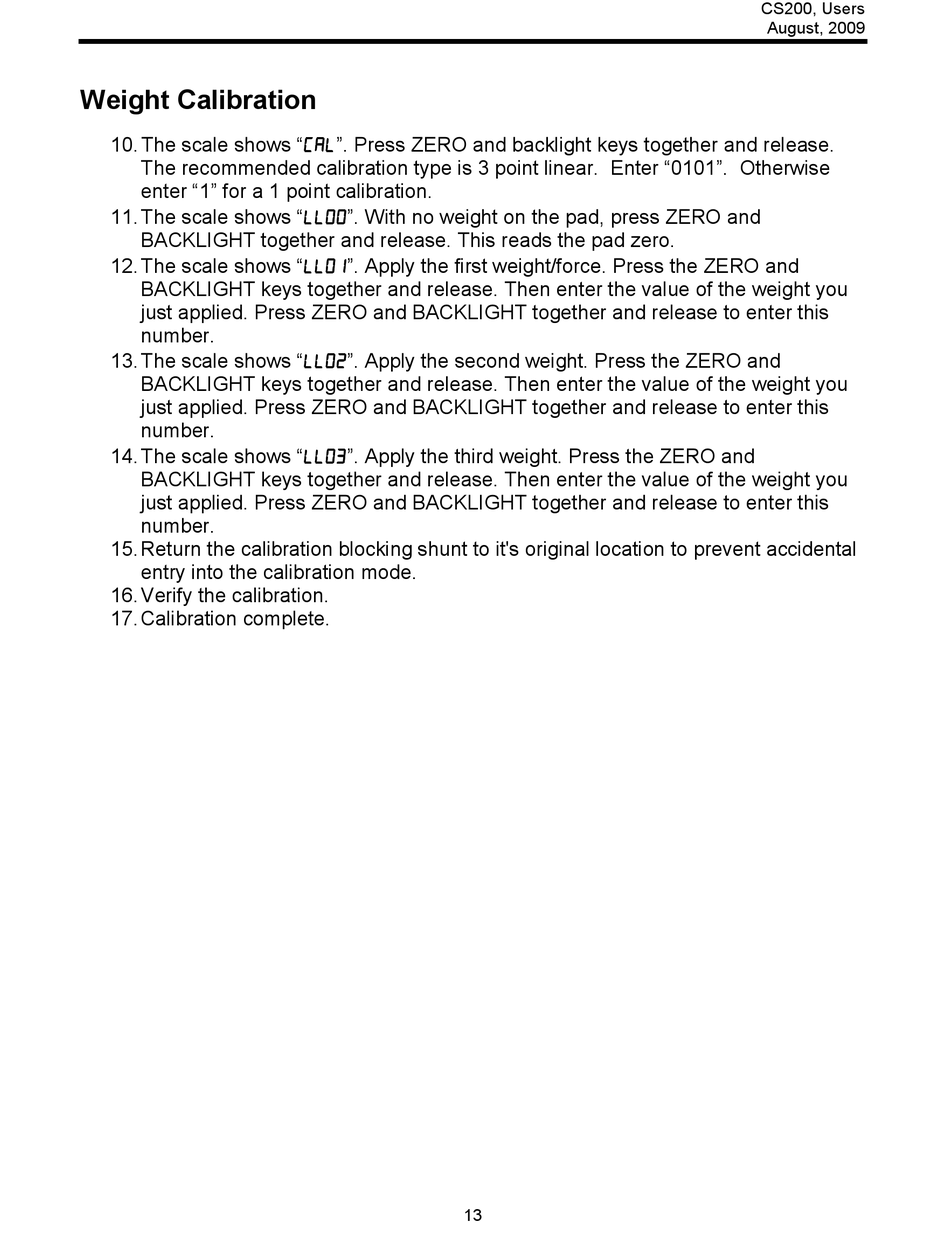

Intercomp CS200 User Manual page 13

Weight Calibration
10. The scale shows "CAL
The recommended calibration type is 3 point linear. Enter "0101". Otherwise
enter "1" for a 1 point calibration.
11. The scale shows "LL00
BACKLIGHT together and release. This reads the pad zero.
12. The scale shows "LL01
BACKLIGHT keys together and release. Then enter the value of the weight you
just applied. Press ZERO and BACKLIGHT together and release to enter this
number.
13. The scale shows "LL02
BACKLIGHT keys together and release. Then enter the value of the weight you
just applied. Press ZERO and BACKLIGHT together and release to enter this
number.
14. The scale shows "LL03
BACKLIGHT keys together and release. Then enter the value of the weight you
just applied. Press ZERO and BACKLIGHT together and release to enter this
number.
15. Return the calibration blocking shunt to it's original location to prevent accidental
entry into the calibration mode.
16. Verify the calibration.
17. Calibration complete.
CAL". Press ZERO and backlight keys together and release.
CAL CAL
LL00". With no weight on the pad, press ZERO and LL00 LL00
LL01". Apply the first weight/force. Press the ZERO and LL01 LL01
LL02". Apply the second weight. Press the ZERO and LL02 LL02
LL03". Apply the third weight. Press the ZERO and
LL03 LL03
