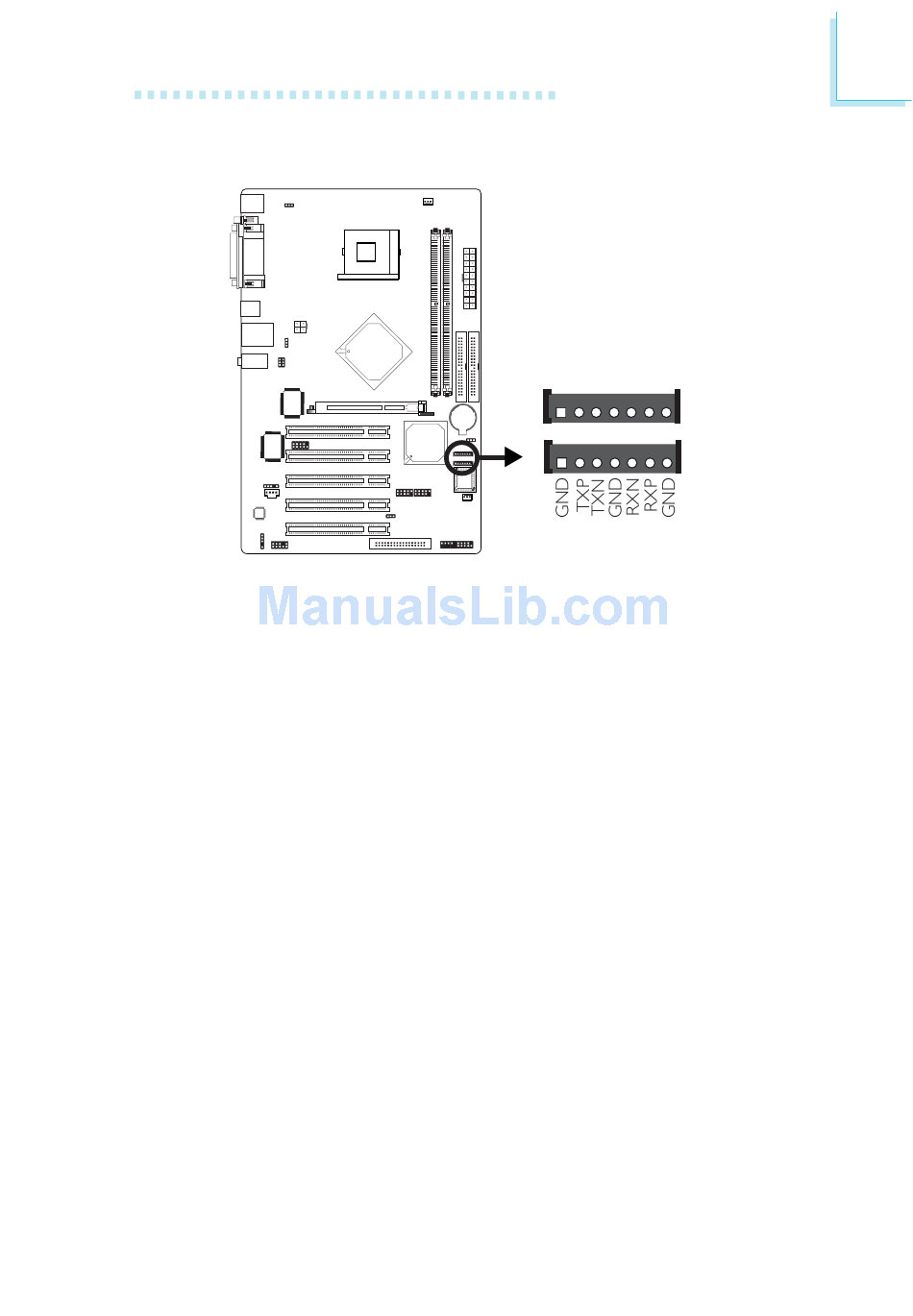

2.6.4 Serial ATA Connectors
The system board is equipped with two Serial ATA connectors for
connecting Serial ATA devices. Connect one end of the Serial ATA
cable to J15 (SATA 1) or J14 (SATA 2) and the other end to your
Serial ATA device.
BIOS Setting
Configure the Serial ATA drives in the Integrated Peripherals
submenu ("OnChip IDE Device" field) of the BIOS. Refer to chapter
3 for more information.
Hardware Installation
1
7
1
7
2
SATA 2
SATA 1
